4.5 Connection to batteries

Please follow below instructions for battery connections:

External Battery Packs shall be installed by SERVICE PERSONNEL only.

Ensure that the UPS is disconnected from mains and loads while connecting the External
Battery Pack.

Use the battery cable that comes with the External Battery Pack to connect the External
Battery Pack to the UPS.

Connect a second battery cabinet to the first one with the cable provided if more than one is
to be installed.

This UPS may be provided with maximum two extension battery packs. (for UL Approval)

4.6 Connection to mains and loads


The following input and output cables come supplied with all models
• For 1000VA model, IEC 320 10 A (Input cable)
• For 2000VA model, IEC 320 10 A (Input cable)
• For 3000VA model, IEC 320 16 A (Input cable)

Connect the input cable to the UPS and connect the other end to a grounded outlet. The
batteries will automatically charge when connected to the mains. Please realize that although
you may start using the UPS immediately, maximum back-up time will still not be available, so
it is recommended to charge the batteries for a minimum of 8 hours before use.

If unit instantly shows "Error 06" for Site Wiring Fault, please rotate the connector (Schuko)

After charging, connect the loads to the UPS (see the example in fig 3).

Do not connect any devices that have the possibility of overloading the UPS or drawing
half-wave rectified current, such as hair dryers or vacuum cleaners.

Should computer or alarm connections be used, use connections according to chapter 5 of the
manual provided with that option. The connections can be referred to on the rear panel.

The installation is now complete.
© All rights reserved. All trademarks are property of their respective owners.

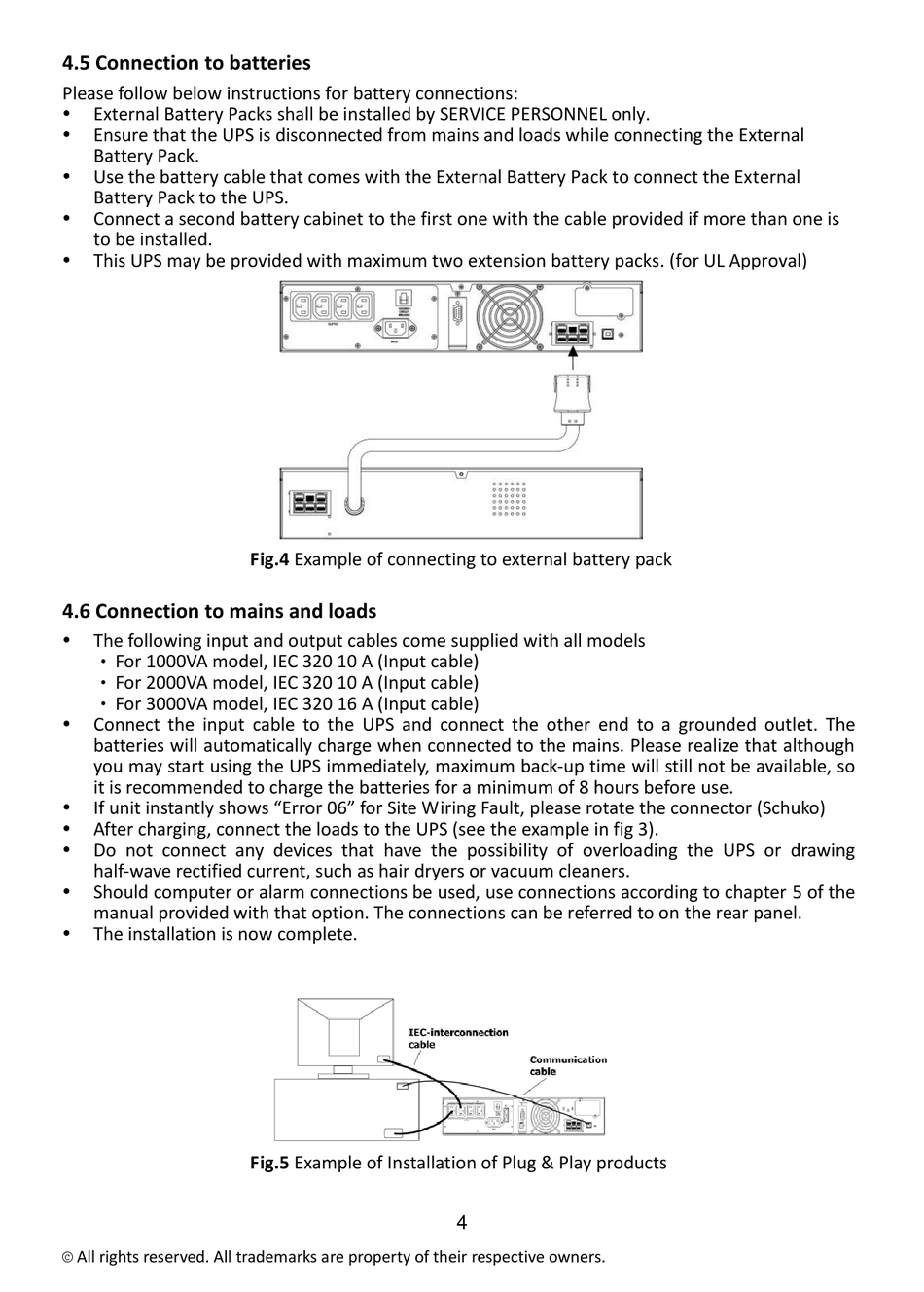

Fig.4 Example of connecting to external battery pack
