Emerson Rosemount MultiVariable FOUNDATION 3051SF Series Quick Start Manual

Emerson Rosemount MultiVariable FOUNDATION 3051SF Series Quick Start Manual

Transmitter and flow meter with fieldbus protocol
Hide thumbs Also See for Rosemount MultiVariable FOUNDATION 3051SF Series:

Advertisement

Quick Links

Download this manual See also: Quick Start Manual

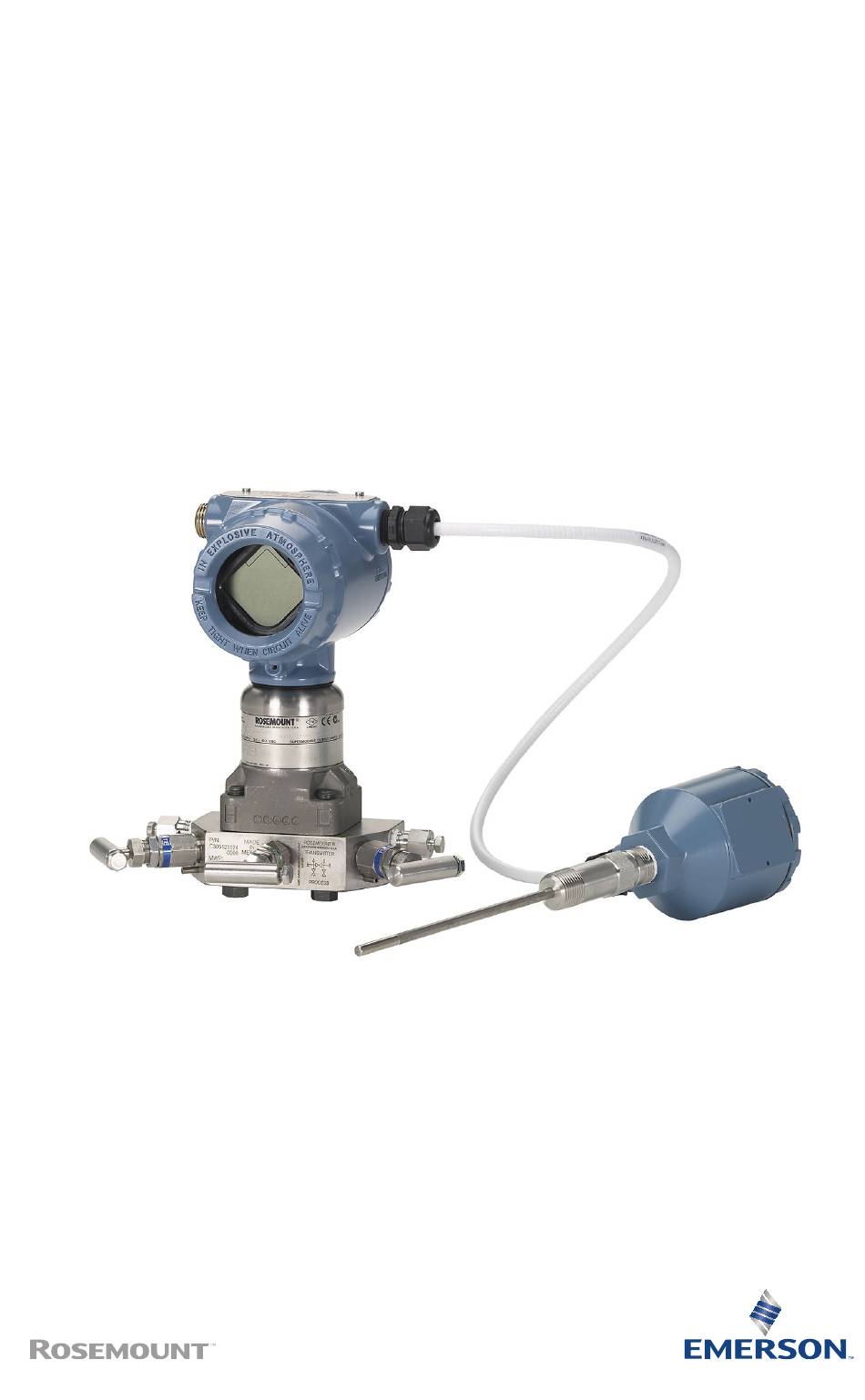

Quick Start Guide
00825-0100-4853, Rev AF
February 2019
™
™
Rosemount
3051S MultiVariable
Transmitter and 3051SF Series Flow
Meter
™
with F
Fieldbus Protocol
OUNDATION

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount MultiVariable FOUNDATION 3051SF Series and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount MultiVariable FOUNDATION 3051SF Series

Summary of Contents for Emerson Rosemount MultiVariable FOUNDATION 3051SF Series

  • Page 1 Quick Start Guide 00825-0100-4853, Rev AF February 2019 ™ ™ Rosemount 3051S MultiVariable Transmitter and 3051SF Series Flow Meter ™ with F Fieldbus Protocol OUNDATION...

  • Page 2: Table Of Contents

    Fieldbus Reference Manual for more OUNDATION instruction.This document is also available electronically on Emerson.com/Rosemount. WARNING Explosions could result in death or serious injury. Installation of device in an explosive environment must be in accordance with appropriate local, national, and international standards, codes, and practices.

  • Page 3: Mount The Transmitter

    February 2019 Quick Start Guide Mount the transmitter Liquid flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward. A.
  • Page 4 Quick Start Guide February 2019 Steam flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. A. Direction of flow Mounting brackets Figure 1-1: Mounting Bracket – Coplanar Flange Panel mount Pipe mount Rosemount 3051SMV...
  • Page 5 Only use bolts ™ supplied with the transmitter or sold by Emerson as spare parts. Figure 1-4 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 6 Table 1-1 . If bolt material is not shown in Table 1-1, contact the local Emerson representative for more information. Use the following bolt installation procedure: Procedure 1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation.
  • Page 7 February 2019 Quick Start Guide 5. Verify the flange bolts are protruding through the sensor module before applying pressure (see Figure 1-5). Example Table 1-1: Torque Values for the Flange and Flange Adapter Bolts Bolt material Head markings Initial torque Final torque Carbon Steel 300 in-lb...
  • Page 8 Quick Start Guide February 2019 O-rings with flange adapters WARNING Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. Only use the O-ring that is designed for its specific flange adapter. A.

  • Page 9: Tagging

    February 2019 Quick Start Guide Tagging Commissioning tag The transmitter is supplied with a removable commissioning tag that contains both the Device ID (the unique code that identifies a particular device in the absence of a device tag) and a space to record the device tag (PD_TAG) (the operational identification for the device as defined by the Piping and Instrumentation Diagram [P&ID]).

  • Page 10: Consider Housing Rotation

    Quick Start Guide February 2019 Consider housing rotation To improve field access to wiring or to better view the optional LCD display: Procedure 1. Loosen the housing rotation set screw. 2. Turn the housing up to 180° left or right of its original (as shipped) position.
  • Page 11 February 2019 Quick Start Guide Procedure 1. If the transmitter is installed in a loop, then secure the loop and disconnect power. 2. Required: Remove the transmitter cover on the electronics board side (opposite the field terminals side). Do not remove instrument covers in explosive environments when circuit is live.

  • Page 12: Set The Switches

    Quick Start Guide February 2019 Set the switches Prerequisites Set Simulate and Security switch position before installation (location of switches shown in Figure 4-1), as desired. • The Simulate switch enables or disables the ability to set simulated alerts or simulated measured value and status. •...
  • Page 13 February 2019 Quick Start Guide WARNING Explosions could result in death or serious injury. Do not remove the housing covers in explosive atmospheres when the circuit is live. Remove the housing cover opposite the field terminal side. 3. Slide the security and simulate switches into the preferred position. 4.

  • Page 14: Wiring, Grounding, And Power

    Quick Start Guide February 2019 Wiring, grounding, and power Use a copper wire of sufficient size to ensure the voltage across the transmitter power terminals does not drop below 9 Vdc. Power supply voltage can be variable, especially under abnormal conditions such as when operating on battery backup.
  • Page 15 February 2019 Quick Start Guide Figure 5-2: Wiring Terminals without RTD A. Protective grounding terminal (do not ground cable shield at the transmitter) B. Trim shield and insulate C. Minimize distance D. Insulate shield E. Connect shield back to the power supply ground Note The power terminals are polarity insensitive, which means the electrical polarity of the power leads does not matter when connecting to the power...
  • Page 16 Quick Start Guide February 2019 Note Do NOT ground the cable shield at the transmitter; if the cable shield touches the transmitter housing, it can create ground loops and interfere with communications. To protect the fieldbus segment from noise, grounding techniques for shield wire require a single grounding point for shield wire to avoid creating a ground loop.
  • Page 17 February 2019 Quick Start Guide Grounding Signal wiring of the fieldbus segment can not be grounded. Grounding one of the signal wires will shut down the entire fieldbus segment. Signal termination A terminator should be installed at the beginning and end of every fieldbus segment.
  • Page 18 Quick Start Guide February 2019 Figure 5-3: Transmitter RTD Wiring Connection A. Ground lug B. RTD cable assembly wires C. Pt 100 RTD sensor Rosemount 3051SMV...

  • Page 19: System Readiness

    Verify the correct device driver (DD) is loaded on your systems to ensure proper communications. • Download the correct device driver at your host vendor download site, Emerson.com/Rosemount by selecting Support > Software Downloads & Drivers or FieldCommGroup.org. Quick Start Guide...

  • Page 20: Zero Trim The Transmitter

    Quick Start Guide February 2019 Zero trim the transmitter Transmitters are shipped fully calibrated per request or by the factory default of full scale. A zero trim is a single-point adjustment used for compensating mounting position and line pressure effects. Use the steps below if zero offset is less than five percent of URL.

  • Page 21: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that...
  • Page 22 Quick Start Guide February 2019 Note Transmitters marked with NI CL 1, DIV 2 can be installed in Division 2 locations using general Division 2 wiring methods or Nonincendive Field Wiring (NIFW). See Drawing 03151-1206. IE US FISCO Intrinsically Safe Certificate FM16US0233 Standards FM Class 3600 –...
  • Page 23 February 2019 Quick Start Guide Standards CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CSA Std C22.2 No. 30-M1986, CSA C22.2 No. 94.2-07, CSA Std C22.2 No. 213-M1987, CAN/CSA C22.2 60079-11:14, CAN/CSA-C22.2 No. 61010-1-12, ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05 (R2010) Markings FISCO Intrinsically Safe Class I, Division 1;...
  • Page 24 Quick Start Guide February 2019 I1 ATEX Intrinsic Safety Certificate Baseefa08ATEX0064X Standards EN 60079-0:2012, EN 60079-11:2012 Markings II 1 G Ex ia IIC T4 Ga, T4(–60 °C ≤T ≤ +70 °C) ® ™ Parameter HART SuperModule RTD (for 3051SFx) OUNDATION Fieldbus only HART...
  • Page 25 February 2019 Quick Start Guide ND ATEX Dust Certificate BAS01ATEX1374X Standards EN 60079-0:2012, EN 60079-31:2009 Markings II 1 D Ex ta IIIC T105 °C T 95 °C Da, (–20 °C ≤T ≤ +85 °C), = 42.4 V Special Conditions for Safe Use (X): 1.
  • Page 26 Quick Start Guide February 2019 Temperature class Process temperature –60 °C to +120 °C Special Conditions for Safe Use (X): 1. This device contains a thin wall diaphragm less than 1 mm thickness that forms a boundary between EPL Ga (process connection) and EPL Gb (all other parts of the equipment).
  • Page 27 February 2019 Quick Start Guide Markings Ex ia IIC T4 Ga, T4(–60 °C≤ T ≤ +70 °C) Parameter HART SuperModule RTD (for 3051SFx) OUNDATION Fieldbus only HART Fieldbus Voltage U 30 V 30 V 7.14 V 30 V 30 V Current I 300 mA 300 mA...
  • Page 28 Quick Start Guide February 2019 Special Condition for Safe Use (X): 1. If fitted with a 90 V transient suppressor, the equipment is not capable of withstanding the 500 V electrical strength test as defined in Clause 6.5.1 of IEC 60079-15:2010. This must be taken into account during installation.
  • Page 29 February 2019 Quick Start Guide 2. The enclosure may be made of aluminium alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a Zone 0 environment, areas requiring EPL Ga.
  • Page 30 Quick Start Guide February 2019 Table 8-1: Input Parameters (continued) 3051S…F…IB; 17.5 V 380mA 5.32W 3051SF…F…IB 3051S …A…M7, M8, or 30 V 300 mA 1.0 W 12 nF 60 µH M9; 3051SF …A…M7, M8, or M9; 3051SAL…C… M7, M8, or M9 3051SAL or 3051SAM 30 V 300 mA...
  • Page 31 February 2019 Quick Start Guide T code Ambient temperature range –60 °C +70 °C (–76 °F +158 °F) T4/T5 –60 °C +80 °C (–76 °F +176 °F) 3. The earth connection facility in the enclosure should be connected reliably. 4. During installation, use and maintenance of the product in explosive atmosphere, observe the warning “Do not open cover when circuit is alive”.
  • Page 32 Quick Start Guide February 2019 I3 China Intrinsic Safety Certificate 3051SMV: GYJ14.1040X [Mfg USA, China, Singapore] 3051SFx: GYJ16.14 [Mfg USA, China, Singapore] Standards 3051SMV: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010 3051SFx: GB3836.1/4-2010, GB3836.20-2010, GB12476.1-2000 Markings 3051SMV: Ex ia IIC T4 Ga 3051SFx: Ex ia IIC T4 Ga, Ex tD A20 T 105 °C T 95 °C;...
  • Page 33 February 2019 Quick Start Guide 7. End users are not permitted to change any components, contact the manufacturer to avoid damage to the product. 8. During installation in hazardous location, cable glands, conduit, and blanking plugs certified by state-appointed inspection bodies with DIP A20 IP66 type of protection should be used.
  • Page 34 Quick Start Guide February 2019 Markings 0Ex ia IIC T4 Ga X 8.1.8 Japan E4 Japan Flameproof Certificate CML 17JPN1147X Markings Ex d IIC T6…T4 Ga/Gb Table 8-2: Temperatur Ambient temperature Process temperature e class –40 °C to +70 °C (–40 °F to +158 –60 °C to +70 °C (–76 °F to +158 °F) °F)
  • Page 35 February 2019 Quick Start Guide IP Republic of Korea Intrinsic Safety [HART Only] Certificate 10-KB4BO-0021X [Mfg USA, SMMC] Markings Ex ia IIC T4 8.1.10 Combinations Combination of E1, I1, N1, and ND Combination of E2 and I2 Combination of E5 and I5 Combination of E6 and I6 Combination of E7, I7, and N7 Combination of E1, I1, E6, and I6...
  • Page 36 Quick Start Guide February 2019 Application Location classes Type 3051S Temperature Humidity Vibration Enclosure D/IP66/IP68 SLL Lloyds Register (LR) Type Approval 11/60002 Certificate Application Environmental categories ENV1, ENV2, ENV3, and ENV5. [HART only] Rosemount 3051SMV...
  • Page 37 February 2019 Quick Start Guide Declaration of Conformity EU Declaration of Conformity No: RMD 1072 Rev. L Rosemount Inc. 8200 Market Boulevard Chanhassen, MN 55317-9685 declare under our sole responsibility that the product, Rosemount™ Models 3051SMV & 300SMV Pressure Transmitters manufactured by, Rosemount Inc.
  • Page 38 Quick Start Guide February 2019 EU Declaration of Conformity No: RMD 1072 Rev. L EMC Directive (2014/30/EU) All Models 3051SMV and 300SMV Pressure Transmitters Harmonized Standards Used: EN 61326-1:2013, EN61326-2-3: 2013 PED Directive (2014/68/EU) Models 3051SMV and 300SMV Pressure Transmitters Model 3051SMV with Static Pressure Range 4 only (also with P0 &...
  • Page 39 February 2019 Quick Start Guide EU Declaration of Conformity No: RMD 1072 Rev. L BAS01ATEX1374X – Dust Group II Category 1 D Ex ta IIIC T105°C T 95°C Da Harmonized Standards Used: EN 60079-0:2012+A11:2013 Other Standards Used: EN 60079-31:2009 (a review against EN60079-31:2014, which is harmonized, shows no significant changes relevant to this equipment so EN60079:2009 continues to represent “State of the Art”) KEMA00ATEX2143X –...
  • Page 40 Quick Start Guide February 2019 EU Declaration of Conformity No: RMD 1072 Rev. L ATEX Notified Body for Quality Assurance SGS FIMCO OY [Notified Body Number: 0598] P.O. Box 30 (Särkiniementie 3) 00211 HELSINKI Finland Page 4 of 4 Document Rev: 2013_A Rosemount 3051SMV...
  • Page 41 February 2019 Quick Start Guide ChinaRoHS Rosemount 3051SMV China RoHS List of Rosemount 3051SMV Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6) (PBB) (PBDE) Electronics...
  • Page 42 Quick Start Guide February 2019 Rosemount 3051SMV...
  • Page 43 February 2019 Quick Start Guide Quick Start Guide...
  • Page 44 The Emerson logo is a Facebook.com/Rosemount trademark and service mark of Emerson Electric Youtube.com/user/ Co. Rosemount is mark of one of the Emerson RosemountMeasurement family of companies. All other marks are the Google.com/+RosemountMeasurement property of their respective owners.
