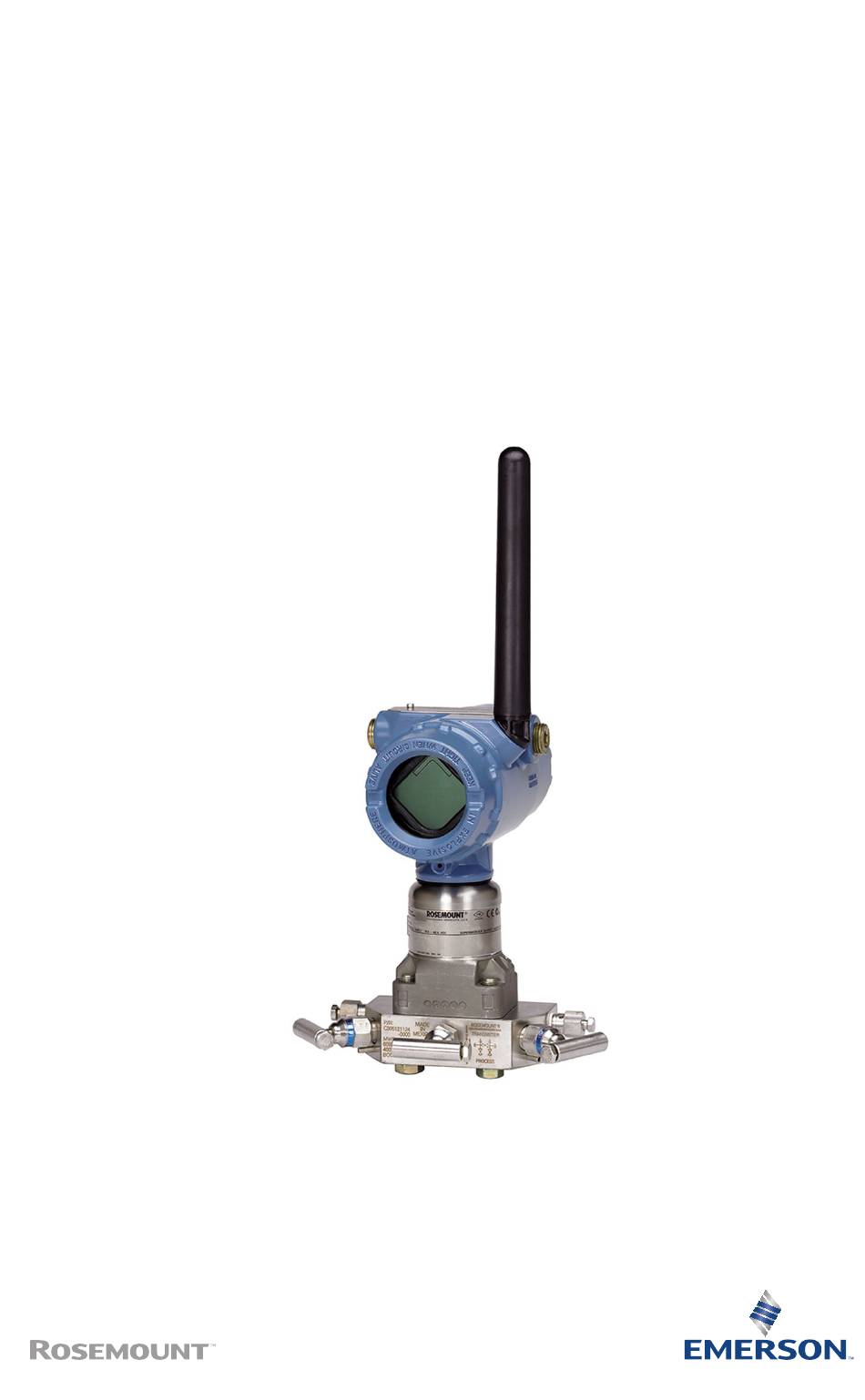

- Page 1 Quick Start Guide 00825-0200-4802, Rev HF September 2024 Rosemount 3051S Series Pressure ™ Transmitter and Rosemount 3051SF Series Flow Meter with WirelessHART Protocol ®...
- Page 2 International Air Transport Association (IATA), International Civil Aviation Organization (ICAO), and European Ground Transportation of Dangerous Goods (ARD). It is the responsibility of the shipper to ensure compliance with these or any other local requirements. Consult current regulations and requirements before shipping. www.Emerson.com...
-
Page 3: Table Of Contents
Rosemount 3051S and 3051S MultiVariable Wireless Reference Manual. This document is also available electronically on Emerson.com/Global. WARNING Refer to the Product certifications section of this Quick Start Guide documentation when using the RFID tag (option code Y3) for required installation conditions. - Page 4 Quick Start Guide September 2024 www.Emerson.com...
-
Page 5: Wireless Considerations
Wireless considerations 1.1 Power up sequence The Emerson Wireless Gateway should be installed and functioning properly before any wireless field devices are powered. Commission the Rosemount ET310 and install the BP20E power module to power the device only after the Gateway has been installed and is functioning. -
Page 6: Field Communicator Connections
Communicator, a Rosemount 702 Wireless Device Dashboard (DD) is required. To obtain the latest DD, visit the Field Communicator System Software and Device Description site at: Emerson.com/Field- Communicator. This transmitter uses the Black Power Module; Order model number 701PBKKF. www.Emerson.com... - Page 7 September 2024 Quick Start Guide Figure 1-3: Connection Diagram A. Communication terminals B. Handheld communicator C. HART modem After the Wireless Gateway has been installed and is functioning properly, set up the transmitter and all other wireless devices. www.Emerson.com...
-
Page 8: Mounting The Transmitter
1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. When mounting the transmitter, orientate the drain/vent valves upward. A. Direction of flow 2.2 Gas flow applications Procedure 1. Place taps in the top or side of the line. www.Emerson.com... - Page 9 September 2024 Quick Start Guide 2. Mount beside or above the taps. A. Direction of flow 2.3 Steam flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. www.Emerson.com...
- Page 10 Quick Start Guide September 2024 3. Fill impulse lines with water. A. Direction of flow www.Emerson.com...
-
Page 11: Mounting Options
September 2024 Quick Start Guide 2.4 Mounting options Panel mounting Figure 2-1: Coplanar Flange Figure 2-2: Traditional Flange www.Emerson.com... - Page 12 Quick Start Guide September 2024 Figure 2-3: In-line Device 3.08 (78) A. U-bolt bracket Pipe mounting Figure 2-4: Coplanar Flange 6.25 (158) www.Emerson.com...
-
Page 13: Bolting Considerations
Figure 2-5: Traditional Flange Figure 2-6: In-line Device 2.5 Bolting considerations If the transmitter installation requires assembly of a process flange, manifold, or flange adapters, follow these assembly guidelines to ensure a tight seal for optimal transmitter performance characteristics. www.Emerson.com... - Page 14 Quick Start Guide September 2024 NOTICE Only use bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-7 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly. Figure 2-7: Common transmitter assemblies 4 × 2.25-in.
- Page 15 2-1. If bolt material is not shown in Table 2-1, contact your local Emerson representative for more information. NOTICE Do not apply additional lubricant when installing either type of bolt. Carbon steel bolts do not require lubrication. Stainless steel bolts are coated with a lubricant to ease installation.
-
Page 16: O-Rings With Flange Adapters
B. Sensor module 2.6 O-rings with flange adapters WARNING Process leak Improperly installed flange adapter O-rings could cause process leaks which could result in death or serious injury. Only use the O-ring that is designed for its specific flange adapter. www.Emerson.com... -
Page 17: Remote Antenna (Optional)
If the O-rings are replaced, re-torque the flange bolts and alignment screws after installation to compensate for seating of the O-rings. 2.7 Remote antenna (optional) The high-gain remote antenna options provide flexibility for mounting the device based on wireless connectivity, lightning protection, and current work practices. www.Emerson.com... - Page 18 2.7.1 Remote antenna installation (WN/WJ option) Prerequisites Find a location where the remote antenna has optimal wireless performance. In most instances, this is 15–25 ft. (4.6–7.6 m) above the ground or 6 ft. (2 m) above obstructions or major infrastructure. www.Emerson.com...
- Page 19 If the supplied remote mount antenna kit is not installed per these instructions, Emerson is not responsible for wireless performance or non-compliance with spectrum regulations. Procedure 1.
- Page 20 Quick Start Guide September 2024 Figure 2-11: Applying Coaxial Sealant to Cable Connections 6. Ensure the mounting mast and lightning arrestor are grounded according to local/national electrical code. Any spare lengths of coaxial cable should be placed in 12-in. (0.3 m) coils. www.Emerson.com...
-
Page 21: Connecting The Power Module
September 2024 Quick Start Guide 3 Connecting the power module Procedure 1. Remove the housing cover on the field terminal side. 2. Connect the black power module. www.Emerson.com... -
Page 22: Trimming The Transmitter
Zero trim A zero trim is a single-point adjustment used for compensating mounting position and line pressure effects. When performing a zero trim, ensure the equalizing valve is open and all wet legs are filled to the correct level. www.Emerson.com... -
Page 23: Closing The Housing
Quick Start Guide 5 Closing the housing Procedure 1. Close the housing cover and tighten to safety specification. 2. Always ensure a proper seal by installing the electronics housing covers so that metal contacts metal. NOTICE Do not overtighten. www.Emerson.com... -
Page 24: Verify Operation
S R C H N G N E G O T L I M - O P 6.2 Field Communicator For HART Wireless transmitter communication, an appropriate DD ® is required. For connecting with a Field Communicator, refer to Field Communicator connections. www.Emerson.com... - Page 25 Note It may take several minutes for the device to join the network. Figure 6-1: Gateway Network Settings 6.4 AMS Wireless Configurator When the device has joined the network, it will appear in AMS Wireless Configurator. See Figure 6-2. www.Emerson.com...
-
Page 26: Troubleshooting
6-1). The network ID and join key may be changed in the wireless device by using the following Fast Key sequence. Function Fast Key Menu items sequence Communications 3, 4 Join Status, Wireless Mode, Join Mode, Number of Available Neighbors, Number of Advertisements Heard, Number of Join Attempts www.Emerson.com... -
Page 27: Reference Information
Display, Scaled Variable, Other Wireless 2, 2, 1 Network ID, Join Device to Network, Configure Update Rate, Configure Broadcast Power Level, Power Mode, Power Source Note If using Rosemount 3051SMV, use the Fast Key sequence 2, 2. Then navigate to Device Information. www.Emerson.com... -
Page 28: Rosemount 3051S And 3051Smv Wireless
RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage. - Page 29 D T4; (T = 70 °C) when connected per Rosemount drawing 03151-1010 Type 4X 8.3 Europe 8.3.1 I1 ATEX Intrinsic Safety Baseefa13ATEX0127X Certificate Markings II 1 G Ex ia IIC T4 Ga, T4 (-60 °C ≤ T ≤ +70 °C) www.Emerson.com...
- Page 30 Ex ia IIC T4 Ga, T4 (-60 °C ≤ T ≤ +70 °C) Markings Special Condition for Safe Use (X): See certificate. 8.6 China 8.6.1 I3 China (NEPSI) Intrinsic Safety 3051S Wireless: GYJ21.1121X Certificate 3051SFx: GYJ21.3301X [Flowmeters] Ex ia IIC T4 Ga, T4 (-60 ~ 70 °C) Markings www.Emerson.com...
- Page 31 See certificate for special conditions. Note Not currently available on the 3051S MultiVariable Wireless Transmitter. 8.10 Combinations Combination of I1, I5, and I6 8.11 Y3 ATEX/IECEx RFID tag approvals IECEx EPS 15.0042X, EPS 15 ATEX 1 1011 X Certificate www.Emerson.com...
- Page 32 WARNING Additional warnings The plastic enclosure may present a potential electrostatic ignition hazard. RFID tag has limitations in ambient temperature and zone installation areas (Zones 1 & 21) as compared to the gauge. www.Emerson.com...
- Page 33 September 2024 Quick Start Guide 8.12 Rosemount 3051S Wireless Declaration of Conformity www.Emerson.com...
- Page 34 Quick Start Guide September 2024 www.Emerson.com...
- Page 35 September 2024 Quick Start Guide www.Emerson.com...
- Page 36 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
