Quick Start Guide
00825-0100-4853, Rev AD
August 2016

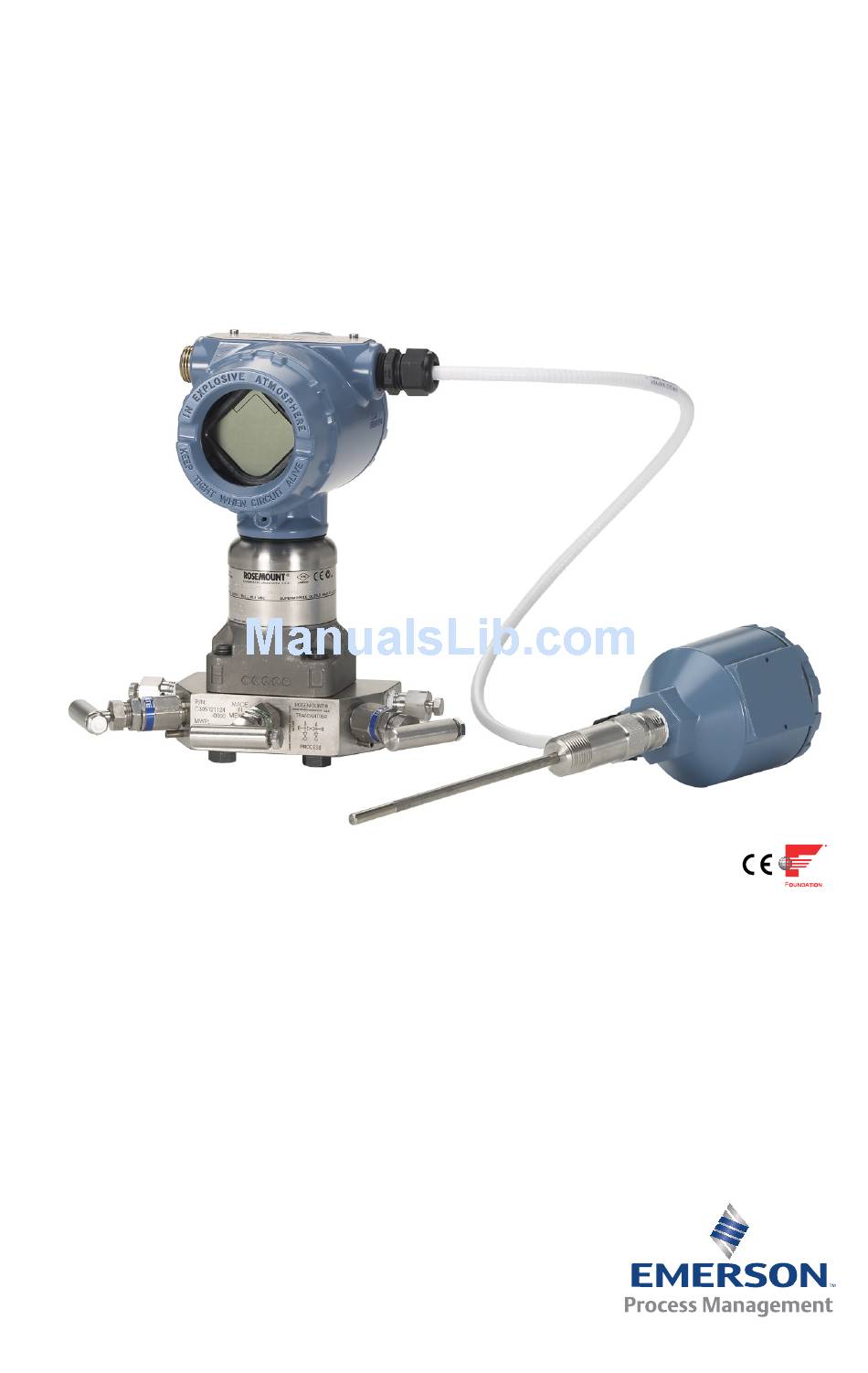

Rosemount
3051S MultiVariable
Transmitter
Rosemount 3051SF Series MultiVariable
Flowmeter
with F
Fieldbus Protocol
OUNDATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 3051S MultiVariable and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emerson Rosemount 3051S MultiVariable

  • Page 1 Quick Start Guide 00825-0100-4853, Rev AD August 2016 ™ ™ Rosemount 3051S MultiVariable Transmitter Rosemount 3051SF Series MultiVariable Flowmeter ™ with F Fieldbus Protocol OUNDATION...
  • Page 2: Table Of Contents

    August 2016 Quick Start Guide NOTICE This guide provides basic guidelines for Rosemount 3051SMV F Fieldbus Transmitters. It does not OUNDATION provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-Proof, Flame-Proof, or intrinsically safe (I.S.) installations. Refer to the Rosemount 3051SMV F Fieldbus OUNDATION Reference Manual...
  • Page 3: Mount The Transmitter

    Quick Start Guide August 2016 1.0 Mount the transmitter 1.1 Liquid flow applications 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward. Flow 1.2 Gas flow applications 1.
  • Page 4 Only use bolts supplied ™ with the transmitter or sold by Emerson Process Management as spare parts. Figure 1 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 5 Quick Start Guide August 2016 Use the following bolt installation procedure: Note Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation. However, no additional lubricant should be applied when installing either type of bolt.
  • Page 6: Tagging

    August 2016 Quick Start Guide 2.0 Tagging 2.1 Commissioning (paper) tag To identify which device is at a particular location use the removable tag provided with the transmitter. Ensure the physical device tag (PD Tag field) is properly entered in both places on the removable commissioning tag and tear off the bottom portion for each transmitter.
  • Page 7 Quick Start Guide August 2016 Note Do not rotate the housing more than 180° without first performing a disassembly procedure. See the Rosemount 3051SMV F Fieldbus Transmitter Reference OUNDATION Manual for more information. Over-rotation may sever the electrical connection between the sensor module and the electronics.
  • Page 8: Set The Switches

    August 2016 Quick Start Guide 4.0 Set the switches Set Simulate and Security switch position before installation (location of switches shown in Figure 5), as desired. The Simulate switch enables or disables the ability to set simulated alerts or  simulated measured value and status.
  • Page 9: Wire, Ground, And Power

    Quick Start Guide August 2016 5.0 Wire, ground, and power Use a copper wire of sufficient size to ensure the voltage across the transmitter power terminals does not drop below 9 Vdc. Power supply voltage can be variable, especially under abnormal conditions such as when operating on battery backup.
  • Page 10: Power Supply

    August 2016 Quick Start Guide Note The power terminals are polarity insensitive, which means the electrical polarity of the power leads does not matter when connecting to the power terminals. If polarity sensitive devices are connected to the segment, terminal polarity should be followed. 5.1 Signal wiring and shield grounding Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment.
  • Page 11 Quick Start Guide August 2016 5.3 Power conditioner A fieldbus segment requires a power conditioner to isolate the power supply, filter, and decouple the segment from other segments attached to the same power supply. 5.4 Grounding Signal wiring of the fieldbus segment can not be grounded. Grounding one of the signal wires will shut down the entire fieldbus segment.
  • Page 12 August 2016 Quick Start Guide Note Grounding the transmitter case via threaded conduit connection may not provide sufficient ground continuity. Transient protection terminal block grounding The transmitter can withstand electrical transients of the energy level usually encountered in static discharges or induced switching transients. However, high-energy transients, such as those induced in wiring from nearby lightning strikes, can damage the transmitter.
  • Page 13 Note Use shielded four-wire cable for the process temperature connection. 2. Connect the RTD cable to the Rosemount 3051S MultiVariable Transmitter by inserting the cable wires through the unused housing conduit and connect to the four screws on the transmitter terminal block. An appropriate cable gland should be used to seal the conduit opening around the cable.
  • Page 14: System Readiness

    August 2016 Quick Start Guide 6.0 System readiness 6.1 Confirm correct device driver Verify the correct device driver (DD) is loaded on your systems to ensure  proper communications. Download the correct device driver at your host vendor download site, ...
  • Page 15: Product Certifications

    Quick Start Guide August 2016 8.0 Product Certifications Rev 1.14 8.1 European Directive Information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at EmersonProcess.com/Rosemount.
  • Page 16 August 2016 Quick Start Guide 8.5 Canada E6 Canada Explosionproof, Dust Ignition-proof, Division 2 Certificate: 1143113 Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CSA Std C22.2 No. 30-M1986, CSA C22.2 No. 94.2-07, CSA Std C22.2 No. 213-M1987, CAN/CSA C22.2 60079-11:14, CAN/CSA-C22.2 No.
  • Page 17 Quick Start Guide August 2016 2. For information on the dimensions of the flameproof joints the manufacturer shall be contacted. I1 ATEX Intrinsic Safety Certificate: Baseefa08ATEX0064X Standards: EN 60079-0:2012, EN 60079-11:2012 II 1 G Ex ia IIC T4 Ga, T4(-60 °C ≤ T ≤...
  • Page 18 August 2016 Quick Start Guide N1 ATEX Type n Certificate: Baseefa08ATEX0065X Standards: EN 60079-0: 2012, EN 60079-15: 2010 II 3 G Ex nA IIC T4 Gc, (-40 °C ≤ T ≤ +70 °C), V Markings: = 45 V Special Condition for Safe Use (X): 1.
  • Page 19 Quick Start Guide August 2016 RTD (for 3051SFx) SuperModule OUNDATION Parameters HART Fieldbus only HART Fieldbus Power P 1.3 W 887 mW 17.32 mW 137 mW Capacitance C 14.8 nF 0.11 uF 0.8 nF Inductance L 1.33 mH Special Conditions for Safe Use (X): 1.
  • Page 20 August 2016 Quick Start Guide I2 INMETRO Intrinsic Safety Certificate: UL-BR 15.0357X Standards: ABNT NBR IEC 60079-0:2008 + Addendum 1:2011, ABNT NBR IEC 60079-11:2009 Markings: Ex ia IIC T4 Ga, T4(-60 °C ≤ T ≤ +70 °C) Special Conditions for Safe Use (X): 1.
  • Page 21 Quick Start Guide August 2016 7. During installation in a hazardous location, cable glands and blanking plugs certified by state appointed inspection bodies with Ex d IIC Gb or Ex d IIC Gb DIP A20 [Flowmeters] IP66 type of protection should be used. Redundant cable entries should be blocked with blanking plugs.
  • Page 22 August 2016 Quick Start Guide 8. During installation in hazardous location, cable glands, conduit, and blanking plugs certified by state-appointed inspection bodies with DIP A20 IP66 type of protection should be used. Redundant cable entries should be blocked with blanking plugs. 9.
  • Page 23 Quick Start Guide August 2016 8.14 Additional Certifications SBS American Bureau of Shipping (ABS) Type Approval Certificate: 00-HS145383 Intended Use: Measure gauge or absolute pressure of liquid, gas or vapor applications on ABS classed vessels, marine, and offshore installations. [HART Only] SBV Bureau Veritas (BV) Type Approval Certificate: 31910 BV...
  • Page 24 August 2016 Quick Start Guide Figure 12. Rosemount 3051SMV Declaration of Conformity...
  • Page 25 Quick Start Guide August 2016...
  • Page 26 August 2016 Quick Start Guide...
  • Page 27 Quick Start Guide August 2016...
  • Page 28 August 2016 Quick Start Guide...
  • Page 29 Quick Start Guide August 2016 Rosemount 3051SMV China RoHS List of Rosemount 3051SMV Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6) (PBB) (PBDE) Electronics...
  • Page 30 1 Pandan Crescent Singapore 128461 Standard Terms and Conditions of Sale can be found at +65 6777 8211 www.Emerson.com/en-us/pages/Terms-of-Use.aspx The Emerson logo is a trademark and service mark of Emerson +65 6777 0947 Electric Co. Enquiries@AP.EmersonProcess.com MultiVariable, SuperModule, Rosemount, and Rosemount logotype are trademarks of Emerson Process Management.
