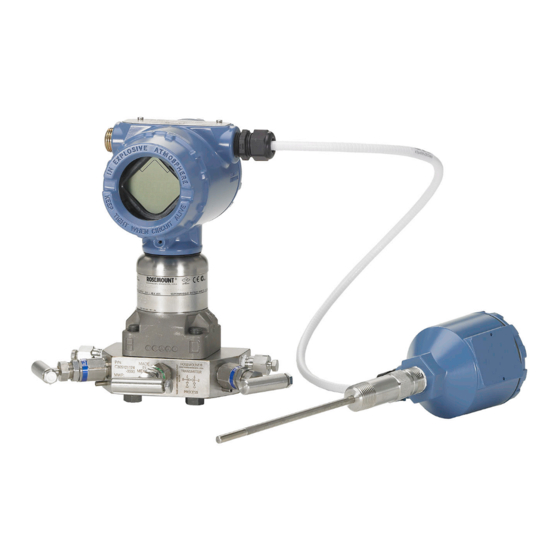

Emerson Rosemount MultiVariable 3051S Series Quick Start Manual

Flow meter with foundation fieldbus protocol
Hide thumbs Also See for Rosemount MultiVariable 3051S Series:

Advertisement

Quick Links

Download this manual

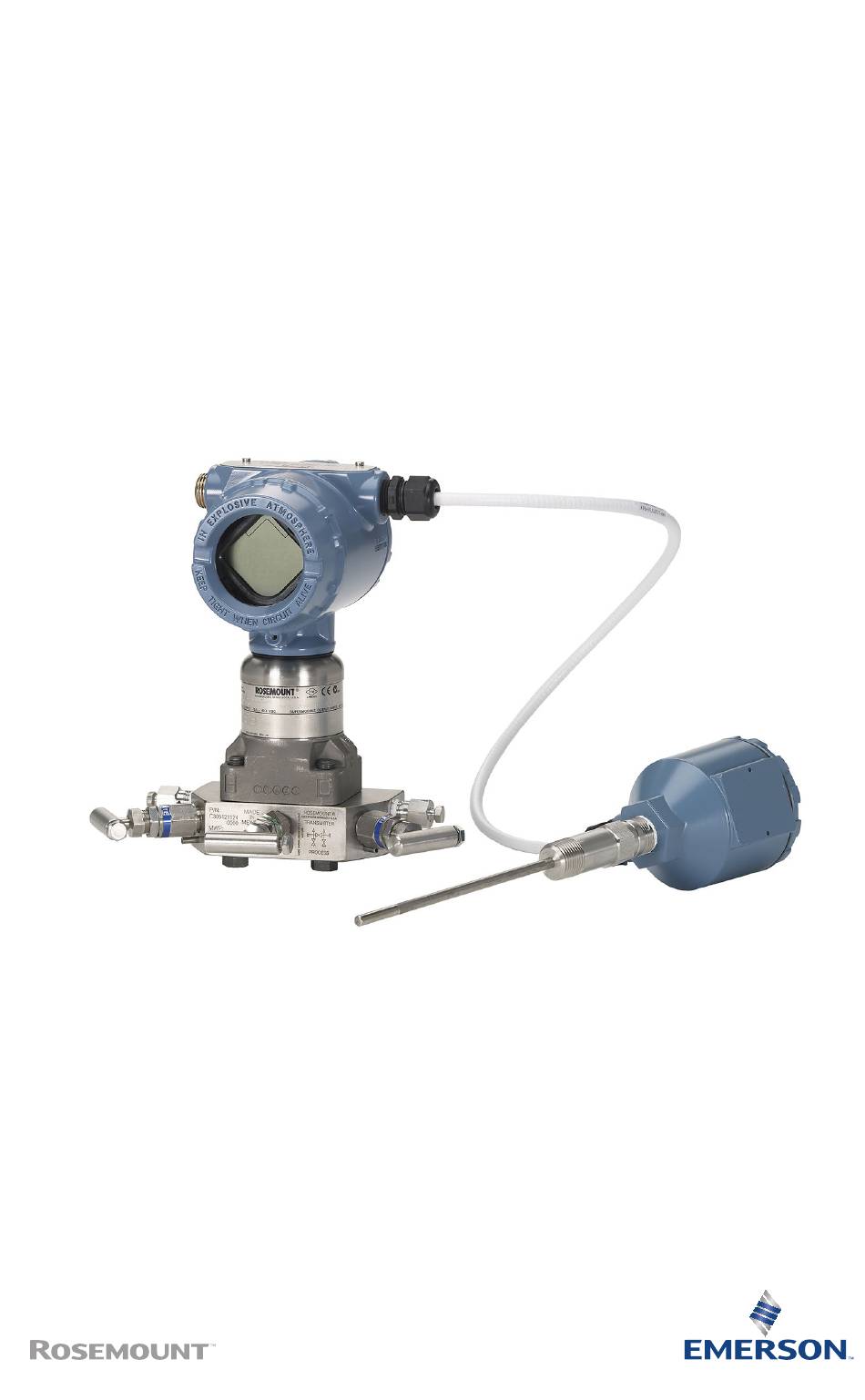

Quick Start Guide
00825-0100-4853, Rev AH
January 2024
Rosemount
3051S MultiVariable
™
™
Transmitter and 3051SF Series Flow
Meter
with F
Fieldbus Protocol
™
OUNDATION

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount MultiVariable 3051S Series and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount MultiVariable 3051S Series

Summary of Contents for Emerson Rosemount MultiVariable 3051S Series

  • Page 1 Quick Start Guide 00825-0100-4853, Rev AH January 2024 Rosemount 3051S MultiVariable ™ ™ Transmitter and 3051SF Series Flow Meter with F Fieldbus Protocol ™ OUNDATION...

  • Page 2: Table Of Contents

    OUNDATION maintenance, service, or troubleshooting. Refer to the Rosemount 3051SMV F OUNDATION Fieldbus Reference Manual for more instruction. This document is also available electronically on Emerson.com/Rosemount. Contents Mounting the transmitter......................5 Tagging............................12 Consider housing rotation......................13 Set the switches......................... 15 Wiring, grounding, and power....................
  • Page 3 January 2024 Quick Start Guide Product certifications........................ 24 Quick Start Guide...
  • Page 4 Quick Start Guide January 2024 Rosemount 3051SMV...

  • Page 5: Mounting The Transmitter

    January 2024 Quick Start Guide 1  Mounting the transmitter 1.1  Liquid flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward. A.
  • Page 6 Quick Start Guide January 2024 A. Direction of flow 1.3  Steam flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. A. Direction of flow Rosemount 3051SMV...
  • Page 7 January 2024 Quick Start Guide 1.4  Mounting brackets Figure 1-1: Mounting Bracket – Coplanar Flange Panel mount Pipe mount     Figure 1-2: Mounting Brackets – Traditional Flange Panel mount Pipe mount     Quick Start Guide...
  • Page 8 Only use bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 1-4 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 9 D. Transmitter with coplanar flange and optional Rosemount Conventional Manifold and flange adapters Note For all other manifolds, contact Emerson.com/Rosemount. Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the markings on the head of the bolt and referencing Table 1-1.
  • Page 10 Quick Start Guide January 2024 5. Verify the flange bolts are protruding through the sensor module before applying pressure (see Figure 1-5). Example Table 1-1: Torque Values for the Flange and Flange Adapter Bolts Bolt Head markings Initial Final torque material torque Carbon Steel 300 in-lb...
  • Page 11 January 2024 Quick Start Guide 1.6  O-rings with flange adapters  WARNING Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. Only use the O-ring that is designed for its specific flange adapter. Figure 1-6: O-Ring flange adapter A.

  • Page 12: Tagging

    Quick Start Guide January 2024 2  Tagging 2.1  Commissioning tag The transmitter is supplied with a removable commissioning tag that contains both the Device ID (the unique code that identifies a particular device in the absence of a device tag) and a space to record the device tag (PD_TAG) (the operational identification for the device as defined by the Piping and Instrumentation Diagram [P&ID]).

  • Page 13: Consider Housing Rotation

    January 2024 Quick Start Guide 3  Consider housing rotation To improve field access to wiring or to better view the optional LCD display: Procedure 1. Loosen the housing rotation set screw. 2. Turn the housing up to 180° left or right of its original (as shipped) position.
  • Page 14 Quick Start Guide January 2024 Procedure 1. If the transmitter is installed in a loop, then secure the loop and disconnect power. 2. Required: Remove the transmitter cover on the electronics board side (opposite the field terminals side). Do not remove instrument covers in explosive environments when circuit is live.

  • Page 15: Set The Switches

    January 2024 Quick Start Guide 4  Set the switches Prerequisites Set Simulate and Security switch position before installation (location of switches shown in Figure 4-1), as desired. • The Simulate switch enables or disables the ability to set simulated alerts or simulated measured value and status. •...
  • Page 16 Quick Start Guide January 2024  WARNING Explosions could result in death or serious injury. Do not remove the housing covers in explosive atmospheres when the circuit is live. Remove the housing cover opposite the field terminal side. 3. Slide the security and simulate switches into the preferred position.

  • Page 17: Wiring, Grounding, And Power

    January 2024 Quick Start Guide 5  Wiring, grounding, and power Use a copper wire of sufficient size to ensure the voltage across the transmitter power terminals does not drop below 9 Vdc. Power supply voltage can be variable, especially under abnormal conditions such as when operating on battery backup.
  • Page 18 Quick Start Guide January 2024 Figure 5-2: Wiring Terminals without RTD A. Protective grounding terminal (do not ground cable shield at the transmitter) B. Trim shield and insulate C. Minimize distance D. Insulate shield E. Connect shield back to the power supply ground Note The power terminals are polarity insensitive, which means the electrical polarity of the power leads does not matter when...
  • Page 19 January 2024 Quick Start Guide Note Do NOT ground the cable shield at the transmitter; if the cable shield touches the transmitter housing, it can create ground loops and interfere with communications. To protect the fieldbus segment from noise, grounding techniques for shield wire require a single grounding point for shield wire to avoid creating a ground loop.
  • Page 20 Quick Start Guide January 2024 5.4  Grounding Signal wiring of the fieldbus segment can not be grounded. Grounding one of the signal wires will shut down the entire fieldbus segment. 5.5  Signal termination A terminator should be installed at the beginning and end of every fieldbus segment.
  • Page 21 January 2024 Quick Start Guide Figure 5-3: Transmitter RTD Wiring Connection A. Ground lug B. RTD cable assembly wires C. Pt 100 RTD sensor Quick Start Guide...

  • Page 22: System Readiness

    Confirm correct device driver • Verify the correct Device Driver (DD) is loaded on your systems to ensure proper communications. • Download the correct device driver at your host vendor download site, Emerson.com/Rosemount by selecting Support → Software Downloads & Drivers or FieldCommGroup.org. Rosemount 3051SMV...

  • Page 23: Zero Trim The Transmitter

    January 2024 Quick Start Guide 7  Zero trim the transmitter Transmitters are shipped fully calibrated per request or by the factory default of full scale. A zero trim is a single-point adjustment used for compensating mounting position and line pressure effects. Use the steps below if zero offset is less than five percent of URL.
  • Page 24 A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to...
  • Page 25 January 2024 Quick Start Guide B, C, D; T4 (–50 °C ≤ T ≤ +70 °C) when connected per Rosemount drawing 03151-1206; Type 4X Note Transmitters marked with NI CL 1, DIV 2 can be installed in Division 2 locations using general Division 2 wiring methods or Nonincendive Field Wiring (NIFW).
  • Page 26 Quick Start Guide January 2024 8.1.2  Canada E6 Canada Explosionproof, Dust Ignition-proof, Division 2 1143113 Certificate CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CSA Standards Std C22.2 No. 30-M1986, CSA C22.2 No. 94.2-07 , CSA Std C22.2 No. 213-M1987, CAN/CSA C22.2 60079-11:14, CAN/ CSA-C22.2 No.
  • Page 27 January 2024 Quick Start Guide EN IEC 60079-0:2018, EN 60079-1: 2014, EN Standards 60079-26:2015 Ex II 1/2 G Ex db IIC T6…T4 Ga/Gb, T6 (–60 °C ≤ T Markings ≤ +70 °C), T5/T4 (–60 °C ≤ T ≤ +80 °C) Temperature class Process temperature –60 °C to +70 °C –60 °C to +80 °C...
  • Page 28 Quick Start Guide January 2024 Paramete HART SuperModule RTD (for 3051SFx) ® ™ ™ OUNDATION Fieldbus only HART Fieldbus Current I 300 mA 300 mA 2.31 mA 18.24 mA Power P 1.3 W 887 mW 17.32 137 mW Capacitanc 14.8 0.11 μF 0.8 nF Inductance 1.33 mH...
  • Page 29 January 2024 Quick Start Guide Ex II 1 D Ex ta IIIC T105 °C T 95 °C Da, (–20 °C ≤T Markings ≤ +85 °C), V = 42.4 V Special Conditions for Safe Use (X): 1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66.
  • Page 30 Quick Start Guide January 2024 Special Conditions for Safe Use (X): 1. This device contains a thin wall diaphragm less than 1 mm thickness that forms a boundary between EPL Ga (process connection) and EPL Gb (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material.
  • Page 31 January 2024 Quick Start Guide IEC 60079-0:2011, IEC 60079-11:2011 Standards Ex ia IIC T4 Ga, T4 (–60 °C ≤ T ≤ +70 °C) Markings Parameter HART SuperModule RTD (for 3051SFx) ® ™ ™ OUNDATION Fieldbus only HART Fieldbus Voltage U 30 V 30 V 7.14 V 30 V...
  • Page 32 Quick Start Guide January 2024 N7 IECEx Type n IECEx BAS 08.0026X Certificate IEC 60079-0:2011, IEC 60079-15:2010 Standards Ex nA IIC T5 Gc, (–40 °C ≤T ≤ +70 °C) Markings Special Condition for Safe Use (X): If fitted with a 90 V transient suppressor, the equipment is not capable of withstanding the 500 V electrical strength test as defined in Clause 6.5.1 of IEC 60079-15:2010.
  • Page 33 January 2024 Quick Start Guide a special option code, contact the manufacturer for more information. I2 Brazil Intrinsic Safety UL-BR 15.0357X Certificate ABNT NBR IEC 60079-0:2008 + Addendum 1:2011, ABNT Standards NBR IEC 60079-11:2009 Ex ia IIC T4 Ga (–60 °C ≤ T ≤...
  • Page 34 Quick Start Guide January 2024 Special Conditions for Safe Use (X): 一、产品安全使用特殊条件 证书编号后缀“X”表明产品具有安全使用特殊条件： 1. 涉及隔爆接合面的维修须联系产品制造商。 2. 产品使用厚度小于 1mm 的隔膜作为 0 区（过程连接）和 1 区（产 品其他部分）的隔离，安装和维护时需严格遵守制造商提供的说明 书，以确保安全性。 3. 产品外部涂层可能产生静电危险，使用时须防止产生静电火花，只 能用湿布清理。 二、产品使用注意事项 1. 产品温度组别和使用环境温度之间的关系为： 温度组别 使用环境温度 过程温度 -60 °C to +70 °C –60 °C to +70 °C -60 °C to +80 °C –60 °C to +80 °C -60 °C to +80 °C...
  • Page 35 January 2024 Quick Start Guide “粉尘防爆安全规程”、GB12476.2-2010“可燃性粉尘环境用电气设 备 第 2 部分：选型和安装”的有关规定。 I3 China Intrinsic Safety 3051SMV: GYJ23.1243X [Mfg USA, China, Singapore] Certificate 3051SFx: GYJ21.3301X [Mfg USA, China, Singapore] 3051SMV: GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T Standards 3836.20-2010 3051SFx: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010 3051SMV: Ex ia IIC T4 Ga Markings 3051SFx: Ex ia IIC T4 Ga;...
  • Page 36 Quick Start Guide January 2024 c 输出代 端子 最高输 最大输 最大输 最大内部 等效参数 入电流 I 码 入电压 入功率 (nF) (μH) (mA) +, -, A 配 +, - M7、 M8 或 M9 显示 +, - FISCO +, - 17.5 5.32 d 代码为 A 时 最高输出...
  • Page 37 January 2024 Quick Start Guide 8.1.7  EAC – Belarus, Kazakhstan, Russia EM Technical Regulation Customs Union (EAC) Flameproof and Dust Ignition-proof EAЭC KZ 7500525.01.01.00672 Certificate Markings 0/1 Ex db IIC T6…T4 Ga/Gb X Ex ta IIIC T105°C T 95°C Da X IM Technical Regulation Customs Union (EAC) Intrinsic Safety EAЭC KZ 7500525.01.01.00672 Certificate...
  • Page 38 Quick Start Guide January 2024 8.1.9  Republic of Korea EP Republic of Korea Flameproof 19-KA4BO-0913X [Mfg USA], 12-KB4BO-0180X [Mfg USA], Certificate 11-KB4BO-0068X [Mfg Singapore] Ex d IIC T6...T4 Ga/Gb Markings IP Republic of Korea Intrinsic Safety [HART Only] ® 10-KB4BO-0021X [Mfg SMMC], 16-KB4BO-0440X [Mfg Certificate USA], 19-KA4BO-0911X [Mfg USA] Ex ia IIC T4...
  • Page 39 January 2024 Quick Start Guide Class Notations: AUT-UMS, AUT-CCS, AUT-PORT and Application AUT-IMS. [HART only] SDN Det Norske Veritas (DNV) Type Approval TAA00000K9 Certificate Det Norske Veritas’ Rules for Classification of Ships, Intended High Speed and Light Craft, and Det Norske Veritas’ Offshore Standards.
  • Page 40 Quick Start Guide January 2024 8.2  Declaration of conformity Rosemount 3051SMV...
  • Page 41 January 2024 Quick Start Guide Quick Start Guide...
  • Page 42 Quick Start Guide January 2024 Rosemount 3051SMV...
  • Page 43 January 2024 Quick Start Guide 8.3  China RoHS Quick Start Guide...
  • Page 44 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
