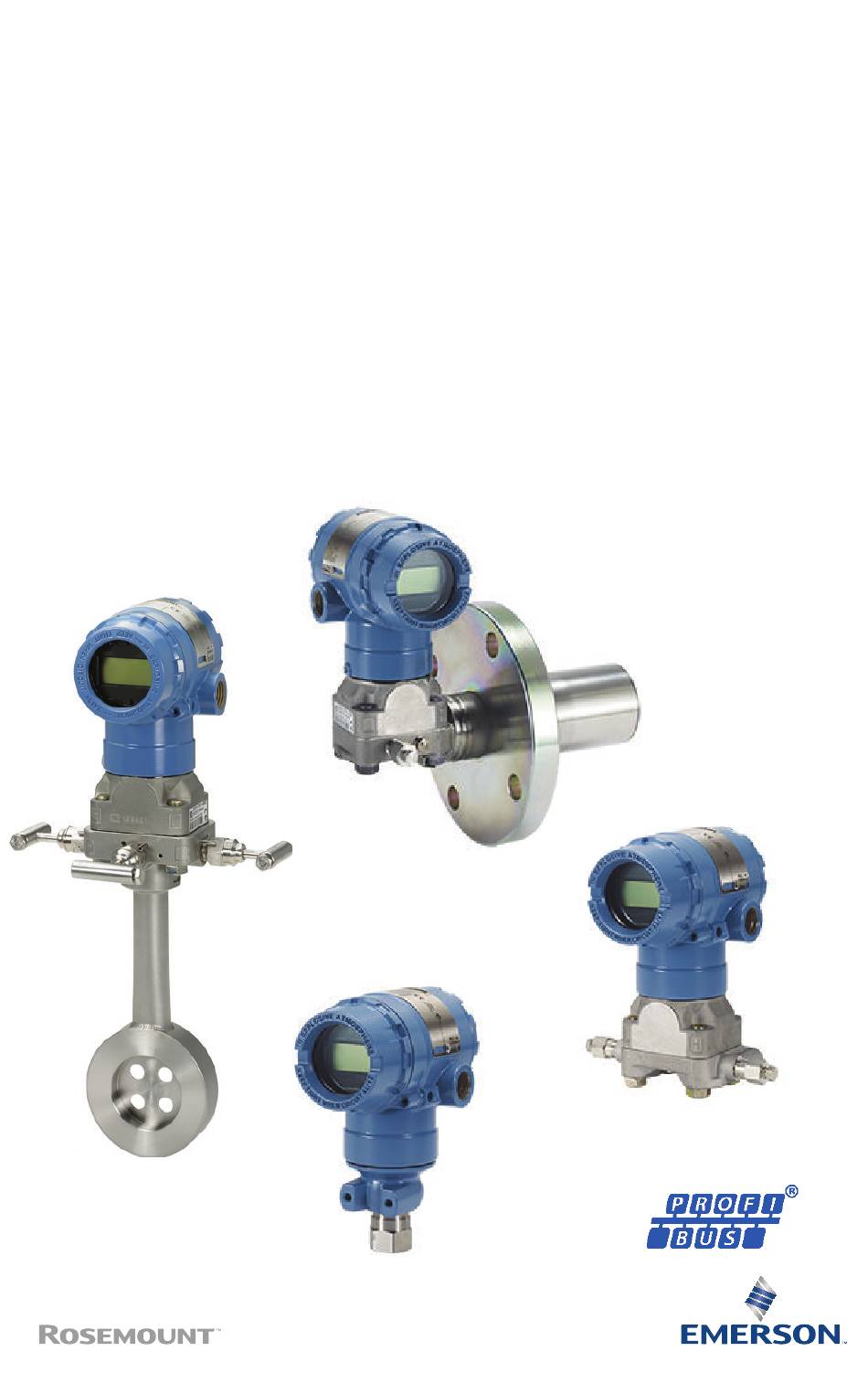

Quick Start Guide
00825-0400-4101, Rev BD
February 2019
™
Rosemount
2051 Pressure Transmitter
and Rosemount 2051CF Series
Flowmeter
®
with PROFIBUS
PA Protocol
