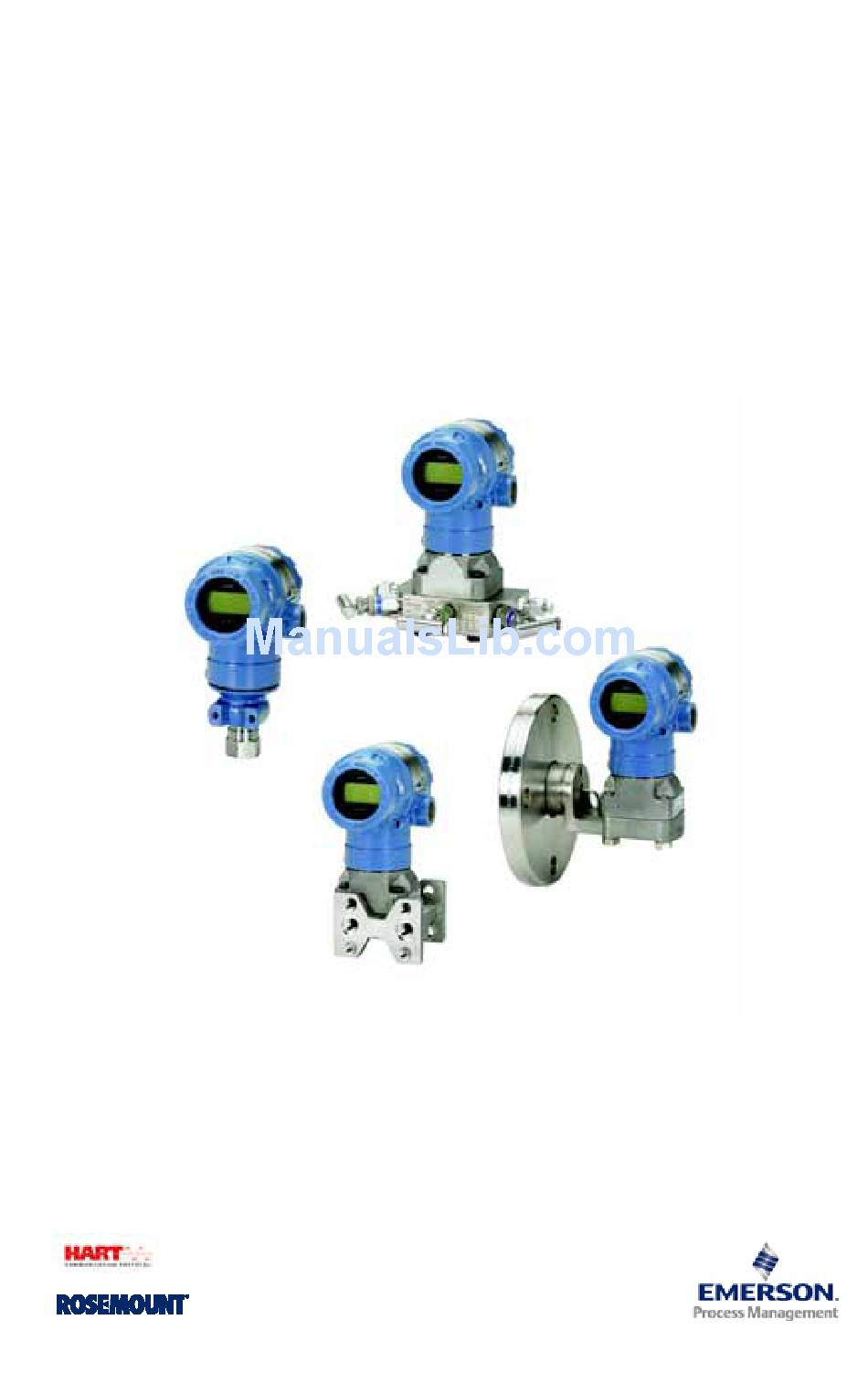

Quick Start Guide
00825-0100-4107, Rev CA
May 2013
Rosemount 2051 Pressure Transmitter and
Rosemount 2051CF Series Flowmeters
with 4-20mA HART and 1-5Vdc Low Power HART
Protocol (Revision 5 and 7)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 2051 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 2051 Series

Summary of Contents for Emerson Rosemount 2051 Series

  • Page 1 Quick Start Guide 00825-0100-4107, Rev CA May 2013 Rosemount 2051 Pressure Transmitter and Rosemount 2051CF Series Flowmeters with 4-20mA HART and 1-5Vdc Low Power HART Protocol (Revision 5 and 7)

  • Page 2: Table Of Contents

    May 2013 Quick Start Guide Notices NOTICE This installation guide provides basic guidelines for Rosemount 2051 transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations. Refer to the 2051 reference manual (document number 00809-0100-4107) for more instruction.

  • Page 3: System Readiness

    1. Download the latest DD at www.emersonprocess.com or www.hartcomm.org. 2. In the Browse by Member dropdown menu, select Rosemount business unit of Emerson Process Management. 3. Select desired Product a. Within , use the HART Universal Revision and Device Revision...

  • Page 4: Step 1: Mount The Transmitter

    May 2013 Quick Start Guide Step 1: Mount the transmitter Liquid applications 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward. Figure 2.

  • Page 5: Pipe And Panel Mounting

    If the transmitter installation requires assembly of the process flanges, manifolds, or flange adapters, follow these assembly guidelines to ensure a tight seal for optimal performance characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by Emerson as spare parts. illustrates Figure 6 common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 6 . If bolt material is Table 2 not shown in , contact the local Emerson Process Management Table 2 representative for more information. Use the following bolt installation procedure: 1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation.

  • Page 7: Inline Gage Transmitter Orientation

    Quick Start Guide May 2013 Table 2. Torque values for the flange and flange adapter bolts Bolt Material Head Markings Initial Torque Final Torque Carbon Steel (CS) 300 in.-lbs. 650 in.-lbs. Stainless Steel (SST) 150 in.-lbs. 300 in.-lbs. Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury.

  • Page 8: Consider Housing Rotation

    May 2013 Quick Start Guide Figure 7. Inline Gage low side pressure port A. Low Side pressure port (atmospheric reference) Step 2: Consider housing rotation To improve field access to wiring or to better view the optional LCD display: 1. Loosen the housing rotation set screw. 2.

  • Page 9: Connect The Wiring And Power Up

    Quick Start Guide May 2013 Figure 8. Transmitter electronics board Without LCD Meter With LCD/LOI Display A. Alarm B. Security Step 4: Connect the wiring and power up Shielded twisted pair cable should be used for best results. Use 24 AWG or larger wire that does not exceed 5,000 feet (1500 meters) in length.
  • Page 10 May 2013 Quick Start Guide Figure 10. Wiring the Transmitter (1-5 Vdc Low Power) Power Supply Voltmeter Installation of the transient protection terminal block does not provide transient protection  unless the 2051 case is properly grounded. Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical ...
  • Page 11 Quick Start Guide May 2013 Figure 11. Grounding A. Trim shield and insulate B. Insulate Shield C. Terminate cable shield drain wire to earth ground D.Internal ground location E. External ground location Grounding for transient terminal block Ground termination is provided on the outside of the electronics housing and inside the terminal compartment.

  • Page 12: Verify Transmitter Configuration

    A Rosemount 2051 DD must be installed on the Field Communicator to verify configuration. Fast key sequences for the latest DD are shown in Table 3 on page 13 For fast key sequences using legacy DD's, contact your local Emerson Process Management representative. Note: Emerson recommends installing the latest DD to access the complete functionality.
  • Page 13 Quick Start Guide May 2013 Table 3. Device Revision 9 and 10 (HART7), DD Revision 1 Fast Key Sequence Function Fast Key Sequence HART 7 HART 5  2, 2, 2, 5, 7 2, 2, 2, 5, 7 Alarm and Saturation Levels ...
  • Page 14 May 2013 Quick Start Guide Figure 12. Internal and External LOI buttons A. Internal buttons B. External buttons Note: Figure 14 on page 16 to confirm external button functionality. Table 4. LOI Button Operation Button SCROLL Left ENTER Right...

  • Page 15: Trim The Transmitter

    Quick Start Guide May 2013 Figure 13. LOI Menu Assign PV HART Revision Switch HART revision mode If the HART configuration tool is not capable of communicating with HART Revision 7, the 2051 will load a Generic Menu with limited capability. The following procedures will switch the HART revision mode from the Generic Menu: 1.
  • Page 16 May 2013 Quick Start Guide 1. Choose your trim procedure a. Analog Zero Trim – Sets the analog output to 4 mA. Also referred to as a “rerange,” it sets the Lower Range Value (LRV) equal  to the measured pressure. The display and digital HART output remains unchanged.

  • Page 17: Safety Instrumented Systems

    (00809-0100-4107) for installation procedure and system requirements. Product certifications Approved Manufacturing Locations Emerson Process Management - Rosemount Inc. — Chanhassen, Minnesota, USA Emerson Process Management — Wessling, Germany Emerson Process Management Asia Pacific Private Limited — Singapore Emerson Process Management — Beijing, China Emerson Process Management —...

  • Page 18: Hazardous Locations Certifications

    May 2013 Quick Start Guide HART Protocol Hazardous Locations Certifications North American Certifications FM Approvals E5 Explosion-Proof and Dust-Ignition-Proof Certificate No: 3032938 Applicable Standards: FM Class 3600 – 1998, FM Class 3615 – 2006, FM Class 3810 – 2005, ANSI/NEMA 250 – 1991, ANSI/IEC 60529 – 2004 Markings: Explosion-Proof for Class I, Division 1, Groups B, C, and D Dust-Ignition-Proof for Class II, Division 1, Groups E, F, G;...
  • Page 19 Quick Start Guide May 2013 I6 Intrinsically Safe Certificate no.: 2041384 Applicable Standards: CSA Std. C22.2 No. 142 - M1987, CSA Std. C22.2 No. 213 - M1987, CSA Std. C22.2 No. 157 - 92, CSA Std. C22.2 No. 213 - M1987, CAN/CSA-E60079-0:07, CAN/CSA-E60079-11:02 Markings: Intrinsically safe for Class I, Division 1, Groups A, B, C, and D when connected in accordance with Rosemount drawings 02051-1008.
  • Page 20 The manufacturer’s instructions for maintenance shall be followed in detail to assure safety during its expected lifetime. 3. The 2051 does not comply with the requirements of IEC 60079-1 Clause 5 for flameproof joints. Contact Emerson Process Management for information on the dimensions of flameproof joints. ND ATEX Dust Certification No.
  • Page 21 Quick Start Guide May 2013 N7 IECEx Type 'n' Certification No. IECExBAS08.0046X Applicable Standards: IEC60079-0: 2011, IEC60079-15-2005-03 Ex nA IIC T4 Gc(–40  T  +70 °C) = 42.4 Vdc max Special Conditions for Safe Use (X): When the optional transient protection terminal block is installed, the apparatus is not capable of withstanding a 500V r.m.s.
  • Page 22 May 2013 Quick Start Guide Loop / Power Groups HART / F fieldbus / Remote Display / Quick Connect / HART OUNDATION = 30V Diagnostics FISCO = 17.5 V HART / F fieldbus / Remote Display / Quick Connect / HART OUNDATION = 300 mA Diagnostics...
  • Page 23 Quick Start Guide May 2013...
  • Page 24 May 2013 Quick Start Guide...
  • Page 25 Quick Start Guide May 2013...
  • Page 26 May 2013 Quick Start Guide...
  • Page 27 Quick Start Guide May 2013...
  • Page 28 F (971) 4 8865465 © 2013 Rosemount Inc. All rights reserved. All marks property of owner. The Emerson logo is a trade mark and service mark of Emerson Electric Co Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
