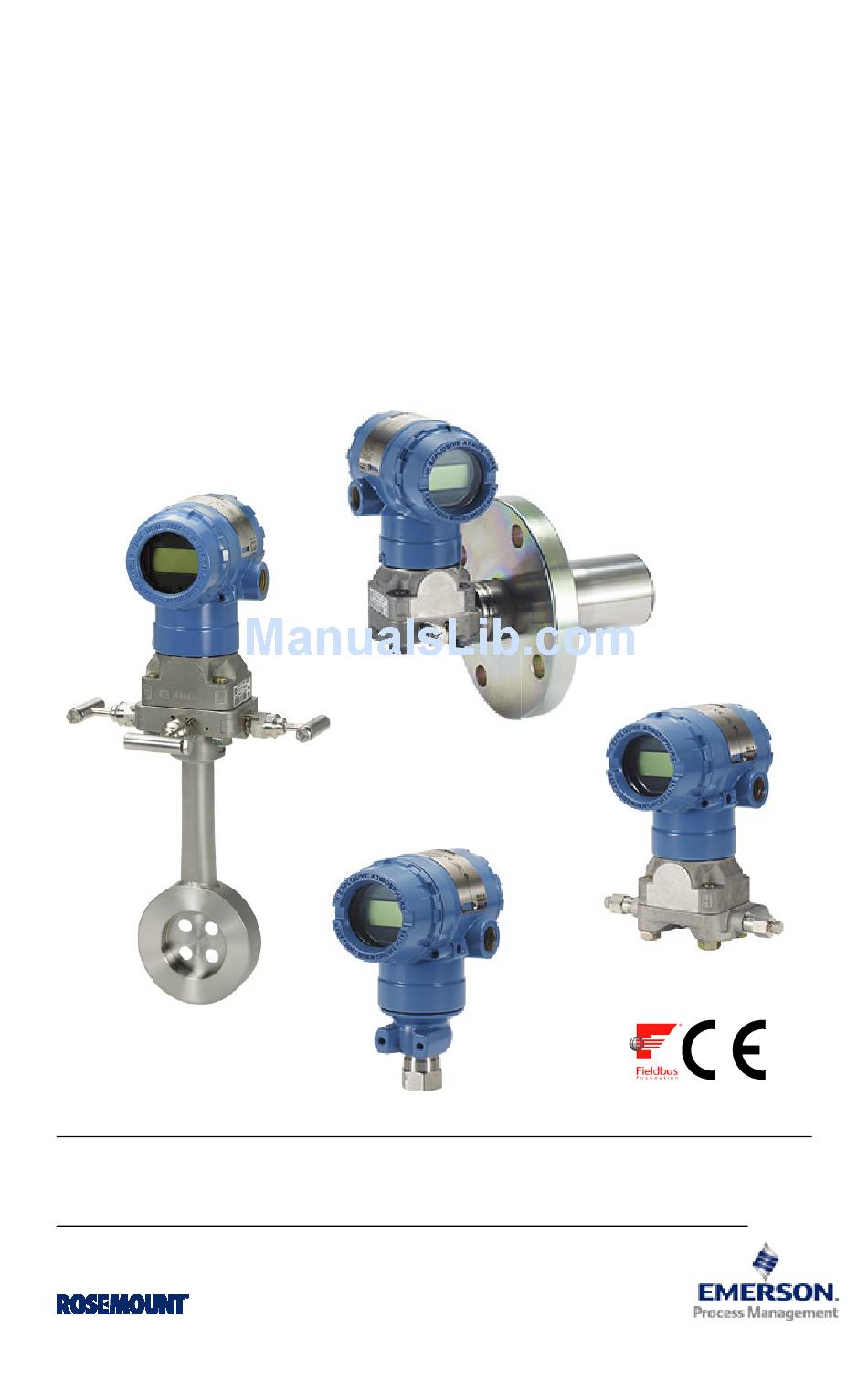

Rosemount 2051 Pressure Transmitter
Rosemount 2051CF Series Flowmeter
Transmitter
with F
OUNDATION
Note
Before installing the transmitter, confirm the correct device driver is loaded on the host
"System readiness" on page 3
systems. See
™ fieldbus protocol
.
Quick Start Guide
00825-0600-4101, Rev AA
October 2014
Advertisement
Table of Contents
Related Manuals for Emerson Rosemount 2051
Summary of Contents for Emerson Rosemount 2051
- Page 1 Quick Start Guide 00825-0600-4101, Rev AA October 2014 Rosemount 2051 Pressure Transmitter Rosemount 2051CF Series Flowmeter Transmitter with F ™ fieldbus protocol OUNDATION Note Before installing the transmitter, confirm the correct device driver is loaded on the host “System readiness” on page 3...
-
Page 2: Table Of Contents
October 2014 Quick Start Guide NOTICE This installation guide provides basic guidelines for Rosemount 2051 transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-Proof, Flame-Proof, or intrinsically safe (I.S.) installations. Refer to the 2051 reference manual (document number 00809-0200-4101) for more instruction. This manual is also available electronically on www.emersonprocess.com/rosemount. -
Page 3: System Readiness
Download the correct device driver at your host vendor download site, www.emersonprocess.com or www.fieldbus.org. Rosemount 2051 device revisions and drivers provides the information necessary to ensure you have the correct device Table 1 driver and documentation for your device. -
Page 4: Transmitter Installation
October 2014 Quick Start Guide Transmitter installation Step 1: Mount the transmitter Liquid applications Coplanar In-Line 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward. - Page 5 If the transmitter installation requires assembly of the process flanges, manifolds, or flange adapters, follow the assembly guidelines to ensure a tight seal for optimal performance characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by Emerson as spare parts. illustrates Figure 3 on page 6 common transmitter assemblies with the bolt length required for proper transmitter assembly.
- Page 6 . If bolt Table 2 on page 7 material is not shown in , contact a local Emerson Process Management Table 2 representative for more information. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation.
- Page 7 October 2014 Quick Start Guide Table 2. Torque Values for the Flange and Flange Adapter Bolts Bolt material Head markings Initial torque Final torque 300 in.-lbs. 650 in.-lbs. Carbon Steel (CS) 150 in.-lbs. 300 in.-lbs. Stainless Steel (SST) O-rings with flange adapters Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury.
-
Page 8: Tagging
October 2014 Quick Start Guide Whenever the flanges or adapters are removed, visually inspect the o-rings. Replace them if there are any signs of damage, such as nicks or cuts. If you replace the o-rings, re-torque the flange bolts and alignment screws after installation to compensate for seating of the PTFE o-ring. -
Page 9: Housing Rotation
October 2014 Quick Start Guide Figure 6. Commissioning Tag Commissioning Tag Commissioning Tag DEVICE ID: DEVICE ID: 0011512051010001440 -12169809172 001151AC00010001440-12169809172 DEVICE REVISION: 1.1 DEVICE REVISION: 2.1 PHYSICAL DEVICE TAG PHYSICAL DEVICE TAG DEVICE ID: DEVICE ID: 0011512051010001440 -12169809172 001151AC00010001440-12169809172 Device Barcode Device Barcode DEVICE REVISION: 1.1 DEVICE REVISION: 2.1... -
Page 10: Set The Switches
October 2014 Quick Start Guide 3. If the desired location cannot be achieved due to thread limit, rotate the housing counter clockwise to the desired location (up to 360° from thread limit). 4. Re-tighten the housing rotation set screw to no more than 7 in-lbs when desired location is reached. -
Page 11: Wire, Ground, And Power Up
October 2014 Quick Start Guide Step 5: Wire, ground, and power up Use of copper wire of sufficient size to ensure that the voltage across the transmitter power terminals does not drop below 9 vdc. Power supply voltage can be variable, especially under abnormal conditions such as when operating on battery backup. -
Page 12: Power Supply
October 2014 Quick Start Guide Note Do NOT ground the cable shield at the transmitter; if the cable shield touches the transmitter housing, it can create ground loops and interfere with communications. b. Continuously connect the cable shields to the power supply ground. c. -
Page 13: Configure
October 2014 Quick Start Guide Locating devices Devices are frequently installed, configured, and commissioned over time by different personnel. A “Locate Device” capability has been provided to assist personnel in finding the desired device. From the device “Overview” screen, click the “Locate Device” button. This will launch a method allowing the user to display a “Find me”... - Page 14 October 2014 Quick Start Guide Figure 10. Configuration Flowchart Start 6. Set Low Cutoff: 1. Verify Device Tag: Device Configuration LOW_CUT PD_TAG Here 7. Set Damping: 2. Check Switches and PRIMARY_VALUE_ Software Write Lock DAMPING 8. Set up LCD Display 3.
-
Page 15: Before You Begin
October 2014 Quick Start Guide Figure 11. Basic Configuration Menu Tree (Calibration) (Overview ) Primary Value Pressure Sensor Trim Calibration Sensor Limits Device Information Restore Factory Calibration Locate Device Last Calibration Points Scale Gauges Calibration Details (Device Information ) (Materials of Construction ) Identification (1) Sensor Revisions... - Page 16 October 2014 Quick Start Guide 2. To check the switches (see Figure 8 a. The write lock switch must be in the unlocked position if the switch has been enabled in software. b. To disable the Software Write Lock (devices ship from the factory with the software write lock disabled): Navigation: from the overview screen, select “Device Information”...
- Page 17 October 2014 Quick Start Guide d. If L_TYPE is “Direct”, the AI Block may be placed in AUTO mode to return the device to service. Guided Setup does this automatically. 5. If L_TYPE is “Indirect” or “Indirect Square Root”, set “OUT_SCALE” to change engineering units.
- Page 18 October 2014 Quick Start Guide b. Change any values as necessary. c. Return to the “Overview” screen. d. If Mode is “Not in Service”, click on the “Change” button, and then click on “Return All to Service”. Note Step 10 If hardware or software write protection is not needed, can be skipped.
-
Page 19: Zero Trim The Transmitter
October 2014 Quick Start Guide DP Flow example Parameters Enter data Channel L_Type Square Root XD_Scale 0 - 100 inH 0 @ 68 °F Note Select only the units that are supported by the device. Out_Scale 0 - 20 GPM Low_Flow_Cutoff 0 @ 68 °F DP Level example... -
Page 20: Product Certifications
October 2014 Quick Start Guide... - Page 21 October 2014 Quick Start Guide...
- Page 22 October 2014 Quick Start Guide...
- Page 23 October 2014 Quick Start Guide...
- Page 24 F (971) 4 8865465 © 2014 Rosemount Inc. All rights reserved. All marks property of owner. The Emerson logo is a trade mark and service mark of Emerson Electric Co Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
