Some 3D settings explained

Dark time

Banding can be caused if the image is displayed before each
eye of the 3D switching glasses or ZScreen is not fully open.
Dark Time allows you to minimize this effect.

Eye swap

The outgoing 3D frames are in pairs - the dominant frame
being presented first. You can determine which frame should
be the dominant one.
By convention the default setting is Left.
Operating Guide
Using the projector

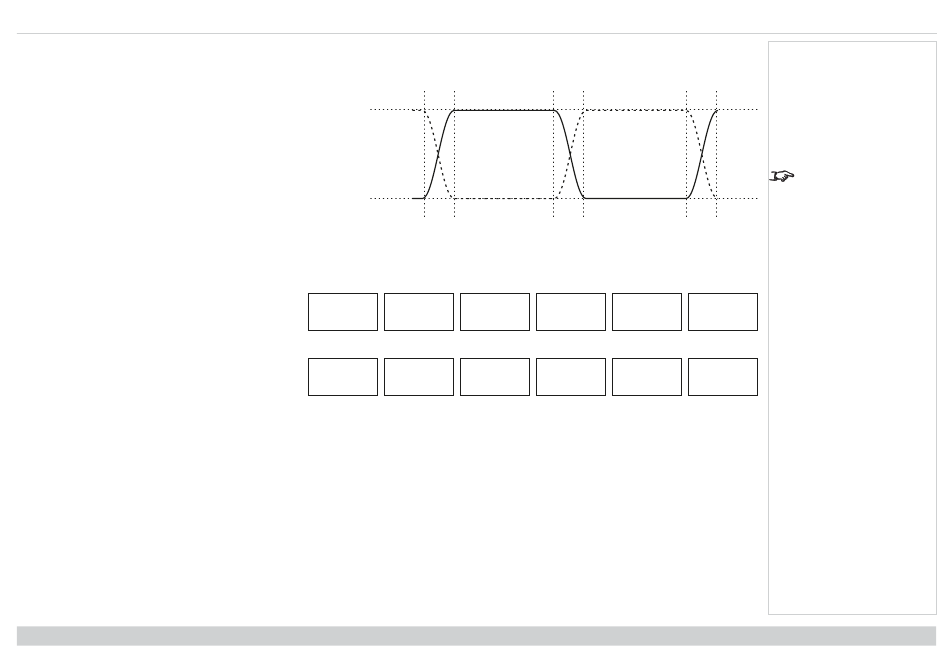

Fully On
Fully Off
Dark
Time
LEFT 1 RIGHT 1 LEFT 2
RIGHT 1 LEFT 1 RIGHT 2
Left Right
Dark
Time
RIGHT 2 LEFT 3
Dominance Left
LEFT 2 RIGHT 3
Dominance Right
Digital Projection Ltd. E-Vision Laser 13000 WU Series
Notes
In order to achieve
maximum light output and
a smooth grayscale, whilst
eliminating ghosting, the
following procedure is
recommended:
1. Set Dark Time to a
value appropriate to the
glasses or ZScreen, say
1.3 ms or 1.95 ms.
2. Adjust Sync Offset time
to eliminate ghosting and
Dark
achieve a smooth
Time
grayscale.
3. Repeat steps 1 and 2
until the best result is
obtained.
RIGHT 3
LEFT 3
