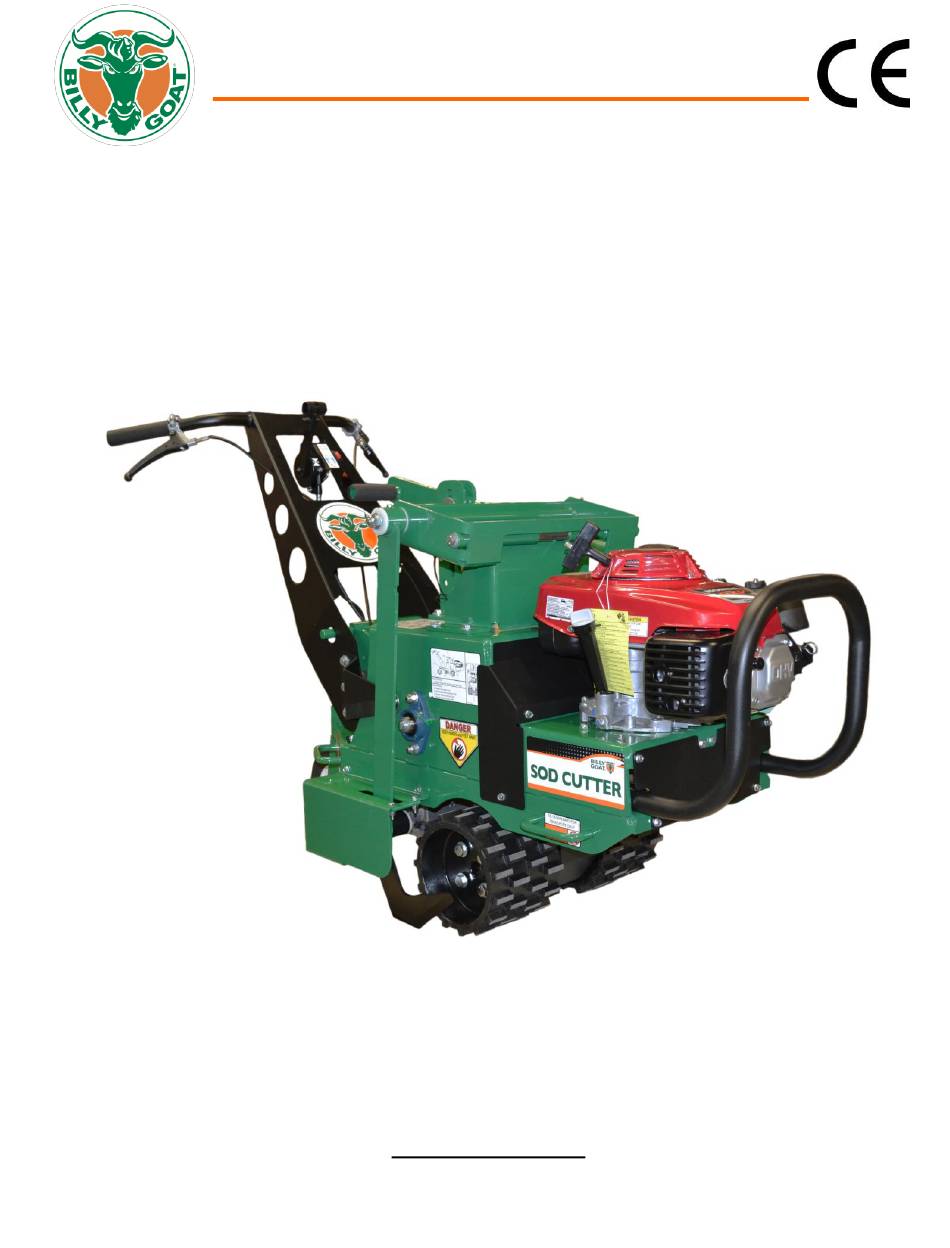

- Page 1 SC180HEU Owner’s Manual BILLY GOAT SOD CUTTER Owner's Manual SC180HEU Beginning Serial #: 100515001 Original Instructions IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE Part No 371515 Form No F102215B...
-
Page 2: Table Of Contents
SC180HEU Owner’s Manual ABOUT THIS MANUAL ® THANK YOU for purchasing a BILLY GOAT Sod Cutter. Your new machine has been carefully designed and manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your machine in top running order. Read this manual carefully before assembling, operating, or servicing your equipment. -
Page 3: Serial Plate Data And Specifications
SC180HEU Owner’s Manual SERIAL PLATE DATA Record the model number, serial number, date of purchase, and where purchased. Purchase Date: Purchased From: SPECIFICATIONS SC180HEU Engine: HP 5.5 HP (4.1 kw) Engine: Model GXV160UH2N1AH Engine: Type Honda Engine: Fuel Capacity 1.6 qt. (1.5 L) Engine: Oil Capacity 0.69 qt. -
Page 4: Sound And Vibration
SC180HEU Owner’s Manual SOUND SOUND LEVEL 84 dB(a) at Operator Position 104 dB(a) Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 7-11-13 under the conditions listed below. Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit for the sound power level for your model. -
Page 5: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Sod Cutter. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. -
Page 6: Packing Checklist & Assembly
SC180HEU Owner’s Manual PACKING CHECKLIST Your Billy Goat Sod Cutter is shipped from the factory in one crate, completely assembled. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box. PUT OIL IN ENGINE BEFORE STARTING CHECK GREASE IN BEARING PER SERVICE LABEL ON UNIT. -
Page 7: Operation Controls/Operation
SC180HEU Owner’s Manual OPERATION Note: Item numbers in ( ) will be referenced in the Parts Illustration and Parts List on pages 12-20 Like all mechanical tools, reasonable care must be used when operating machine. Inspect machine work area and machine before operating. Make sure that all operators of this equipment are trained in general machine use and safety. - Page 8 SC180HEU Owner’s Manual 1. Choose a depth of cut. See instruction label on the unit (see fig 4). Note: Sod should be cut leaving a minimum amount of dirt (1/4”-3/8”) attached to the roots. This minimizes its weight for removal and encourages faster growth when reused.
-
Page 9: Maintenance
Replace blade and traction belts Note: Blade, and drive belts and chains are normal wear items. These should be inspected on a regular basis and replaced if worn. Also see your Billy Goat Dealer for servicing your machine. BELT REPLACEMENT Note: See Fig. - Page 10 SC180HEU Owner’s Manual DRIVE BELT 1. Follow steps 1-4 in the blade belt removal section. The blade belt will need to be removed in order to remove the drive belt. 2. Loosen the belt finger (119) on the idler arm (20) and remove the belt from the idler arm by lifting it over the idler pulley (39) and arm.
-
Page 11: Troubleshooting And Warranty Procedure
The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT Dealer. ... -
Page 12: Illustrated Parts & Part Lists
SC180HEU Owner’s Manual SC180HEU ENGINE ASSEMBLY PARTS DRAWING 124 127 Part No 371515 Form No F102215B... - Page 13 SC180HEU Owner’s Manual SC180HEU ENGINE ASSEMBLY PARTS LIST Item no. Part no. Description 371100 FRAME WA SC 900615 ENGINE GXV 160 371400 TUBE BUMPER SC 371101 CASTER MOUNT WA 371264 CLUTCH SC 371102 CASTER RIG WA 520061 PULLEY IDLER 5L INSIDE 4"...
- Page 14 SC180HEU Owner’s Manual SC180HEU BLADE ASSEMBLY PARTS DRAWING NOTE: When installing seals, make sure spring side of seal is away from bearing Part No 371515 Form No F102215B...
- Page 15 SC180HEU Owner’s Manual SC180HEU BLADE ASSEMBLY PARTS LIST Item no. Part no. Description 371100 FRAME WA 371107 PIVOT DEPTH WA 371106 BLADE DEPTH WA 371108-S BLADE ARM SERVICE 371289 HEIGHT DEPTH BRACKET LH 371205 GEAR BOX "T" 2:1 REDUCTION 371219...
- Page 16 SC180HEU Owner’s Manual SC180HEU HANDLE ASSEMBLY PARTS DRAWING TO IDLER ARM TO TRANS TO ENGINE TO CLUTCH Part No 371515 Form No F102215B...
- Page 17 SC180HEU Owner’s Manual SC180HEU HANDLE ASSEMBLY PARTS LIST Item no. Part no. Description 371100 FRAME WA 371613 HANDLE SC WA 371209 HANDLE BRACKET MOUNT 371207 GUARD FRONT 371242 GUARD MID RIGHT 371103 GUARD REAR WA 371233 GUARD MID LEFT 371204...
- Page 18 SC180HEU Owner’s Manual SC180HEU TRANSMISSION ASSEMBLY PARTS DRAWING 63 76 47 41 Part No 371515 Form No F102215B...
- Page 19 SC180HEU Owner’s Manual SC180HEU TRANSMISSION ASSEMBLY PARTS LIST Item no. Part no. Description 371100 FRAME WA SC 371201 TRANSMISSION RT310 371200 WHEEL DRIVE SOD CUTTER 371211 GUARD AXLE 371105 IDLER ARM WA 371204 SPEED CONTROL SC 810700 PILLOW BLOCK 1"...
- Page 20 SC180HEU Owner’s Manual SC180HEU BELT AND CHAIN ASSEMBLY PARTS DRAWING ON LOWER GROOVE ON UPPER GROOVE OF CLUTCH OF CLUTCH SC180HEU BELT AND CHAIN ASSEMBLY PARTS LIST Item no. Part no. Description 371270 BELT GATES 6732 371296 CHAIN #40 X 44 PITCHES...
-
Page 21: Declaration Of Conformity
SC180HEU Owner’s Manual Руccкий Latviešu English Suomi Slovenščina български език Français Nederlands Čeština Slovák Ελληνικά Norsk Svenska Dansk Hrvatski Polski Türkçe Deutsch Magyar Português Română Español Italiano Lietuvių eesti keel Δήλωση συμμόρφωσης ΕΚ Deklaracja zgodności UE EC Declaration of Conformity Декларация... - Page 22 SC180HEU Owner’s Manual Directive: 2006/42/EC Irányelv: 2006/42/EC Diretiva: 2006/42/EC Директива: 2006/42/EC Οδηγία: Директива: 2006/42/EC 2006/42/EC Směrnice č. 2006/42/EC Direktiva: 2006/42/EC Directiva: 2006/42/EC Direktiv: 2006/42/EF Direttiva: 2006/42/EF Direktiva: 2006/42/EF Richtlinie: 2006/42/EG Direktyva: 2006/42/EG Smernica: 2006/42/EG Direktīva: Directriz: 2006/42/EC 2006/42/EC Direktiv: 2006/42/EC Direktiiviga: 2006/42/EÜ...
- Page 23 SC180HEU Owner’s Manual Miejsce produkcji / Osoba odpowiedzialna za Manufacturing Place / Keeper of Documentation Τόπος κατασκευής / Υπεύθυνος τήρησης αρχείων Място на производство / Архивар przechowywanie dokumentów τεκμηρίωσης Místo výroby / Držitel dokumentace Gyártás helye / A dokumentáció őrzője Local de Fabrico / Responsável pela Documentação...
