AEH Owner's Manual

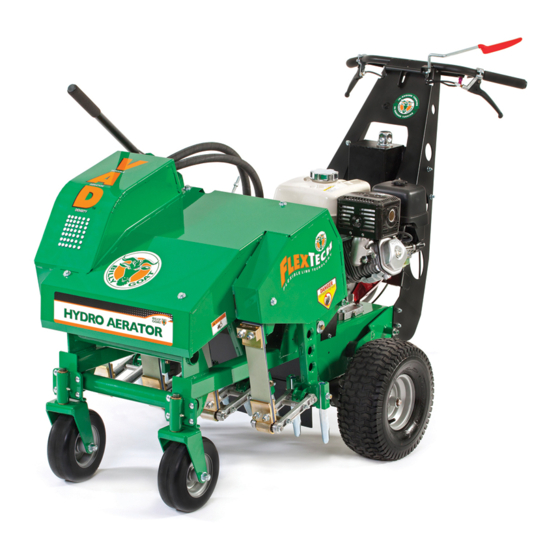

HYDRO AERATOR Owner's Manual
FOAM TIRES
Reduces chance for flat
tires and also adds
weight to the machine
P/N 362601
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
Part No 362500
AE1300H
Beginning Serial #: 020216001
Accessories
CHARIOT KIT
Allows the user to ride
behind the unit. Saving
fatigue from walking.
P/N 362609
Original Instructions
1
SOLID SPIKE TINE
Complete set of spike
tines for the AE's arms.
P/N 362611
TINE KIT
Individual coring tine for
replacement of worn or
broken tines.
P/N 360100
362500_C_HI

Advertisement

loading
Need help?

Need help?

Do you have a question about the AEH Series and is the answer not in the manual?

Questions and answers

Related Manuals for Billy Goat AEH Series

Summary of Contents for Billy Goat AEH Series

  • Page 1 AEH Owner’s Manual HYDRO AERATOR Owner's Manual AE1300H Beginning Serial #: 020216001 Accessories FOAM TIRES CHARIOT KIT SOLID SPIKE TINE TINE KIT Reduces chance for flat Allows the user to ride Complete set of spike Individual coring tine for tires and also adds behind the unit.

  • Page 2: Table Of Contents

    AEH Owner’s Manual CONTENTS SPECIFICATIONS AND SAFETY INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY OPERATION MAINTENANCE TROUBLESHOOTING ILLUSTRATED PARTS & PARTS LIST 11-22 Part No 362500 362500_C_HI...
  • Page 3 AEH Owner’s Manual SPECIFICATIONS AE1300H Engine: HP 13 (9.7 kW) Engine: Model GX390UTQA2 Engine: Type Honda OHV Engine: Fuel Capacity 6.4qt. (6.1 L) Engine: Oil Capacity 1.16 qt. (1.1 L) Total Unit Weight: 516# (234 Kg) Max. operating slope SAFETY WARNING This product can expose you to chemicals including gasoline engine exhaust, which is known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause...

  • Page 4: Instruction Labels

    INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Aerator. If any labels are damaged or missing, replace them before operating this equipment. Part numbers from the Illustrated Parts List are provided for convenience in ordering replacement labels.

  • Page 5: Packing Checklist & Assembly

    AEH Owner’s Manual PACKING CHECKLIST Your Billy Goat is shipped from the factory in one carton, completely assembled. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box. PUT OIL IN ENGINE BEFORE STARTING PARTS BAG &...
  • Page 6 AEH Owner’s Manual CONTROLS Operator Presence Tine Engage Lever On/Off Switch Reverse Drive Lever Forward Drive Lever Pull Start Parking Brake Part No 362500 362500_C_HI...

  • Page 7: Operation

    AEH Owner’s Manual OPERATION AERATING OPERATION NOTE: NEVER PARK THIS UNIT ON A SLOPE OF ANY KIND. Always keep tines in the up position when parking the unit. TINES RAISING/LOWERING: The tines are raised or lowered into the ground by operating the tine engagement lever on the right of the machine.

  • Page 8: Maintenance

    Remove filter by un-screwing counter-clockwise from filter base. When replacing filter (Billy goat P/N 362396), it is recommended to spread a thin coat of oil on the rubber gasket of the filter prior to re-installing.
  • Page 9 AEH Owner’s Manual NOTE: Items in ( ) can be referenced in the Parts Illustrations and Parts Lists on pages 12-23. INDIVIDUAL TINE REPLACEMENT (See page 14 and 15 for Parts Illustration and Parts list) While it is possible to replace only one tine at a time, it is recommended to replace tines in pairs on a tining arm. To replace tines, simply remove the 3/8”...
  • Page 10 AEH Owner’s Manual DRIVE BELT REPLACEMENT (See page 12 and 13 for Parts Illustration and Parts list) READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Disconnect spark plug wire. Loosen four screws (item 112) holding belt cover (item 10) and remove the cover. Examine condition of belt.

  • Page 11: Troubleshooting

     The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT Dealer. The owner must present the remaining half of the Warranty Registration Card, or, if this is not available, the invoice or ...
  • Page 12 AEH Owner’s Manual AE1300H PARTS DRAWING ENGINE 26 12 255 256 Part No 362500 362500_C_HI...
  • Page 13 AEH Owner’s Manual AE1300H PARTS LIST ENGINE Item No. Part No. Description 362602 ENGINE BASE WA 430366 ENGINE HONDA GX390 13 HP 362225 PUMP PK 12cc VARIABLE DISPLACEMENT 362327 GUARD BELT AE900 362337 BELT HP GP AMD EFF. LENGTH 64.04" 362111 PLATE PUMP MOUNT 362275...
  • Page 14 AEH Owner’s Manual AE1300H PARTS DRAWING TINE 129 142 Part No 362500 362500_C_HI...
  • Page 15 AEH Owner’s Manual AE1300H PARTS LIST TINE Item No. Part No. Description Item No. Part No. Description 362605 HOOD AE900 362212 RING RETAINING EXTERNAL 1.00" 362606 TINE ARM ASSY RIGHT AE900H SERVICE 610305 NUT LOCK 1/2" - 20 THIN 362603 TINE ARM ASSY LEFT AE900H SERVICE 8041039 SCREWCAP 5/16"-18 X 4""...
  • Page 16 AEH Owner’s Manual AE1300H PARTS DRAWING DRIVE 194 137 Part No 362500 362500_C_HI...
  • Page 17 AEH Owner’s Manual AE1300H PARTS LIST DRIVE Item No. Part No. Description 362100 ENGINE BASE WA 362352 WHEEL 15" X 6.00 - 6 TURF SAVER 362106 CAM SPEED CONTROL WA AE900 362329 BRACKET TRANSAXLE MOUNT 362107 BRACKET CASTER WA AE900 362118 SKID PLATE WA 362306...
  • Page 18 AEH Owner’s Manual AE1300H PARTS DRAWING HANDLE Part No 362500 362500_C_HI...
  • Page 19 AEH Owner’s Manual AE1300H PARTS LIST HANDLE Item No. Part No. Description 362602 ENGINE BASE WA 362604 HANDLE WA 362134 TANK OIL WA AE900H 362396 FILTER SPIN ON 362119 BRACKET LH HANDLE MOUNT WA 351209 MAGURA CONTROL 362267 BAIL ASSY AE900 351269 RUBBER DEFLECTOR 362269...
  • Page 20 AEH Owner’s Manual AE1300H PARTS DRAWING LIFT Part No 362500 362500_C_HI...
  • Page 21 AEH Owner’s Manual AE1300H PARTS LIST LIFT Item No. Part No. Description 362602 ENGINE BASE WA 362410 HANDLE TINE WA 362223 BEARING LIFT 362259 BRACKET HANDLE SUPPORT 500267 GRIP HANDLE 1" X 5.5" 362108 TINE FRAME LIFT SHAFT WA 362245 BEARING AND FLANGETTE ASSY .75"...
  • Page 22 AEH Owner’s Manual AE1300H PARTS DRAWING PUMP Part No 362500 362500_C_HI...
  • Page 23 AEH Owner’s Manual AE1300H PARTS LIST PUMP Item No. Part No. Description 362225 PUMP PK 12cc VARIABLE DISPLACEMENT 362233 MOTOR TINE DRIVE 362279 HOSE HYDRAULIC W#10 JIC 890359 SCREW SELF TAP 1/4" - 20 X 5/8" HWH TYPE F 8041032 SCREWCAP 3/8"...
