2

REPLACEMENT PARTS

FLAIL BLADES

P/N 350251.
A complete replacement
set. 52 of our high quality
flail blades for your CR.
Includes 8 new lock clips
for replacement installa-
tion.

FLAIL SHAFTS

P/N 350185.
A full set of four shafts for
replacement. Includes 8
new lock clips for replace-
ment installation.
Note: We recommend
replacing the shafts when
you replace flails.

DRIVE BELT

P/N 350207.
Original Equipment drive
belt for your CR.

SPACER BUMPERS

P/N 350258.
A complete replacement
set. 44 of 1/2" spacer
bumpers and 4 of 1/4"
spacer bumpers
ACCESSORIES

SLICING REEL

P/N 350252.
A complete verti-slicing
reel for your CR. 20" wide
reel for use in grasses
that require vertical
cutting, and for assisting
in lawn overseeding
projects.

SLICING BLADES

P/N 350187.
A full set of twenty blades
for replacement. Includes
40 new capscrews, and
lock nuts for replacement
installation.
Part No. 350245
1
T h a n k Y o u f o r S e l e c t i n g
Operator Owner's Manual
CR450S, CR550, CR550HC, CR550H
3
ENGINE: H.P.
ENGINE: TYPE
ENGINE: FUEL CAP.
ENGINE: OIL CAP.
WEIGHT: UNIT
WEIGHT: SHIPPING
MAX. ENGINE OPERATING SLOPE
Page 1 of 12

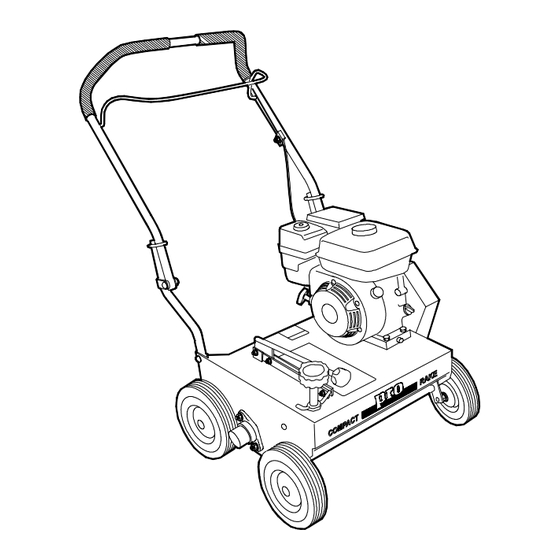

The Powerful CR
POWER RAKE

Specifications

CR450S
CR550HC
4.5 (3.35 kW)
5.0 (3.73 kW)
SUBARU OHV
HONDA OHC
2.8 qt. (2.7 L)
2.1 qt. (2.0 L)
0.63 qt. (0.6 L)
0.63 qt. (0.6 L)
125# (56.8 kg)
125# (56.8 kg)
150# (68.2 kg)
150# (68.2 kg)
20°
20°
R
CR550
CR550H
5.5 (4.1 kW)
5.5 (4.1 kW)
B&S OHV
HONDA OHV
3.0 qt. (2.84 L)
3.88 qt. (3.41 L)
0.66 qt. (0.62 L)
0.69 qt. (0.65 L)
125# (56.8 kg)
129# (58.6 kg)
150# (68.2 kg)
150# (68.2 kg)
15°
20°
Form No. F011003A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR450S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Billy Goat CR450S

  • Page 1: Flail Blades

    4 of 1/4" spacer bumpers POWER RAKE ACCESSORIES Operator Owner's Manual SLICING REEL P/N 350252. CR450S, CR550, CR550HC, CR550H A complete verti-slicing reel for your CR. 20" wide reel for use in grasses Specifications that require vertical cutting, and for assisting in lawn overseeding projects.
  • Page 2 PARTS DRAWING CR450S, CR550, CR550HC, CR550H Part No. 350245 Form No. F011003A Page 8 of 12...
  • Page 3 PARTS item CR550 CR550H CR550HC CR450S LIST Part No. Part No. Part No. Part No. Pulley 3.0" O.D. 350101-01 350101 350101 350101 Pulley 5.5" O.D. X ¾" 350206 350206 350206 350206 Wheel 8" Semi-Pneu White 350236 350236 350236 350236 Bar Strap...
  • Page 4 FLAIL REEL ASSY 350241 item PARTS CR500 LIST Part No. SHAFT FLAIL BLADE 350141 BLADE FLAIL 350205 SPACER BUMPER 5/8" x 1/4" 350143 SPACER BUMPER 5/8" x 1/2" 350144 SHAFT WA FLAIL REEL 350145 CLIP LOCK 1/2" 350146 WASHER 1/2 SAE 8172011 FLAIL BLADE KIT 350251 FLAIL SHAFT KIT 350185...
  • Page 5 SPACER BUMPER KIT 350258 SLICING BLADE KIT 350187 PARTS item PR500 PARTS item PR500 LIST Part No. LIST Part No. BLADE SLICING REEL 350147 SPACER BUMPER 5/8" x 1/4" 350143 SCREWCAP 1/4-20 x 3/4, GR. 5 350151 SPACER BUMPER 5/8" x 1/2" 350144 NUT LOCK 1/4-20 8160001...
  • Page 6: Troubleshooting

    WARRANTY PROCEDURE 22.1 Contact your nearest engine manufacturer's Please fill in the WARRANTY CARD and send the upper part to Billy Goat. authorized servicing dealer. (See page 7) The WARRANTY terms are stated on the lower part which remains with the user.
