Initial Setup Menu; Basic Setup; Special Setup; System Log - Pro Spot SP-5 DP Instruction Manual

To enter the "Initial Setup Menu" power the unit on;
while the display views the unit logo, press the Setup
Key - 3 -. Use the keys - 6 - and - 8 - to select the
parameter and the Right Regulation Knob - 5 - to
adjust the modificable values.

BASIC SETUP

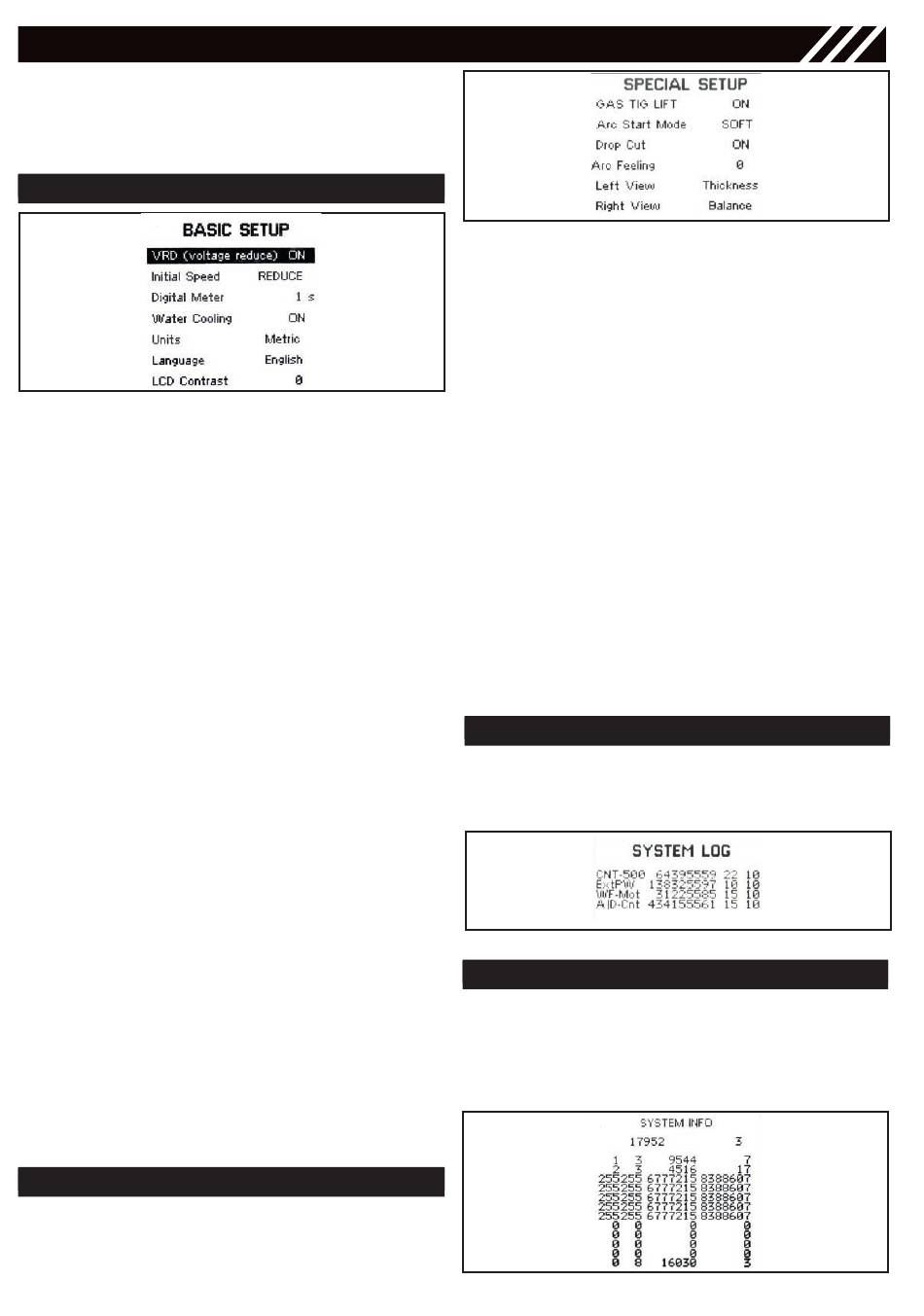

Figure 6 - Basic Setup Screen
VRD - ON/OFF
Selection of the "Voltage Reduction Device" ON or
OFF. As default this is OFF.
If ON the unit reduce the OCV below a safety level
at the end of welding. Automatically reset to normal
value when the electrode get in touch with the
workpiece.
INITIAL SPEED - reduced/normal
Reduced Initial Speed setting reduces the speed of
the wire feeding on the workpiece to optimize the
striking.
D.M. DIGITAL METER - OFF/MEASURE TIME
1''÷10'' (ON): selection of how many seconds the
welding parameters, voltage and current, have to be
displayed after you stop welding. It is possible to set
from 1'' to 10 '', by default, set time is 2''.
OFF: the display views always, even during welding,
the screen of the performed welding process.
WATER COOLING
Activate or deactivate Water Cooling control
UNITS
Select the unit of lenght between meters or inches or
both meters/inches.
LANGUAGE
Select language of your choice
LCD CONTRAST
Setting of the LCD display contrast according to the
environment temperarure and brightness.
Press the "Mode Key" - 1 - to go back to the welding
process screen and save set parameters. The
display views the screen of the last welding process
performed by the unit.
RESET
Press and hold "SAVE & RECALL" Key - 4 - to reset
all parameters and go back to the parameters set
as default.

SPECIAL SETUP

From "initial setup menu" press setup key - 3 - to
enter special setup menu.

INITIAL SETUP MENU

EN-9
Figure 7 - Special Setup Screen
GAS TIG LIFT
Select ON if you want to use tig torch with gas valve
in lift mode (without using the machine internal valve)
ARC START MODE
Type of arc starting selection, choose between SOFT
or HARD
DROP CUT
ON: in MIG welding processes (GMAW), wire gets
sliced through cleanly to get a better arc re-ignition.
By default set is ON.
ARC FEELING
In MIG welding processes (GMAW) it allows to
enlarge the electric arc if set to negative, to restrict it
if positive. The value is adjustable from -16 to +16.
LEFT VIEW
It allows to select the value to be displayed on the
left side of the display in MIG welding processes
(GMAW): Thickness, Current, Speed .
By default set is "Thickness".
RIGHT VIEW
It allows to select the value to be displayed on the
right side of the display in MIG welding processes
(GMAW): Balance (Arc Length), Voltage.
By default set is "Balance".

SYSTEM LOG

From "Special Setup" press setup key -
system info. It shows:
• Expansion pcb installed on the machine
• Software version of PCBs
Figure 12 - System Log Screen

SYSTEM INFO

From "System Log" press setup key -
System Info. It shows:
• Alarms sequence
• Type of alarm
• Time of unit ON
• Arc ON time
Figure 13 - System Info Screen
- to enter
3
- to enter
3
