Unit Controls - Pro Spot SP-5 DP Instruction Manual

E
A
G
C

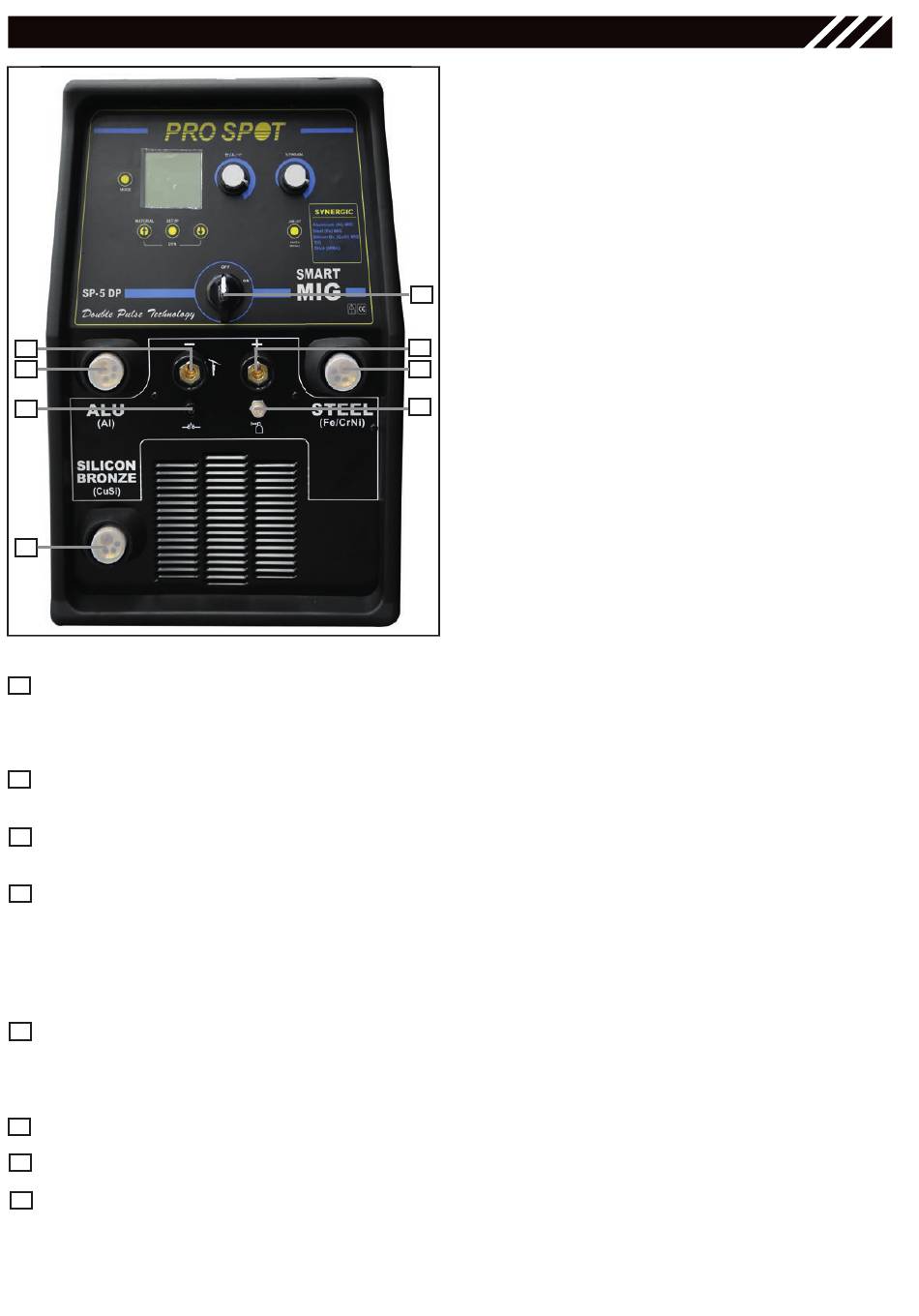

Figure 4 - Front View
T1 - Centralized Female Connector for the
A
connection of the torch for Aluminum welding, of
Push-Pull, Spool Gun and Anolog/Digital Remote
Control Torches.
B T2 - Centralized Female Connector for the
connection of the torch for Steel and CrNI welding.
T3 - Centralized Female Connector for the
C
connection of the torch for Silicon Bronze welding.
D
Positive Current Socket (+)
• for the connection of the earth cable on TIG
welding
• for the connection of the welding cable or
earth cable according to the type of electrode
in MMA welding
Negative Current Socket (-)
E
• for the connection of the earth cable on MIG/
MAG welding
• for the connection of the torch on TIG welding
F Torch Gas Connection for TIG welding
G
Torch Trigger Connection for TIG welding
H
Mains switch for power ON and OFF

UNIT CONTROLS

H
D
B
F
EN-7
