Remote Control

Remote Control Input — This 3-pin, captive screw port allows an audio controller to control
E
volume and mute levels remotely. See
MediaLink controller.
Wiring for remote control
Options for remote control include the Extron VC 50, VCM 100 AAP, VCM 100 MAAP, VCM 200 series, and
MLA VC10 Plus. Third party 10k potentiometer volume controllers can also be connected to this port.

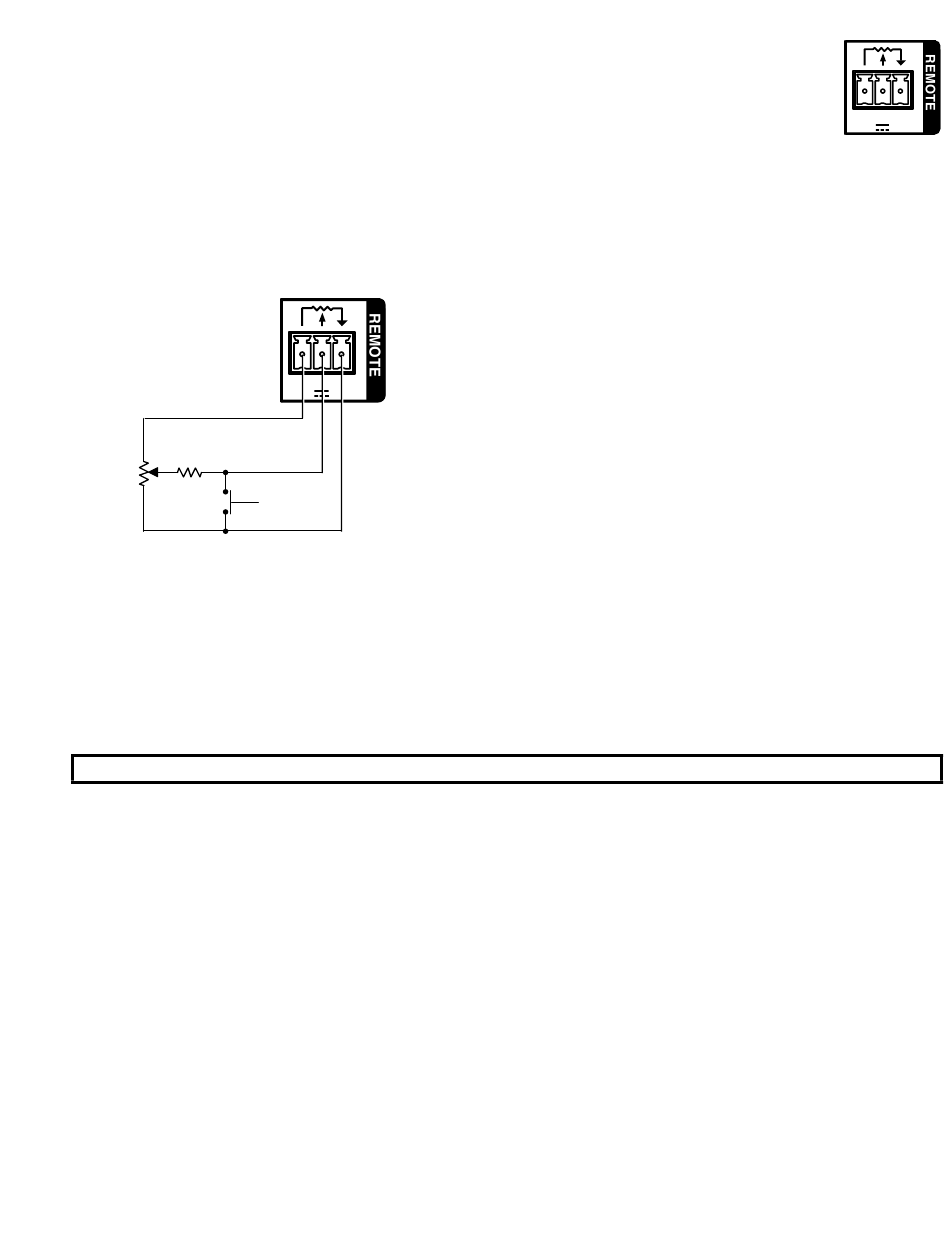

Figure 5 and the instructions below show the wiring for the VCM 100 MAAP. Wiring other remote control
connectors is similar.
10 V (Pin 1)
2k ohms
Volume Pot
10k ohms
Mute
Switch
Figure 5. Remote Control Wiring
• Pin 1 is for 10 VDC reference voltage output.
•
Pin 2 (C) has two functions:
Volume control: it can be used as a variable voltage input between 0 and 10 VDC, with 0 V giving full
attenuation and 10 V giving maximum volume.
Mute: it can be used for remote control muting. Sound is muted while this pin is shorted to ground.
•
Pin 3 is for the ground connection.
NOTE: All nominal levels are at ±10%.
Remote Control Options
V C G
10V 50mA
Vol/Mute
(Pin 2)
Ground (Pin 3)
on page 12 if using a
MPA 152 Plus • Panels and Cabling
V C G
10V 50mA
