4 Connections
After complete installation of control unit, sensors, relays and
installing of protection plate the power supply may be connected.

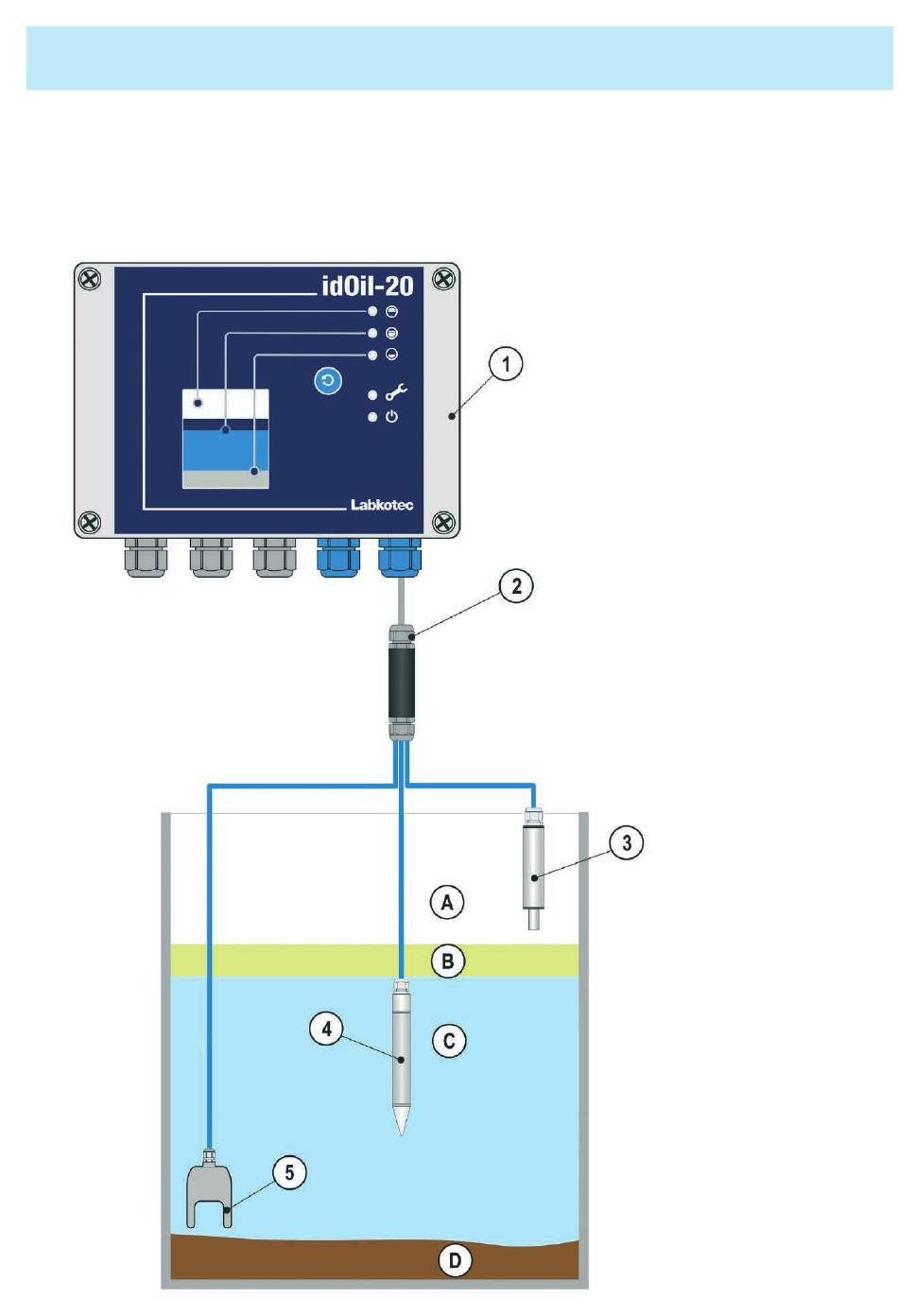

1 idOil-20 control unit
2 LCJ cable connector
3 idOil-LIQ high liquid level
sensor
4 idOil-OIL oil sensor
5 idOil-SLU sludge sensor
A Air
B Oil
C Water
D Sludge
