1 Installing the idOil-LIQ
high liquid level sensor
The sensor is normally in air, and it issues an alarm when the sensing
element is submerged in liquid. The sensor is installed at a suitable
height above the standard liquid level (L) so that the overflow alarm
is activated once the liquid level reaches the sensing element. Notice
manufacturer´s instructions for oil separators.

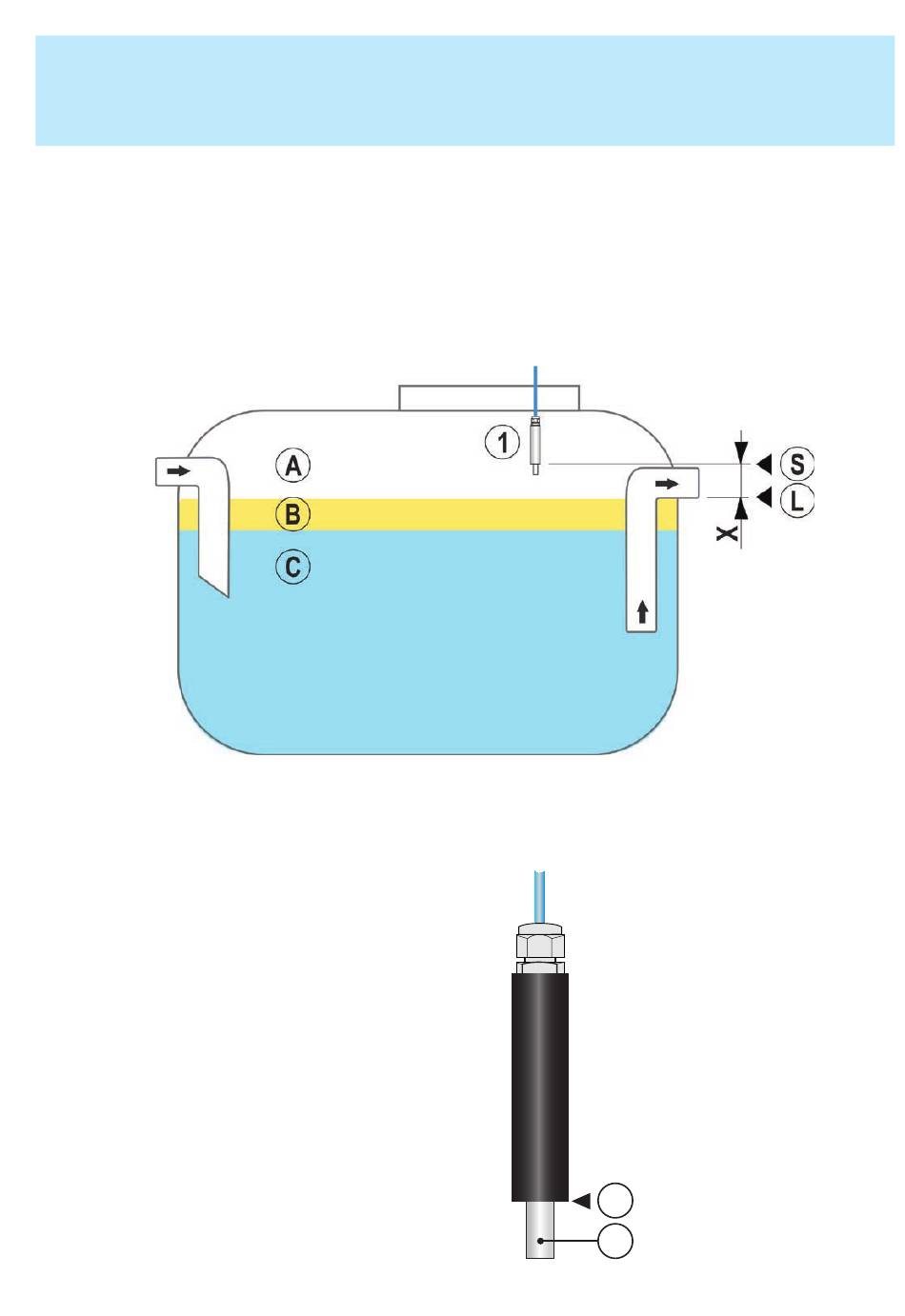

1 High level sensor idOiL-LIQ
A Air
B Oil
C Water
L Standard liquid level
S Sensor switching point
X Alarm level
(max surface level)
A Sensing element
S Alarm switching
point
S
A
