5 Commissioning
The front cover of the housing must be
removed. Make sure that the protection
cover (8) is properly attached.
Caution: High voltage!
Warning: Do not touch
live parts!

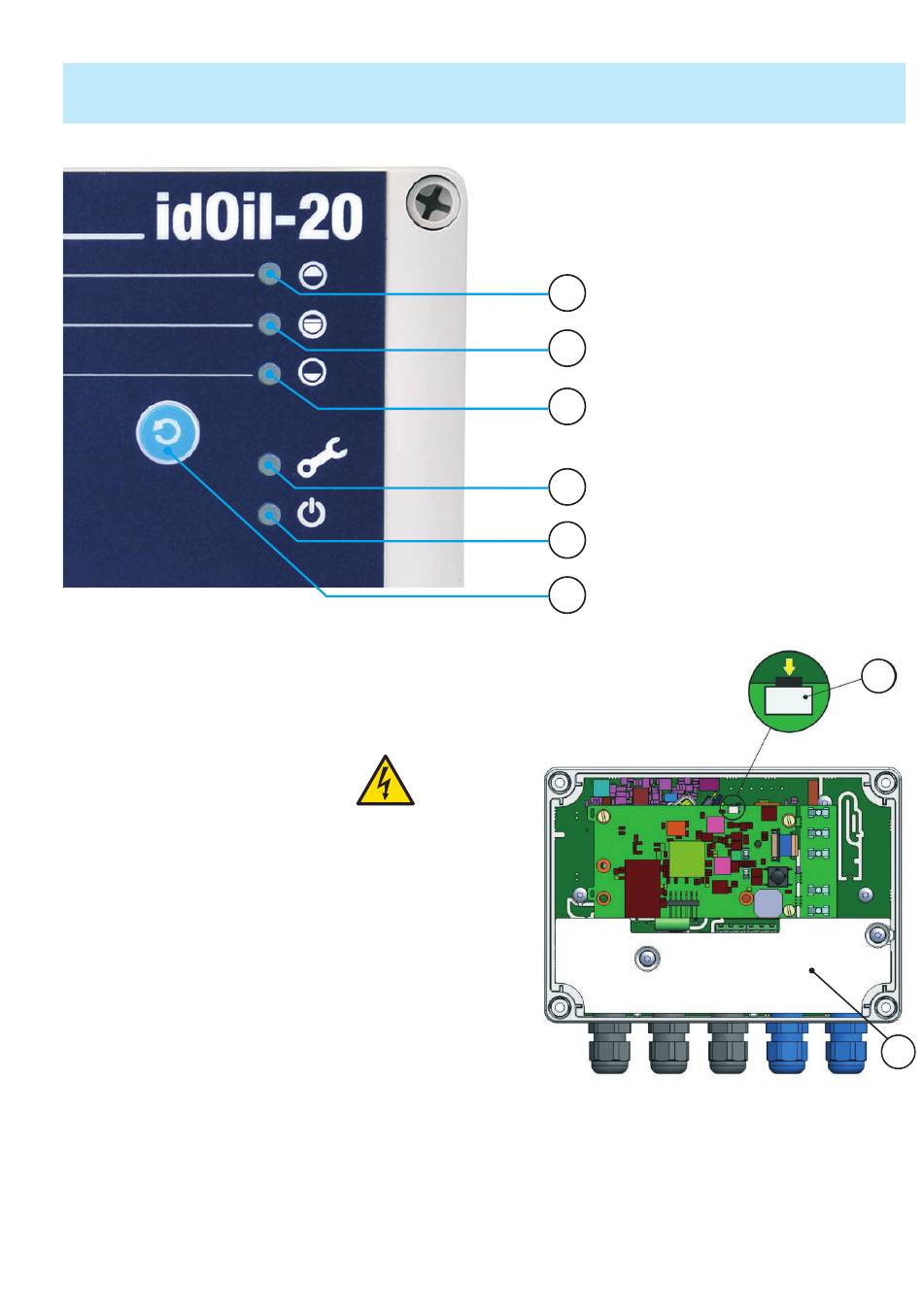

The „supply voltage on" LED and the
fault LED light up green. Push the but-
ton (7) on the top PCB briefly. The auto-
matic sensor detection starts and the
fault LED (4) flashes green. Attach the
front cover and lock it in place with the
four plastic screws. After all connected
sensors have been detected, the corresponding sensor LEDs (1), (2), (3)
and the fault LED light up green. In case of an alarm, the corresponding
sensor LED lights up red. In the event of a fault, the corresponding sen-
sor LED flashes red and the fault LED lights up red.
High level sensor alarm
1
indicator light
Oil sensor alarm
2
indicator light
Sludge sensor alarm
3
indicator light
Fault indicator light
4
Supply voltage
5
indicator light
6
Alarm reset and test button
7
8
