2 Installing the idOil-OIL
oil sensor
The sensor must be submerged at the desired installation depth when
the liquid is at the separator's standard liquid level (L). Notice manu-
facturer´s instructions for oil separators.

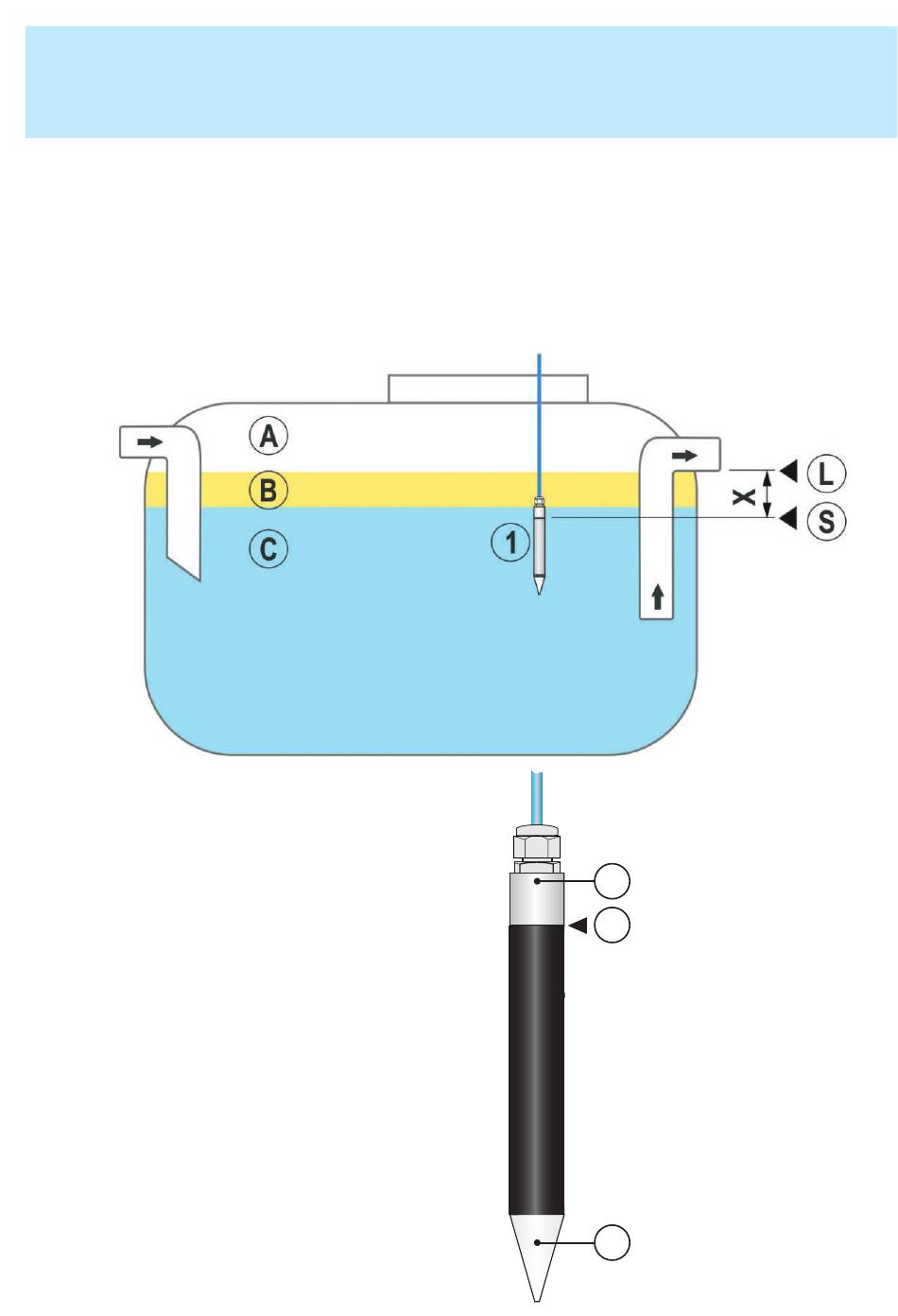

1 Oil sensor idOil-OIL
A Air
B Oil
C Water
L Standard liquid level
S Alarm switching point
X Alarm level (max oil level)
A
S
A Measuring electrode
B Reference electrode
S Alarm switching
point
B
