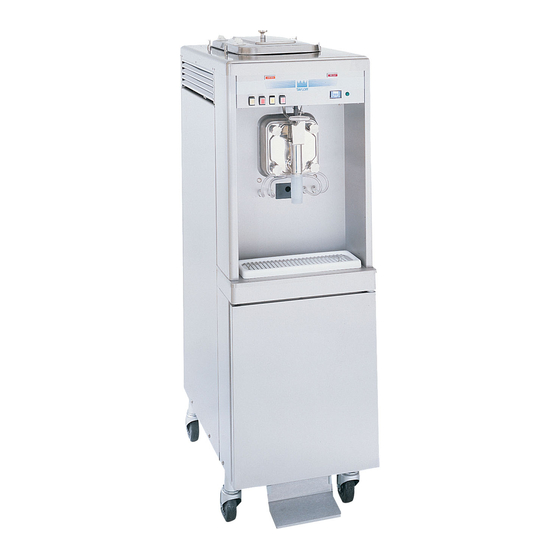

Taylor 62 Operator's Manual

Shake freezers
Hide thumbs Also See for 62:
Table of Contents

Advertisement

Quick Links

Original Operating Instructions
051059-M
Model 60/62
Shake Freezers
OPERATOR'S
MANUAL
4/00 (Original Publication)
Updated 9/26/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Taylor 62

Summary of Contents for Taylor 62

  • Page 1 OPERATOR'S MANUAL Model 60/62 Shake Freezers Original Operating Instructions 051059-M 4/00 (Original Publication) Updated 9/26/16...

  • Page 2: Models

    Phase Maximum Fuse Size: Minimum Wire Ampacity: E 2000 Taylor Company 051059−M Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be a violation of Copyright Law of the United States of America and other countries, could result in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal penalties.

  • Page 3: Table Of Contents

    ............Models 60 & 62...
  • Page 4 Note: Only instructions originating from the factory or its authorized translation representative(s) are considered to be the original set of instructions. E 2000 Taylor Company (Original Publication) (Updated September, 2016) 051059−M...

  • Page 5: To The Installer

    For Indoor Use Only: This unit is designed to operate service of Taylor equipment. indoors, under normal ambient temperatures of Only authorized Taylor service personnel 70_-75_F (21_-24_C). The freezer has successfully should perform installation and repairs on performed...

  • Page 6: Water Connections (Water Cooled Units Only)

    (5021 of IEC 60417-1) on both the removable cause permanent damage to the compressor. panel and the equipment’s frame. 110620 To the Installer Models 60 & 62...

  • Page 7: Beater Rotation

    If burns are severe, apply Beater Rotation ice packs and contact a physician immediately. Beater rotation must be clockwise as viewed Taylor reminds technicians to be cautious of looking into the freezing cylinder. government laws regarding refrigerant recovery, Note: The...

  • Page 8: To The Operator

    Your Taylor warranty is valid only if the parts are It should also be noted that Taylor does not warrant the authorized Taylor parts, purchased from the local refrigerant used in its equipment. For example, if the...

  • Page 9: Safety

    We, at Taylor Company, are concerned about the safety of the operator when he or she comes in contact with the freezer and its parts. Taylor has gone to extreme efforts to design and manufacture built−in DO NOT operate the freezer unless it is safety features to protect both you and the service properly grounded.
  • Page 10 78 dB(A) when measured at a distance of 1.0 meter from the surface of the machine and at a height surface. Failure to comply may result in personal injury or equipment damage. of 1.6 meters from the floor. 130507 Safety Models 60 & 62...

  • Page 11: Operator Parts Identification

    Caster- Swv 5/8 Stem 4” Wheel 018794 Panel- Rear w/Louvers 026980- SP Screw- 1/4- 20 x 3/8 Rhm- Stnls 011694 Caster- 4” Swv 5/8 Stem w/Brake 034081 Tank- SYR- 4 QT 045533 Panel - Side 067722 160926 Models 60 & 62 Operator Parts Identification...
  • Page 12 Stud−Nose Cone 5/16−18 x 011390 3/8−1 Pan−Drip 19−1/2 Long 035034 Skirt−Air Flow 049069 Shield−Splash 022765 Panel A.−Front X49996−1 Tray−Drip 16−7/8 L x 5−1/8 020157 Leg−4” SS w/O−ring 013458 Panel−Rear 039021 Leg−4” SS w/O−ring 013458 160926 Operator Parts Identification Models 60 & 62...
  • Page 13 TUBE−VINYL 3/16ID X 1/16 020940−6 ITEMS 14, 15, 16, & 21 USED ON MODEL 60 ONLY WALL (MODEL 60) *BULK PART NUMBER IS R30314 **NOT SHOWN FITTING−QD MALE INSERT 036296 (MODEL 60) 160926 Models 60 & 62 Operator Parts Identification...

  • Page 14: Syrup Tank

    018550 Insert 021081−1 Plug−Q.D. CO2 1/8 MP 021077 Decal−Set 4 Syrup Flavor 021523 021524 Decal−Syrup Tank Instruction 045533−1 Socket−Q.D. CO2 90 1/4 Barb *Not used on chocolate 021026 Socket−Q.D. Liq.− 90 1/4 Barb Operator Parts Identification Models 60 & 62...

  • Page 15: Important: To The Operator

    The center position is “OFF”. The left position is have symbols to indicate their functions. Your Taylor “WASH”, which activates the beater motor only. The equipment is designed with these International right position is “AUTO”.

  • Page 16: Reset Mechanism

    If the reset mechanism should trip again, contact your Foot Pedal (Model 60 Only) authorized Taylor Distributor to resolve the problem. The foot pedal is located on the lower front of the machine. To draw product from the Model 60, the foot pedal may be used.

  • Page 17: Operating Procedures

    Section 6 Operating Procedures The Models 60 and 62 have one, 7 quart (6.6 liter) groove until it snaps into place. DO NOT lubricate the freezing cylinder. These totally automatic freezers hex end of the drive shaft. Fill the inside portion of the offer four separate flavors.
  • Page 18 Figure 9 Figure 7 Make sure the beater assembly is in position over the drive shaft. Turn the beater slightly to be certain that the beater assembly is properly seated. 160926 Operating Procedures Models 60 & 62...
  • Page 19 Figure 13 Step 6 Place the large rubber gasket into the groove on the back side of the freezer door. DO NOT lubricate the gasket. Figure 11 Figure 14 150626 Models 60 & 62 Operating Procedures...
  • Page 20 Install the four handscrews onto the door and tighten them equally in a criss−cross pattern. Figure 18 Lubricate the spinner blade shaft, and insert the spinner blade from the bottom into the center of the draw valve. Figure 16 Figure 19 Operating Procedures Models 60 & 62...
  • Page 21 Install the torque arm. Position the torque arm by first slipping it up through the slot in the operating arm. Secondly, align the other end down in the hole in the torque rotor shaft which protrudes from the door. Figure 24 Models 60 & 62 Operating Procedures...

  • Page 22: Sanitizing

    PARTS, SANITIZE YOUR HANDS! Figure 28 Step 2 Lay the feed tube in the bottom of the mix hopper. Brush clean the mix inlet hole and the feed tube. Figure 26 Figure 29 080701 Operating Procedures Models 60 & 62...

  • Page 23: Priming

    During “AUTO” operation be sure the end of the feed tube with the hole in it is submerged in the mix. Figure 31 Step 6 Stand the feed tube in the corner of the mix hopper. Figure 33 150626 Models 60 & 62 Operating Procedures...
  • Page 24 This will start the freezing cycle. Lower the draw arm and re−engage the draw Place the mix hopper cover in position. valve. When the unit cycles off, the product is ready to serve. Figure 35 Figure 37 Operating Procedures Models 60 & 62...

  • Page 25: Syrup System

    Allow the air pressure to dissipate from the syrup tanks. Disconnect Note: Refer to page 26 for cleaning and sanitizing the the syrup lines. syrup tanks. Models 60 & 62 Operating Procedures...
  • Page 26 When pure syrup is flowing steadily from the spinner housing, press the far right button (“Van”) to stop the syrup flow. Figure 46 070131 Operating Procedures Models 60 & 62...

  • Page 27: Drawing Product

    A constant amount of flavor is blended into the Adjust the regulator to the new pressure setting and recheck the syrup calibration. Tighten the lock nut. product as it flows out of the freezer. Models 60 & 62 Operating Procedures...

  • Page 28: Closing Procedures

    Beater and spinner to start and the solenoid position. valve (if flavor is used) to open. Model 62: Drain all the product remaining in the A constant amount of flavor is blended into the freezing cylinder and mix hopper by raising the draw product as it flows out of the freezer.

  • Page 29: Cleaning

    If the drip pan is filled with an excessive amount of mix, sure the far right button (“Van”) on the selector switch it is an indication that the drive shaft seal should be assembly is pressed. replaced or that it was improperly lubricated. 080701 Models 60 & 62 Operating Procedures...

  • Page 30: Brush Cleaning

    With the black bristle brush, brush clean the rear shell sanitizing solution with warm water in the syrup tank. bearing at the back of the freezing cylinder. Brush clean the inside and outside of the tank. 080701 Operating Procedures Models 60 & 62...
  • Page 31 Place this tank in the syrup the tank filled with sanitizing solution. compartment. Step 3 Remove the syrup lines from the spinner housing. Wash and sanitize the spinner housing. Figure 52 Figure 54 Models 60 & 62 Operating Procedures...
  • Page 32 Attach the syrup lines to the spinner housing. Step 8 Disconnect the No. 1 air and syrup lines from the tank Step 13 now partially filled with sanitizer. Remove the freezer door and the draw valve. Operating Procedures Models 60 & 62...

  • Page 33: Important: Operator Checklist

    5. Using a screwdriver and cloth towel, keep the fresh mix in a ratio of 50/50 during the day’s female hex drive socket clean and free of operation. lubricant and mix deposits. 120109 Models 60 & 62 Important: Operator Checklist...

  • Page 34: Winter Storage

    Note: For machines equipped with an air filter, it will be necessary to vacuum clean the filters Your local Taylor Distributor can perform this service on a monthly schedule. for you. Wrap detachable parts of the freezer such as beater, j 9.

  • Page 35: Troubleshooting Guide

    Not enough syrup being d. Calibrate the syrup system. Syrup delivery blended with product. should be 1 oz. (29.6 ml.) in 6 seconds. e. Torque arm not installed. e. Install torque arm. 070131 Models 60 & 62 Troubleshooting Guide...
  • Page 36 Check water supply. on water cooled unit. c. Defective condenser fan. c. Call service to repair or − − − replace. d. No air space surrounding d. Maintain specified air clearance. machine. 070131 Troubleshooting Guide Models 60 & 62...
  • Page 37 Turn breaker on. − − − d. Water turned off (water d. Re−establish water − − − supply. cooled units). e. Power cord unplugged. e. Plug cord into wall − − − receptacle. 150626 Models 60 & 62 Troubleshooting Guide...
  • Page 38 Replace every 3 months. product from spinner valve. housing. b. Wrong o−rings on draw b. Check o−ring size. − − − valve. c. Inadequate lubrication of c. Follow lubrication procedures in “Assembly”. spinner shaft. Troubleshooting Guide Models 60 & 62...

  • Page 39: Parts Replacement Schedule

    Tune−Up Kits are available from your Taylor Distributor. Keep your freezer in top condition with the above replacement parts in a “Tune−Up Kit” for your model of freezer! Ask your Taylor Distributor about the Automatic 3−Month Tune−Up Kit Mailing Program.

  • Page 40: Section 10 Limited Warranty On Equipment

    Taylor, through an authorized Taylor distributor or service agency, will provide a new or re−manufactured part, at Taylor’s option, to replace the failed defective part at no charge for the part. Except as otherwise stated herein, these are T aylor’s exclusive obligations under this limited warranty for a Product failure.
  • Page 41 LEGAL REMEDIES The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.

  • Page 42: Limited Warranty On Parts

    Taylor, through an authorized Taylor distributor or service agency, will provide a new or re−manufactured Part, at Taylor’s option, to replace the failed defective Part at no charge for the Part. Except as otherwise stated herein, these are T aylor’s exclusive obligations under this limited warranty for a Part failure.
  • Page 43 Parts or the units in which they are installed repaired or altered in any way so as, in the judgment of Taylor, to adversely affect performance, or normal wear or deterioration.
  • Page 44 LEGAL REMEDIES The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.
