Summary of Contents for Squareled Splash 200W Fresnel IP65
- Page 2 SquareLED SPLASH 200W IP65 User Manual...
-
Page 3: Safety Instructions

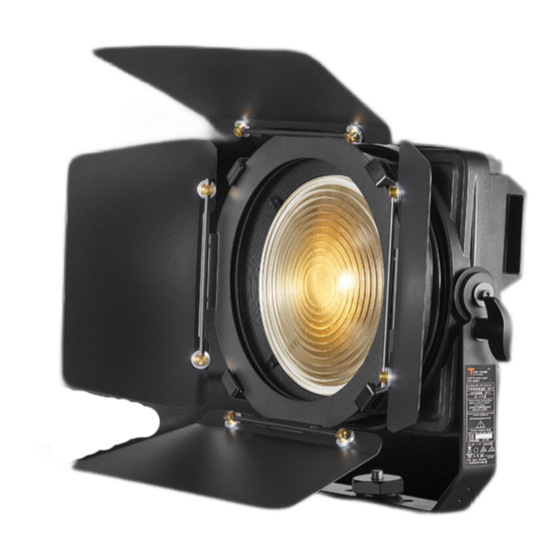

SAFETY INSTRUCTIONS CAUTION Be careful with your operations.With a dangerous voltage you can suffer a dangerous electric shock when touching wires! This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. - Page 4 Unpacking Thank you for choosing our SPLASH 200W Fresnel. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs.
-
Page 5: Features And Specifications
FEATURES & SPECIFICATIONS • 1*200W COB LED • 50,000 hours life span and low power consumption • Color Rendering Index (CRI): Ra≥90 • Housing made by die casting aluminum • Power Supply Brand: MEAN WELL • 5 and 4 Pins NEUTRIK XLR connectors IN •... -
Page 6: Dmx-512 Control Connections
DMX-512 CONTROL CONNECTIONS Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. -
Page 7: Menu Operations
1:Ground 2:Data(-) 3:Data(+) COMMON DMX+ DMX- DMX Input DMX Output DMX 512 OUT DMX 512 IN 3-Pin XLR Socket 3-Pin XLR Socket 3-PIN XRL 3-PIN XRL MENU OPERATIONS 5.1 Main menu everse Display Running Status Vice Menu Button 5.2 Operation Status Mode Display Description... - Page 8 5.3 Vice Menu DMX settings Menu Operation Option Description Press key of “OK” enter to DMX Start Address 1~512 edit mode, press “UP” and ”down” to edit the DMX address Press key of “OK” change DMX Profile Standard Channel Mode the DMX channel mode Basic Channel Mode Single Mode Choice...
-
Page 9: Dmx Channels
DMX CHANNELS 2 CH Mode Channel Function Value Description Dimmer 0-255 Dimmer 0-10 No function Delay time 11-255 Speed of strobe (255 is fastest) 1 CH Mode Channel Function Value Description Dimmer 0-255 Dimmer... -
Page 10: Installations
OPERATION INSTRUCTIONS ·The FRESNEL 200CW is an LED wash light for on-site decoration purpose. · Don't turn on the fixture if it's been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 11 Please ensure that the led profile spotlight is hung using the appropriate "C" clamp or half cheeseboro. A safety chain or cable should also be used as a secondary point of holding the fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable. There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded through and then hung from the secondary point.
- Page 12 Photographic Chart (example: 5600K CW) Ra≥90 Ra≥95...
-
Page 13: Cleaning And Maintenance
Cleaning and maintenance Now ignoring maintenance and cleaning is very good way of creating problems "down the road" and many companies and installations do just that. However the net result is, no matter what the fixture, premature failure! Changing the oil in a car, most people do on a regular basis. So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures to last. - Page 14 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
