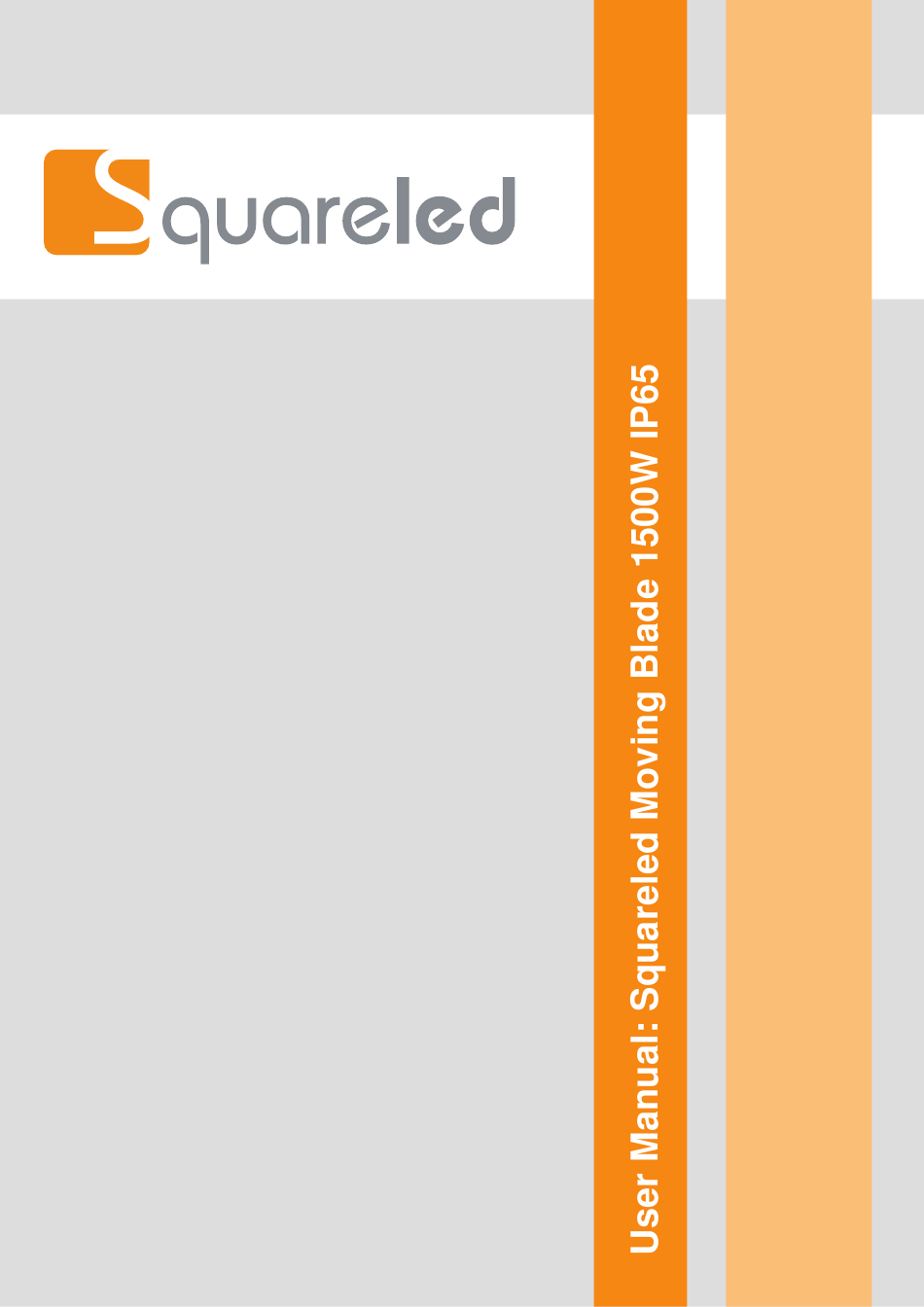

  • Page 2 SquareLED Moving Blade 1500W IP65 LED Strobe USER MANUAL...
  • Page 3 INTRODUCTION Thank you for having chosen our LED lighting Unpack the device, inside the box you should find: The fixture device One power cable One XLR connection cable This manual Please check carefully that there is no damage caused by transportation.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. This device falls under protection-class I.

  • Page 5: Dmx-512 Control Connection

    DMX-512 control connection The product has a DMX 512 input fitted with 3-pin XLR connectors. Screened cables in compliance with EIA RS-485 specifications and the following characteristics must be used for connections: - 2 conductors plus screen - 120Ohm impedance - low capacitance - max.

  • Page 6: Main Functions

    Channel 18 Ch Channel 30 Ch keep screen on Disable/enable keep DMX data Disable/ enable Fan speed Standard/ High/ Low Fast Dimmer Disable/ enable Head System Info Temperature Body LED load Default False/True LED All On auto 1 Auto Test auto 2 auto 3 0-255...
  • Page 7 the first number of the Address change to (channel 1 value)/10. For example, when set the value of channel 1 to 20,the first DMX address number will be 2(20/10=2), 3. Set the DMX value of channel 2 from 0-99,then you will see the second number of the Address change to (channel 2 value)/10.

  • Page 8: Dmx Functions And Values

    3. System info Temperature press ENTER button when show the Temperature menu, then it will show the temperature of the fixture 4. Color menu press ENTER button when show the Color menu, press Enter button to select the color mode, then adjust the color by pressing [UP] or [DOWN] button 5.
  • Page 9 All Red LED 000 - 255 0 - 100% All Green LED 000 - 255 0 - 100% All Blue LED 000 - 255 0 - 100% Duration RGB 000 - 255 0 - 100% Strobe RGB 000-010 0 - 100% 011-255 0 - 100% All White...
  • Page 10 Strobe W 000 - 010 No function 011 - 255 From slow to fast 000-035 No function 036-071 Effect 1 072-107 Effect 2 Macro 108-143 Effect 3 144 - 215 Effect 4 216 - 255 Effect 5 Flow Effect 0 - 50 No function 51 - 101 Effect 1...
  • Page 11 Strobe RGB 000-010 No function 011-255 From slow to fast All white led 000 - 255 0 - 100% Duration W 000 - 255 0 - 100% Strobe W 000 - 010 No function 011 - 255 From slow to fast 000-035 No function 036-071...
  • Page 12 Green Block3 000 - 255 0 - 100% Blue Block3 000 - 255 0 - 100% White Block3 000 - 255 0 - 100% 75-Channel Mode Function Values Description Coarse Tilt 000 - 255 0-180° Fine Tilt 000 - 255 0-2°...
  • Page 13 Tungsten effect Red Block1 000 - 255 0 - 100% Green Block1 000 - 255 0 - 100% Blue Block1 000 - 255 0 - 100% White Block1 000 - 255 0 - 100% Red Block2 000 - 255 0 - 100% Green Block2 000 - 255 0 - 100%...
  • Page 14 Red 7 000 - 255 0 - 100% Green 7 000 - 255 0 - 100% Blue 7 000 - 255 0 - 100% Red 8 000 - 255 0 - 100% Green 8 000 - 255 0 - 100% Blue 8 000 - 255 0 - 100%...
  • Page 15 60-Channel Mode Function Values Description Coarse Tilt 000 - 255 0-180° Fine Tilt 000 - 255 0-2° Master 000 - 255 0 - 100% Dimmer Master 000 - 255 0 - 100% Dimmer fine 000 - 255 0 - 100% Intensity Duration RGB 000 - 255...
  • Page 16 Blue 1 000 - 255 0 - 100% Red 2 000 - 255 0 - 100% Green 2 000 - 255 0 - 100% Blue 2 000 - 255 0 - 100% Red 3 000 - 255 0 - 100% Green 3 000 - 255 0 - 100%...
  • Page 17 Red 12 000 - 255 0 - 100% Green 12 000 - 255 0 - 100% Blue 12 000 - 255 0 - 100% White 1 000 - 255 0 - 100% White2 000 - 255 0 - 100% White3 000 - 255 0 - 100% White4...
  • Page 18 Fine Tilt 000 - 255 0-2° Red Block1 000 - 255 0 - 100% Green Block1 000 - 255 0 - 100% Blue Block1 000 - 255 0 - 100% White Block1 000 - 255 0 - 100% Red Block2 000 - 255 0 - 100% Green Block2...
  • Page 19 Green 5 000 - 255 0 - 100% Blue 5 000 - 255 0 - 100% Red 6 000 - 255 0 - 100% Green 6 000 - 255 0 - 100% Blue 6 000 - 255 0 - 100% Red 7 000 - 255 0 - 100%...
  • Page 20 White9 000 - 255 0 - 100% White10 000 - 255 0 - 100% White11 000 - 255 0 - 100% White12 000 - 255 0 - 100% 23-Channel Mode Function Values Description 000 - 255 Coarse Tilt 0-185° (MSB) 000 - 255 Fine Tilt (LSB) coarse tilt + 0-1.2°...
  • Page 21 85-88 white beam, right to left 89-92 white beam, right to left, random 93-96 white beam, left to right, bounce white beam, left to right, bounce, 97-100 random 101-104 white beam, right to left, bounce white beam, right to left, bounce, 105-108 random 109-112...
  • Page 22 232-235 quad flash, random 236-239 quad flash, b-c-b-c 240-243 quad flash, b-c-b-c, random 244-247 quad flash, c-b-c-b 248-251 quad flash, c-b-c-b, random 252-255 reserved Special / 0-49 No Function Control 50-54 FX/Pattern Color Priority On 55-59 FX/Pattern Color Priority Off 60-69 No Function 70-74...
  • Page 23 41-44 ramp down 45-48 ramp down, random 49-52 ramp up / down 53-56 ramp up / down, random 57-60 random white beam random single pixel of the white 61-64 beam 65-68 lightning 69-72 spikes (flash over low light) 73-76 reserved 77-179 double flash 180-191...
  • Page 24 0 - 100% Color Set 2, 0-255 Master Intensity 0 - 100% Color Set 2, Red 0-255 intensity 0 - 100% Color Set 2, 0-255 Green intensity 0 - 100% Color Set 2, 0-255 Blue intensity 18-Channel Mode Mode 1 Normal Funktion Coarse Tilt 0-255...
  • Page 25 Intensity 0-255 blackout to full White/Beam Shutter RGB 0-255 0,289-16,67Hz Duration RGB 0-255 7-650ms RGB FX Shutter 0-36 No Funktion 37-40 ramp up/ fade on,snap off) 41-44 ramp up, random 45-48 ramp down 49-52 ramp down, random 53-56 ramp up/down 57-60 ramp up/down, random 61-64...
  • Page 26 45-48 ramp down 49-52 ramp down random 53-56 ramp up down 57-60 ramp up down random 61-64 random white Beam 65-68 random single pixel of white beam 69-72 lightning 73-76 spikes /flash over low lights) 77-80 white beam left to right 81-84 white beam left to right random 85-88...

  • Page 27: Channel Mode

    beam 0nly reaction on Ch.12 30-Channel Mode Mode 1 Normal Funktion Coarse Tilt 0-255 Fine Tilt 0-255 Master Dimmer 0-255 blackout to full Coase Master Dimmer 0-255 Fine Control 0-49 No Funktion 50-69 Reserved 70-74 Normal Tilt 75-79 Inverse Tilt 80-84 Normal Pixel Orientation 85-89...
  • Page 28 37-40 ramp up/ fade on,snap off) 41-44 ramp up, random 45-48 ramp down 49-52 ramp down, random 53-56 ramp up/down 57-60 ramp up/down, random 61-64 random white Beam 65-68 random single pixel of the white beam 69-72 lightning 73-76 spikes /flash over low lights) 77-179 reserved 180-191...
  • Page 29 65-68 random single pixel of white beam 69-72 lightning 73-76 spikes /flash over low lights) 77-80 white beam left to right 81-84 white beam left to right random 85-88 white beam right to left 89-92 white beam right to left random 93-96 white beam left to right bounce 97-100...

  • Page 30: Cleaning And Maintenance

    White 5 0-255 Blackout to full White 6 0-255 Blackout to full White 7 0-255 Blackout to full White 8 0-255 Blackout to full White 9 0-255 Blackout to full White 10 0-255 Blackout to full White 11 0-255 Blackout to full White 12 0-255 Blackout to full...
  • Page 31 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
