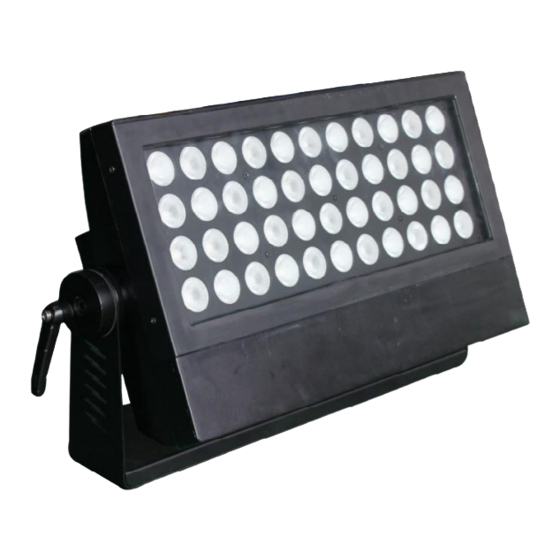

Summary of Contents for Squareled STORM 5

  • Page 2: Packing List

    Manual | Storm 5 1. Introduction Thank you for having chosen our LED lighting Unpack the device, inside the box you should find: The fixture device One power cable One XLR connection cable This manual Please check carefully that there is no damage caused by transportation. Should there be any problems, consult your dealer and don’t install this device.

  • Page 3: Dmx-512 Control Connection

    Manual | Storm 5 Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer. Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug.

  • Page 4: Display Menu

    Manual | Storm 5 Display Menu Main menu Sub-menu adress DMX Adress Setting config channel channel 1Ch channel 3Ch channel 4Ch channel 5Ch channel 10Ch channel 15Ch Dimmer Curve Mode L Mode Q Mode I Mode S Cipher Setup 0-999...

  • Page 5: Main Functions

    Manual | Storm 5 4. Main functions Address: Current DMX address A. Setting DMX address by button » Press ENTER button when show the address menu, then adjust the DMX address by pressing [UP] or [DOWN] button » Press [ENTER] to confirm or pressing [ESC] to return to main menu.

  • Page 6: System Info

    Manual | Storm 5 » Show Temperature: Press ENTER button when show the Temp Uint CS menu, select the way of showing the fixture’s temperature in °C or °F by pressing [UP] or [DOWN] button » DMX status: Press ENTER button when show the DMX Status menu, then select clear value or hold value by pressing [UP]...
  • Page 7 Manual | Storm 5 5. DMX functions and values DMX Channel (1CH) Channel DMX Value Control Function 0–255 Static color DMX Channel (3CH) Channel DMX Value Control Function 0–255 R 0–100% 0–255 G 0–100% 0–255 B 0–100% DMX Channel (4CH)
  • Page 8 Manual | Storm 5 DMX Channel (10CH) Channel DMX Value Control Function 0–255 Master dimmer 0–255 Master dimmer fine 0–255 Red dimmer 0–255 Red dimmer fine 0–255 Green dimmer 0–255 Green dimmer fine 0–255 Blue dimmer 0–255 Blue dimmer fine 0–255...
  • Page 9 Manual | Storm 5 13CH 0-255 dimmer speed 14CH dimmer curve 0-63 L curve 64-127 S curve 128-191 I curve 192-255 Q curve DMX Channel (15CH) Channel DMX Value Control Function 0–255 Master dimmer 0–255 Master dimmer fine 0–255 Red dimmer 0–255...

  • Page 10: Cleaning And Maintenance

    Manual | Storm 5 15CH dimmer curve 0-63 L curve 64-127 S curve 128-191 I curve 192-255 Q curve 6. Cleaning and maintenance We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents! Disconnect from mains before starting maintenance operation.
