Page 2: User Manual

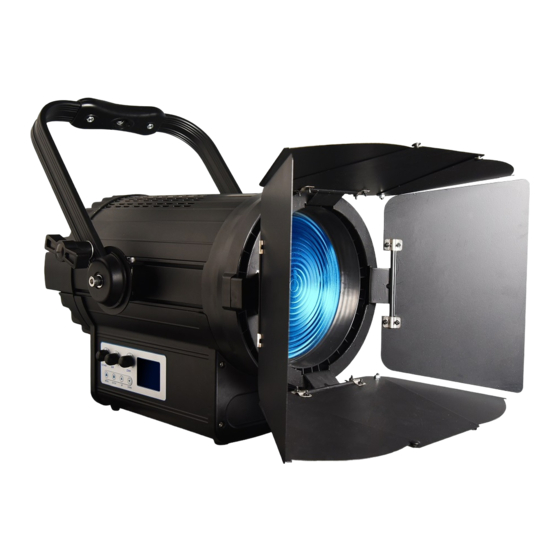

User Manual SquareLED Hi-Precision 500 W RGBAL Fresnel... -
Page 3: Table Of Contents
1. TECHNICAL PARAMETERS ................ 3 ................3 ELECTRICAL PARAMETERS 1.2 O ................. 3 PTICAL ARAMETERS 1.3 M ............3 ECHANICAL AND PHYSICAL PARAMETERS 2. ILLUMINATION CHART ....FEHLER! TEXTMARKE NICHT DEFINIERT. 3. SAFETY WARNING ................... 4 4. INSTALLATION ..................4 4.1 I ................. -
Page 4: Technical Parameters
1 Technical Parameters 1.1 Electrical Parameters Input Voltage：100-240AC 50/60HZ Power Consumption：≤350W Control Signal：DMX512/master/slave mode Control Channel：3/5 channels DMX input/output interface: XLR 3PIN (In & Out) Power Interface：Aviation head 1.2 Optical Parameters Light Source：500W integrated cob source Color（Light Source） ：RGBAL Beam Angle：20°- 35° Dimmer：0-100% Strobe：0-20Hz 1.3 Mechanical and physical parameters... -
Page 5: Illumination Chart
Working Temperature：-20~40°C Noise：36db Net Weight：11KG Dimension：507*380*440mm 2 Illumination Chart 3 Safety Warning Notice： ● Professional technical people required to install and maintain this equipment. ● This equipment has passed strict inspection before delivery. ● Users have to obey the safety and notice guide. ●... -
Page 6: Installation
Important Notice: ● Make sure the power supply within the standard data range. ● The fixture’s power connection line can’t connect to any other fixtures. ● The fixture’s DMX512 connection line can’t connect to any other fixtures. That is each output of former fixture connects to the input of its follower, and each output DMX line cannot be divided into more than one outputs. - Page 7 ▲ Hanging angle adjustable to install on the suitable truss, show below: Hanging angle Suspending installation: Notice：Make sure the install location is safety and adapt to this fixture. ▲ When install or use this fixture, make sure to keep a distance at least 0.3m with inflammable and explosive materials;...
-
Page 8: Power Connection
Hanging on truss 4.2 Power Connection □ Power cable use 2.5mm2 copper core. When power serial connect, AC220V connect 15 pcs fixtures Max; AC110V connect 8 pcs fixtures Max. □ DMX512 signal cable connect 20pcs fixtures Max; When the distance between console and fixture, or distance between two fixtures, longer than 50M then add a signal amplifier is very necessary. -
Page 9: Dmx512 Console Connect
4.3 DMX512 Console Connect ◇ Serial connect the DMX512 console and signal cable. ◇ DMX512 address code is reusable. ◇ DMX512 address code can be any number between 001 to 512. DMX Addr8 DMX Addr1 … … … … Series connection the console with lighting DMX512 console , lighting with lighting... -
Page 10: Operation
5 Operation 5.1 Key Operation ■ ENTER ：Enter to next submenu, save and confirm the function data value as we set. ■ UP ：Select the function submenu, upper circular adjust the data value. ■ DOWN ：Select the function submenu; down circular adjust the data value. ■... -
Page 11: Manual Set : Ctrl
5.2 Manual SET… CTRL 000-255 CTRL 000-255 FOCUS 000-255 STROBE 000-255 000-255 DIM_Speed DIM_CRUVE 000-255 RESERVED ◇Press［ENTER］in Menu［CTRL］enter into manual setting ◇Press [ENTER] to cycle through the brightness [DIM], color temperature [CCT], focus [ZOOM], press [UP]/[DOWM] to adjust and set the relevant data. ◇Press [MENU] to back to main menu and save automatically. -
Page 12: System Info -Info
5.3 System INFO -INFO INFO Run time Temperature ◇ Press{ENTER］in menu{INFO} to enter into system information; ◇ Press [MENU] to back to main menu and save automatically; ◇ Can view system version number{VER}，system running time{RUN TIME},lamp source temperature{Temperature} ◇ {PR], [IR] are DMX512 receiving information status information . 5.4 LIGHT SET…SET DMX/MS MODE... -
Page 13: Addr
◇ Press [ENTER] in the [SET] menu to enter the fixture setting operation. ◇ Press [UP]/[DOWN] to select the directory for this setting; ◇ The [MODE] menu sets the lamp operation mode, [DMX] is the DMX input status, and the [CTRL] menu cannot be changed when the DMX512 signal is input. - Page 14 ◇Press the [MENU] button to return to the main menu ◇Select the standard DMX512 signal cable to connect the lamps in series; ◇Use the operation menu ADDR to set the DMX512 address code of the fixture; ◇Set the same or different DMX512 addresses for different lamps according to the actual situation on site.
- Page 15 Saturation: Zoom in from big to 0-255 Zoom adjustment small Dimmer intensity : DIM from slow to 0-255 0-255 fast CCT: CCT from slow to 0-255 0-255 fast ZOOM： 0-255 20-35° Zoom 20-35° Ctrl_onff： HSIC MODE HSIC control mode Single color control 1-255 Monochromatic MODE mode Red Color:...
- Page 16 0-255 Lime 0 to 100% Strobe: Strobe from slow to 5-255 1-20Hz fast Dimmer mode: DIM from slow to 0-255 fast Dimmer Curve: 000-005 None Function 006-064 Linear Dimmer Curve 065-128 Square Dimmer Curve 129-192 I-Square Dimmer Curve 193-255 S-Shape Dimmer Curve 0-255 255 continued over 3s System reset Fan Control:...
-
Page 17: Standard Accessories
7 Standard Accessories Power Supply Cable x 1pc Signal Cable x 1pc Safety Rope x 1pc User Manual x 1pc Warranty x 1pc Barn Door x 1set European Standard Power Cable (optional) American Standard Power Cable (optional) - Page 19 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
