Summary of Contents for Squareled Blade 7

  • Page 2: User Manual

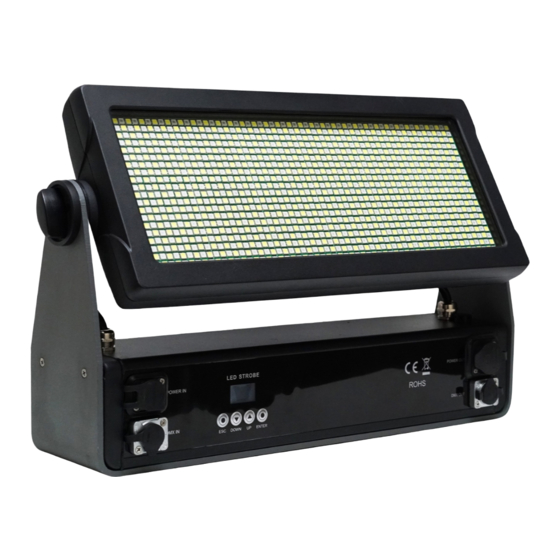

    Blade 7 1500W RGBW USER MANUAL...

  • Page 3: Safety Instructions

    INTRODUCTION Thank you for having chosen our LED lighting Unpack the device, inside the box you should find: The fixture device One power cable One XLR connection cable This manual Please check carefully that there is no damage caused by transportation.

  • Page 4: Dmx-512 Control Connection

    The electric connection must carry out by qualified person. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard. Make sure that the available voltage is not higher than stated at the end of this manual.

  • Page 5: Display Menu

    corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 OHM resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the last fixture in the chain. Display Menu Main menu Sub-menu...

  • Page 6: Main Functions

    white 0-255 Fan Test Fan1 On/ Off Main functions 1. Address: Current DMX address A. Setting DMX address by button press ENTER button when show the address menu, then adjust the DMX address by pressing [UP] or [DOWN] button Press [ENTER] to confirm or press [ESC] to return to main menu. B.

  • Page 7: Dmx Functions And Values

    2. Config. Setting DMX mode press ENTER button when show the channel menu, then select the DMX mode by pressing [UP] or [DOWN] button Key mode press ENTER button when show the key mode menu, then select lock or unlock by pressing [UP] or [DOWN] button Show Temperature press ENTER button when show the Temp Unit CS menu, select the way of showing the fixture’s temperature in ℃...
  • Page 8 All Red LED 000 - 255 0 - 100% All Green LED 000 - 255 0 - 100% All Blue LED 000 - 255 0 - 100% All White LED 000 - 255 0 - 100% DMX Values In-Depth (7-Channel Mode) Function Values Description...
  • Page 9 108 - 143 Effect 3 144 - 215 Effect 4 216 - 255 Effect 5 Flow Effect 0 - 50 No function 51 - 101 Effect 1 102 - 152 Effect 2 153 - 203 Effect 3 204 - 254 Effect 4 Effect 5 speed...
  • Page 10 All Red LED 000 - 255 0 - 100% All Green LED 000 - 255 0 - 100% All Blue LED 000 - 255 0 - 100% All White LED 000 - 255 0 - 100% Duration 000 - 255 0 - 100% Strobe 000 - 010...
  • Page 11 White Block3 000 - 255 0 - 100% DMX Values In-Depth (48-Channel Mode) Function Values Description Red 1 000 - 255 0 - 100% Green 1 000 - 255 0 - 100% Blue 1 000 - 255 0 - 100% White 1 000 - 255 0 - 100%...
  • Page 12 Blue 7 000 - 255 0 - 100% White 7 000 - 255 0 - 100% Red 8 000 - 255 0 - 100% Green 8 000 - 255 0 - 100% Blue 8 000 - 255 0 - 100% White 8 000 - 255 0 - 100%...
  • Page 13 Macro 000 - 035 No function 036 - 071 Effect 1 072 - 107 Effect 2 108 - 143 Effect 3 144 - 215 Effect 4 216 - 255 Effect 5 Flow Effect 0 - 50 No function 51 - 101 Effect 1 102 - 152 Effect 2...
  • Page 14 Blue 5 000 - 255 0 - 100% White 5 000 - 255 0 - 100% Red 6 000 - 255 0 - 100% Green 6 000 - 255 0 - 100% Blue 6 000 - 255 0 - 100% White 6 000 - 255 0 - 100%...
  • Page 15 DMX Values In-Depth (70-Channel Mode) Function Values Description Master Dimmer 000 - 255 0 - 100% Master Dimmer 000 - 255 0 - 100% fine All Red LED 000 - 255 0 - 100% All Green LED 000 - 255 0 - 100% All Blue LED 000 - 255...
  • Page 16 Red 1 000 - 255 0 - 100% Green 1 000 - 255 0 - 100% Blue 1 000 - 255 0 - 100% White 1 000 - 255 0 - 100% Red 2 000 - 255 0 - 100% Green 2 000 - 255 0 - 100%...

  • Page 17: Cleaning And Maintenance

    White 8 000 - 255 0 - 100% Red 9 000 - 255 0 - 100% Green 9 000 - 255 0 - 100% Blue 9 000 - 255 0 - 100% White 9 000 - 255 0 - 100% Red 10 000 - 255 0 - 100%...
  • Page 18 The device must only be installed at a vibration-free, oscillation-free and fire-resistant location.
  • Page 19 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
