Summary of Contents for Squareled LUMINO 200W-RGBW

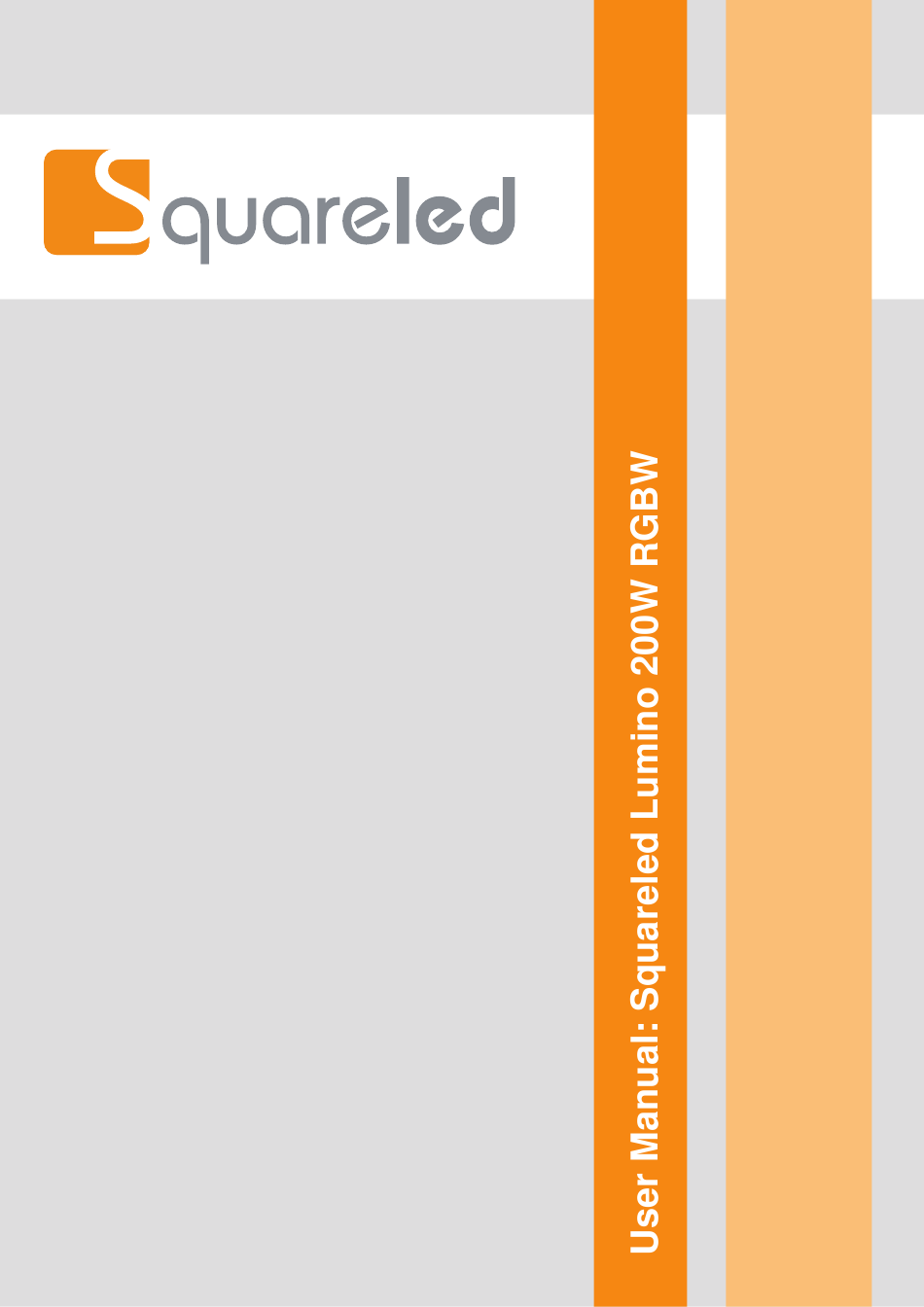

- Page 2 SquareLED LUMINO 200W-RGBW User Manual ①...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS CAUTION Becareful with your operations.With a dangerous voltage you cansuffer a dangerous electric shock when touching wires! This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. - Page 4 Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. The SquareLED Lumino 200W Fresnel RGBW is made of a high strength of aluminum alloy casing with nice outlook. The fixture is designed and manufactured strictly following CE&RoHS standards, complying with international standard DMX512 protocol.
-
Page 5: Features And Specifications
FEATURES & SPECIFICATIONS Feature： *1*200W COB LED (RGBW 4IN1) *50,000 hours life time and low power consumption *High efficiency fresnel lens *Soft and even field of light *Auto zoom system(Motorized zoom) from 15°-50° *Aluminum alloy housing *Thermally insulated rear handle *High-strength single handle design *Barn door included *Ultra smooth 16-bit dimming... -
Page 6: Dmx-512 Control Connections
DMX-512 CONTROL CONNECTIONS Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. - Page 7 3-Pin DMX IN POWER IN 5-Pin DMX IN COMMON 1:Ground DMX+ 2:Data(-) 3:Data(+) DMX- DMX Output DMX Input 3-Pin XLR 3-Pin XLR DMX512 Out DMX512 In 3-Pin XLR 3-Pin XLR 120Ω Pin3 Pin2 For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator.
-
Page 8: Product Feature
Product Feature 2 kinds of running model External control mode (Slave model) DMX 512 controller control(2 kinds channel modes) Master/salve model control (auto match the signal from controller and the Master light, no need to set by menu) ... -
Page 9: Menu Operations
MENU OPERATIONS 6.1 Menu Data Menu State Operative Mode DMX address DMX channel Mode Speed of Dimmer Main Menu Vice Menu No DMX signal Screen Savers Screen Rotation Language switching Speed of Dimmer Manual mode System information Reset Restore the default settings ⑧... - Page 10 6.2 Key Operation Menu Vice Menu Display Keys Operation Standard UP/DOWN: Change the ID address Channel (10 CH) Addr:001 Model（10 CH） Basic channel UP/DOWN: Change the ID address （5 (5 CH) Model Addr:001 CH） Static Model Dimmer Static > UP/DOWN: Dimmer Color 1 (Red) R:000...
-
Page 11: Dmx Channels
DMX CHANNELS 10 CH Mode (Standard channel model) Channel Data Function Notes 0~255 Dimmer 0~255 Color 1 (red) 0~255 Color 2 (green) 0~255 Color 3 (blue) 0~255 Color 4 (white) 0~30 No effect 31~200 Multi-color change 201~20 Color temperature 1 (default 3200K) ……... - Page 12 5 CH Mode (Basic channel model) Channel Data Function 0~255 Color 1（red） 0~255 Color 2（green） 0~255 Color 3（blue） 0~255 Color 4（white） 0~255 Zoom(focus)
-
Page 13: Operation & Specifications
OPERATION & SPECIFICATIONS ·The SquareLED Lumino 200W Fresnel RGBW is an LED fresnel light for on-site decoration purpose. ·Don't turn on the fixture if it's been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 14 Please ensure that the led fresnel spotlight is hung using the appropriate "C" clamp or half cheeseboro. A safety chain or cable should also be used as a secondary point of holding the fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable. There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded through and then hung from the secondary point.
-
Page 15: Cleaning And Maintenance
Cleaning and maintenance Now ignoring maintenance and cleaning is very good way of creating problems "down the road" and many companies and installations do just that. However the net result is, no matter what the fixture, premature failure! Changing the oil in a car, most people do on a regular basis. So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures to last. - Page 16 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
