Operational Instruction of the SquareLED

Bajazzo CMY Color Changer

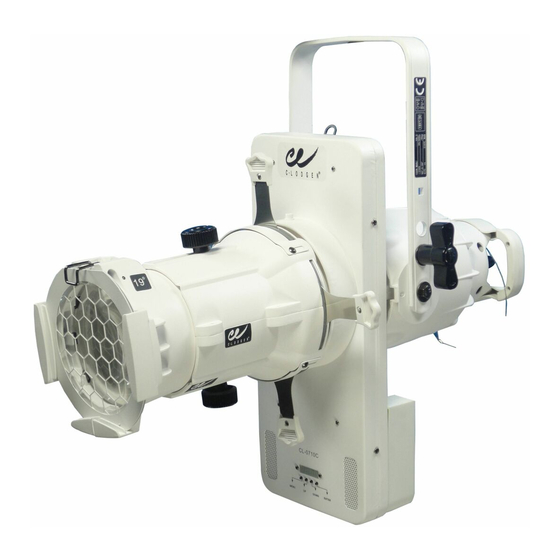

The SquareLED Bajazzo Color Changer is an auxiliary

apparatus based on the SquareLED High Precision Profile-

Spot for color-blending effects. It can also be used for

Source Four Products.

1. Characteristics

（1） Easy-to-mount. The Bajazzo is fixed between the bulb holder and

front lens assembly, not interfering with intrinsic functions such as

grating, aperture, pattern disc; no tool and no renovation of the

lamp are needed during mounting.

（2） Different from the traditional color-paper-chip color converter, the

Bajazzo can make any color-blending effect, and can transit

between colors smoothly. It uses color glass chips as the color

media, making color more vivid and bright; these color glass chips

will not burn or fall off if properly used.

（3） The control signal is as per DMX512 standard. Each apparatus

occupies 8 DMX channels, one channel of light output whereby the

light can be tuned, relieving the trouble of connecting to the light-

Table of Contents

Do you have a question about the Bajazzo and is the answer not in the manual?

Page 1 Spot for color-blending effects. It can also be used for Source Four Products. 1. Characteristics （1） Easy-to-mount. The Bajazzo is fixed between the bulb holder and front lens assembly, not interfering with intrinsic functions such as grating, aperture, pattern disc; no tool and no renovation of the lamp are needed during mounting.
Page 2 （2） Mount the Bajazzo in replacement of the front lens assembly. Turn it until tightly fitted with the light fixture, tighten the screws and...
Page 3 （3） Adjust the apparatus to an optimum orientation; turn the Bajazzo so as to avoid interaction with other effect-enhancing features. Take care not to fix the electronic part upwards. （4） Mount the removed front lens assembly in front of the color changer, adjust its orientation and tighten the screws.
Page 4 DMX512 signal is not received, when the red LED shall keep light. If DMX512 signal is correctly received then the address code display shall keep light and the red LED flashes. （3） After setup of address code, one can operate the Bajazzo by DMX control panel. channel...
