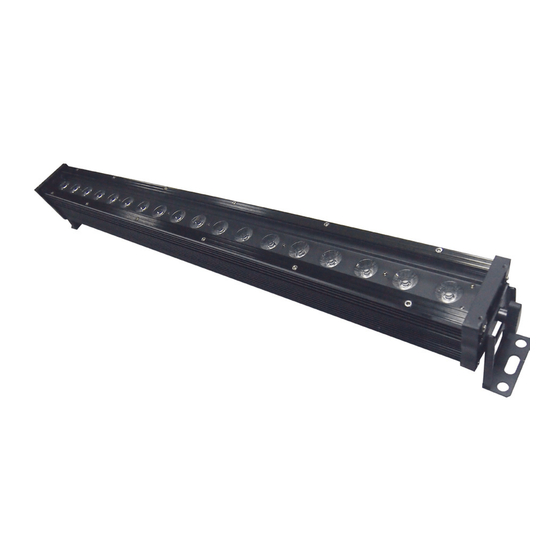

Summary of Contents for Squareled Color Designer 18x12W RGBAW+UV
- Page 2 Introduction Thank you for having chosen „Color Designer 18x12W RGBAW+UV“. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.
- Page 3 Manual | Color Designer 18x12W RGBAW+UV Control menu map...
- Page 4 Manual | Color Designer 18x12W RGBAW+UV Operation Projector DMX starting address selection The LED DISPLAY on the rear side of the base allows you to assign the DMX fixture address, which is defined as the first channel from which the item will respond to the controller. If you set, for example, the address to channel 7, the item will use the channel 7 to 15 for control.
- Page 5 Manual | Color Designer 18x12W RGBAW+UV DMX Controlling: After having addressed all items, you may now start operating these via your lighting controller. After switching on, the item will automatically detect whether DMX 512 data is received or not. Channel modes:...
- Page 6 Manual | Color Designer 18x12W RGBAW+UV 7 Channel mode Function Function control 0: shut Dimmer 1-255:dimming 0: shut 1-255:dimming 0: shut Green 1-255:dimming 0: shut Blue 1-255:dimming 0: shut White 1-255:dimming 0: shut Amber 1-255:dimming 0: shut 1-255:dimming 6 channel mode , the dimmer default number is 255, no strobe , no macro-function Set DMX address Display the DMX 512 value of each channel.With this function you can display the DMX...
- Page 7 Manual | Color Designer 18x12W RGBAW+UV Specifications Physical Length: 1100 mm Width: 140 mm Height: 100 mm Weight: 4.5kg Dynamic effects Color mixing RGBWAUV Electronic dimming: 0-100% linear dimming Strobe and pulse effects 0-25 times/second ,flicker free Electronic „shutter“ effect: instant open and blackout...
- Page 8 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
