Hybrid Ultrasonic

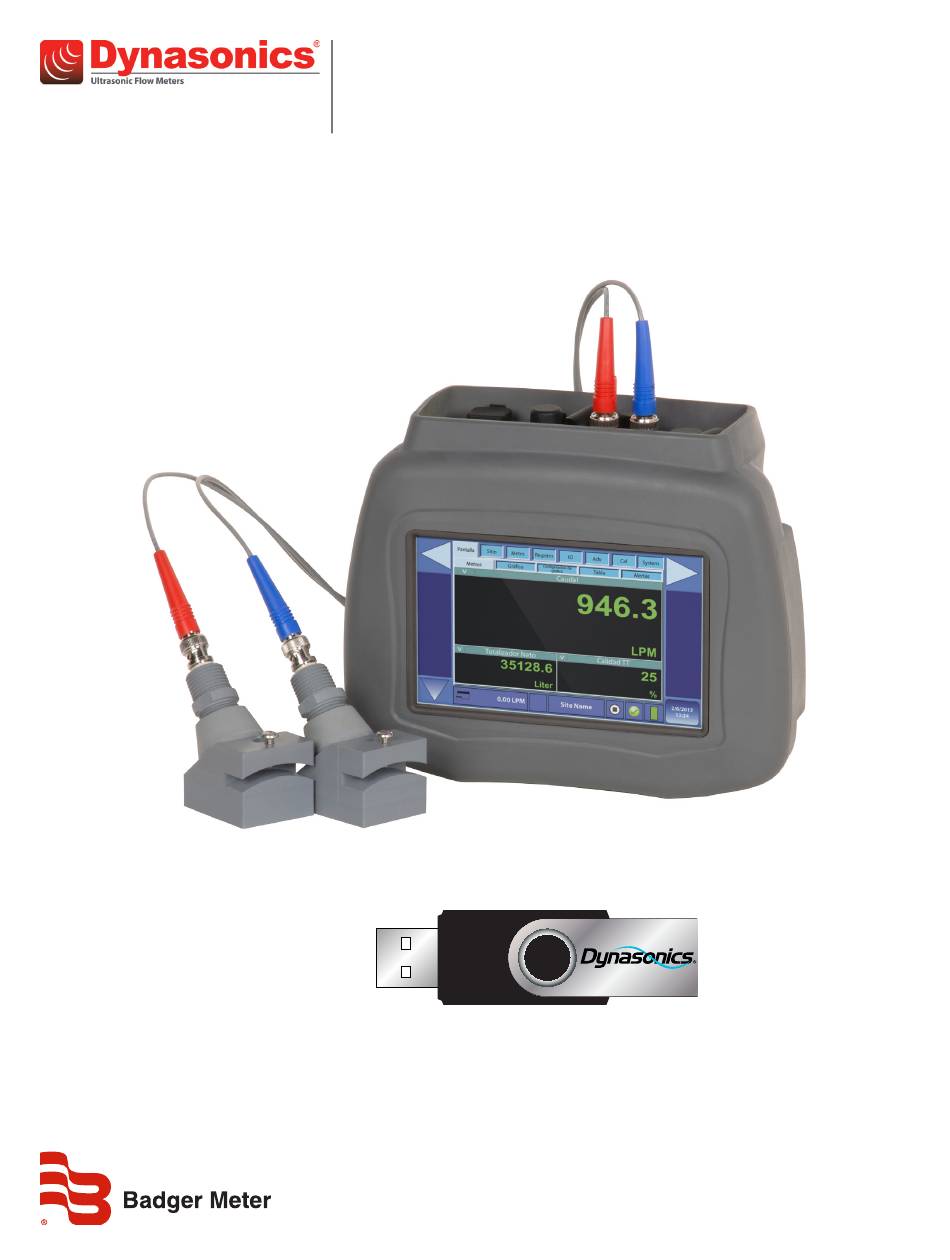

DXN Portable Ultrasonic Measurement System
Firmware Update Manual
HYB-PM-00095-EN-03 (December 2017)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dynasonics DXN Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Badger Meter Dynasonics DXN Series

  • Page 1 Hybrid Ultrasonic DXN Portable Ultrasonic Measurement System Firmware Update Manual HYB-PM-00095-EN-03 (December 2017)
  • Page 2 Hybrid Ultrasonic, DXN Portable Ultrasonic Measurement System Page ii HYB-PM-00095-EN-03 December 2017...
  • Page 3 Firmware Update Manual CONTENTS Upgrading Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Quick Boot .
  • Page 4 Hybrid Ultrasonic, DXN Portable Ultrasonic Measurement System Page iv HYB-PM-00095-EN-03 December 2017...
  • Page 5: Upgrading Software

    Upgrading Software UPGRADING SOFTWARE MPORTANT The Dynasonics USB Update Drive is formatted in FAT/FAT32. NTFS (New Technology File System) formats do not work. The upgrade is supplied as a self extracting zip file that you must extract on a PC before it can be loaded into the . 1 .
  • Page 6 Upgrading Software 6 . From the Display ► Meters screen, press the System tab on the far right of the display . 7 . From the System screen, select Update (System ► Update) . Display Site Meter System Misc Power Disk Storage ENet...
  • Page 7 Upgrading Software Series DXN Launch Updater Rev G Start Flowmeter Start Updater Flowmeter Administration Tools dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved 10 . Press the Unlock button (Step 1: Unlock System (Reboot) . Check Update Status Restart System Quit Update Utility UD: XKey1 exists UD: SR value is 0...
  • Page 8 Upgrading Software Check Update Status Restart System Quit Update Utility UD: XKey1 exists UD: SR value is 0 Step 1: Unlock System (Reboot) Unlock UD: Eth Services IP=192.168.0.100 Subnet = 255.255.255.0 UD: Folders UD: Registry C:\Documents and Settings\FlowMeterUser> ewfm Update Protected Volume Con guration ×...
  • Page 9 Upgrading Software Series DXN Launch Updater Rev G Start Flowmeter Start Updater Flowmeter Administration Tools dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved 13 . Press the Start Updater button . 14 . The meter should now be back on the Update screen . Press Update System button Step 2: Update System (Reboot) . OTEE: If this step was completed in a previous system update the update utility may skip this step and go directly to step 3 .
  • Page 10 Upgrading Software Check Update Status Restart System Quit Update Utility SET: D:\WindowsD\WMILogs SET: D:\WindowsD\MSMQLogs Step 1: Unlock System (Reboot) Unlock SET: HKEY_CURRENT_USER\Software\Microsoft SET: HKEY_CURRENT_USER\Software\Microsoft SET: HKEY_CURRENT_USER\Envrioment fro SET: HKEY_CURRENT_USER\Envrioment fro SET: HKEY_LOCAL_MACHINE\SYSTEM\Current Update SET: HKEY_LOCAL_MACHINE\SYSTEM\Current × Step 2: Update System (Reboot) System SET: HKEY_LOCAL_MACHINE\SYSTEM\Current OK: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft...
  • Page 11 Upgrading Software Check Update Status Restart System Quit Update Utility Copy Files Complete 98 Files Step 1: Unlock System (Reboot) Unlock Update Step 2: Update System (Reboot) System Step 3: Copy Updated Files Copy Update Step 4: Update Flowmeter Flowmeter Lock Step 5: Lock System (Reboot) dynasonics.com...
  • Page 12 Upgrading Software Check Update Status Restart System Quit Update Utility 15:19:23 Begin Embedded Update 15:19:23 Boot...AAAtrtrtrtr TrRBB Ready Step 1: Unlock System (Reboot) Unlock 15:19:28 Embedded File: CRC32B: 18C97728 MD5: 867B861C Update 7038 D7D4 A2C5 Step 2: Update System (Reboot) System F74EE8D207CE 15:19:30 Erase ....
  • Page 13 Upgrading Software Series DXN Normal Start APP Start Flowmeter Insert USB Update Drive Flowmeter Administration Tools dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved 21 . Press the Start Flowmeter button to begin normal operations . OTEE: If the USB Update Drive is not removed before the OK button is pressed, the unit may lock-up . The error message may also appear in the text area .
  • Page 14 Upgrading Software This condition requires a hard reboot by pressing and holding the main power button until the unit turns off . When the power button is pressed again the meter should start normally . A successful update is verified by noting the revision letter in the upper right hand corner of the Start screen . It should match the revision letter noted when the updater zip file was extracted .
  • Page 15: Quick Boot

    Quick Boot QUICK BOOT It is highly recommended to configure the to use the Quick Boot process as described in the following . To enable Quick Boot from the main screen select Update (System ► Update) and then press the Set Up Quick Boot button . Display Site Meter...
