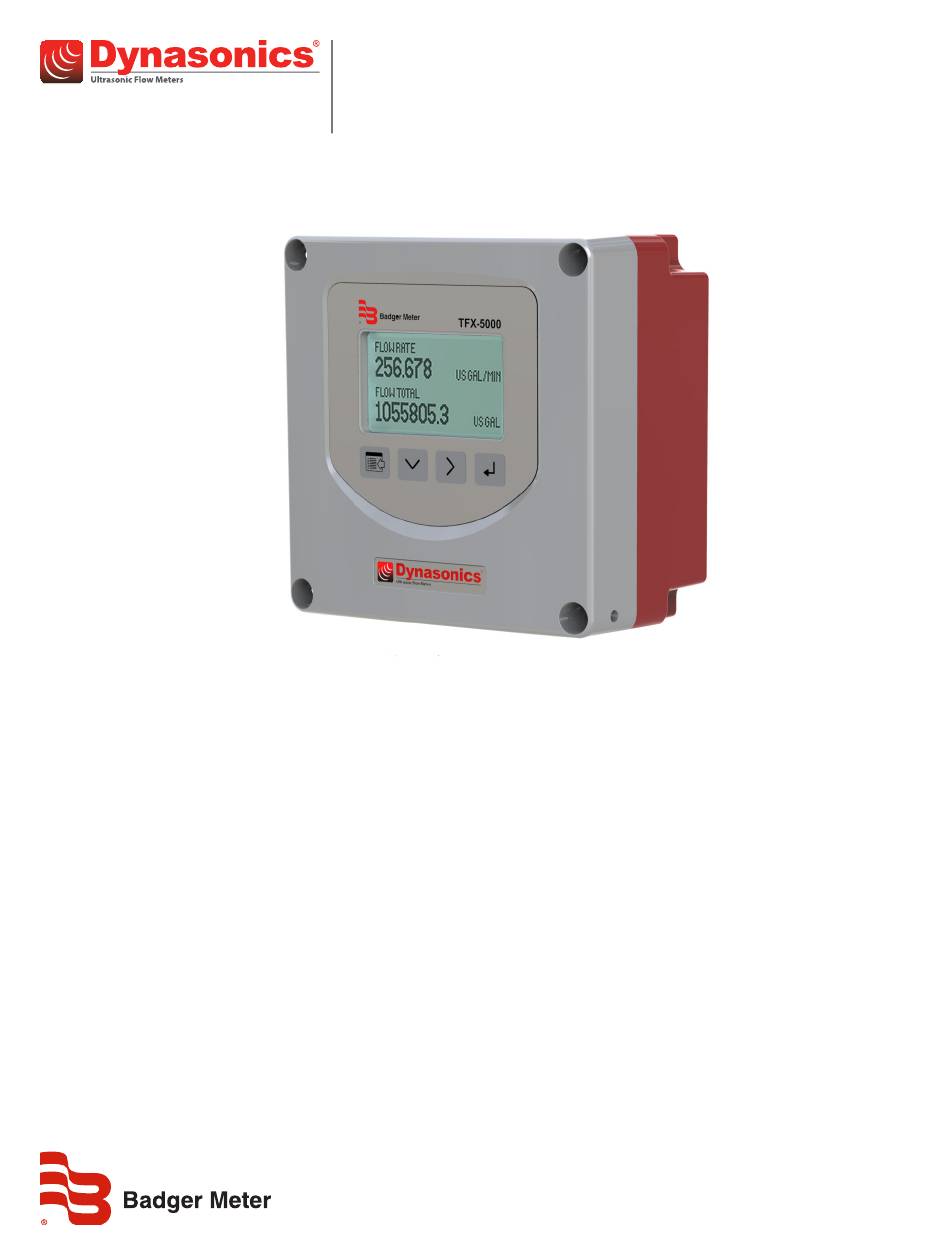

- Page 1 Transit Time Ultrasonic Flow Meters TFX-5000 Meter Modbus RTU Protocol User Manual TTM-UM-03073-EN-01 (August 2019)
-
Page 2: Table Of Contents
Transit Time Ultrasonic Flow Meters, TFX-5000 Meter Modbus RTU Protocol CONTENTS Supported Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Wiring . -
Page 3: Supported Features
Supported Features SUPPORTED FEATURES TFX-5000 meters include an EIA-485 port that is selectable for Modbus RTU or BACnet MS/TP protocol . The meter can be wired on a single daisy chain network and be queried for flow rate and totalizer readings along with diagnostic and other information . -
Page 4: Registers/Starting Address
Registers/Starting Address REGISTERS/STARTING ADDRESS It is important to know whether the master device uses starting addresses or registers/coils as these numbers are offset by 1 . For example, holding output coil 00001 is starting address 00 (hex) . Function Codes TFX-5000 transmitters support the following function codes, as applicable: 01 (0x01 hex) Read Coils 03 (0x03 hex) Read Holding Registers... -
Page 5: Modbus Registers And Coils
Modbus Registers and Coils MODBUS REGISTERS AND COILS Flow Meter Registers Single Double Integer and Precision Precision Descriptive Name Description Long Integer 32-bit 64-bit floating point floating point READINGS Flow rate displayed on home screen . Unit is based on selection for Flow Rate on Screen 40001-40002 40601-40602... - Page 6 Modbus Registers and Coils Single Double Integer and Precision Precision Descriptive Name Description Long Integer 32-bit 64-bit floating point floating point TOTALS (continued) Totalizer Overflow Number of times the net flow total overruns . 42209-42210 — — Counter (Net) Totalizer Overflow Number of times the positive flow total overruns .
-
Page 7: Coils
Modbus Registers and Coils Single Double Integer and Precision Precision Descriptive Name Description Long Integer 32-bit 64-bit floating point floating point COMMUNICATION Modbus Access Modbus Access Type . 46001 — — Defines the maximum time that master will poll the meter . If the meter Modbus Active does not see any communication from the master in the time specified, a 46002... -
Page 8: Energy Meter Registers
Modbus Registers and Coils Energy Meter Registers Single Double Integer and Precision Precision Descriptive Name Description Long Integer 32-bit 64-bit floating point floating point READINGS Flow rate displayed on home screen . Unit is based on selection for Flow Rate on Screen 40001-40002 40601-40602 41201-41204... - Page 9 Modbus Registers and Coils Single Double Integer and Precision Precision Descriptive Name Description Long Integer 32-bit 64-bit floating point floating point TOTALS (continued) Energy/BTU Totalizer Overflow Counter Number of times the gross energy total overruns . 42031-42032 — — (Gross) Total volume as forward flow minus reverse flow .
- Page 10 Modbus Registers and Coils Single Double Integer and Precision Precision Descriptive Name Description Long Integer 32-bit 64-bit floating point floating point TOTALS (continued) Net kWh Totalizer Number of times the net energy total overruns . 42225-42226 — — Overflow Counter Positive kWh Totalizer Number of times the positive energy total overruns .
-
Page 11: Coils
Modbus Registers and Coils Single Double Integer and Precision Precision Descriptive Name Description Long Integer 32-bit 64-bit floating point floating point DIAGNOSTICS Signal Strength Indicates the strength of the ultrasonic signal . 45501 — — Current Output #1 Parameter assigned to Current Output #1 . 45601 —... -
Page 12: Enumerations
Enumerations ENUMERATIONS Parameter Enumeration Value INPUTS/OUTPUTS Current Output Disabled Parameter Enumeration Value Source Flow rate UNITS OF MEASURE Velocity Flow Rate Units Liters per second Signal strength Liters per minute Temperature 1 (Energy models only) Liters per hour Temperature 2 (Energy models only) Cubic meters per second Energy rate (Energy models only) Cubic meters per minute... -
Page 13: Warning And Alarm Message Codes
Warning and Alarm Message Codes WARNING AND ALARM MESSAGE CODES Failure Codes OTEE: F01 indicates that the bootloader could not start the firmware application, so it is not possible to record this failure in the alarm history . Code Description F02 ELECTRONIC ERROR Multiple watchdog timeouts occurred . -
Page 14: Out-Of-Specification Codes
Warning and Alarm Message Codes Out-of-Specification Codes Code Description Correction S01 ELECTRONIC WARNING Fault detected and meter rebooted . Contact factory, update firmware, or repair or replace transmitter . Check calibration . If it does not match the calibration settings on the transducer serial tag, enter field calibration settings . -
Page 15: Informational Events Codes
Warning and Alarm Message Codes Code Description Correction S93 TEMP #2 LOW Temp . #2 is below low alarm setting . Check fluid temperature and RTD #2 . Check alarm settings for Aux Output #1 . S94 TEMP #2 LOW Temp . -
Page 16: Troubleshooting
