Badger Meter s::can con::cube D330 Instruction Manual

upgrading the con::cube D330 with optional features at the side
1 REQUIREMENTS
2 INTRODUCTION
3 INSTRUCTION
3.1 START
3.2 USING SLOT 1-8
3.3 INSTALL 4G GATEWAY
3.4 INSTALL 3G GATEWAY (OLDER VERSION)
3.5 FINISH
4 APPENDIX A: SPECIAL INSTRUCTION NEEDED FOR PROFIBUS AND SDI-12 MODULE
4.1 INSTALLATION OF PROFIBUS SUB-D CONNECTOR
4.2 INSTALLATION OF SDI-12
4.3 SOFTWARE CONFIGURATION
1 Requirements
•
con::cube D-330 running moni::toolV4 or higher
•
Internal modules. The following modules are available:
•
D-315-3GLX
•
D-330-4GLX
•
D-315-out-mA
•
D-315-out-Profibus
•
D-315-out-SDI12
•
D-315-in-mA
•
D-315-in-relay
2 Introduction
By adding or removing con::cube internal modules optional features can be added or removed. Normally this
is done at the s::can factory. A later upgrading of the con::cube with optional feature on site is possible with
help of the following instruction. To read more about optional con::cube features or how to use it, refer to the
con::cube and moni::tool manual.
3 Instruction
3.1 Start
•
Power off the con::cube and ensure ESD protected environment.
•
Open the con::cube housing (four hexagonal head screws removed)
•

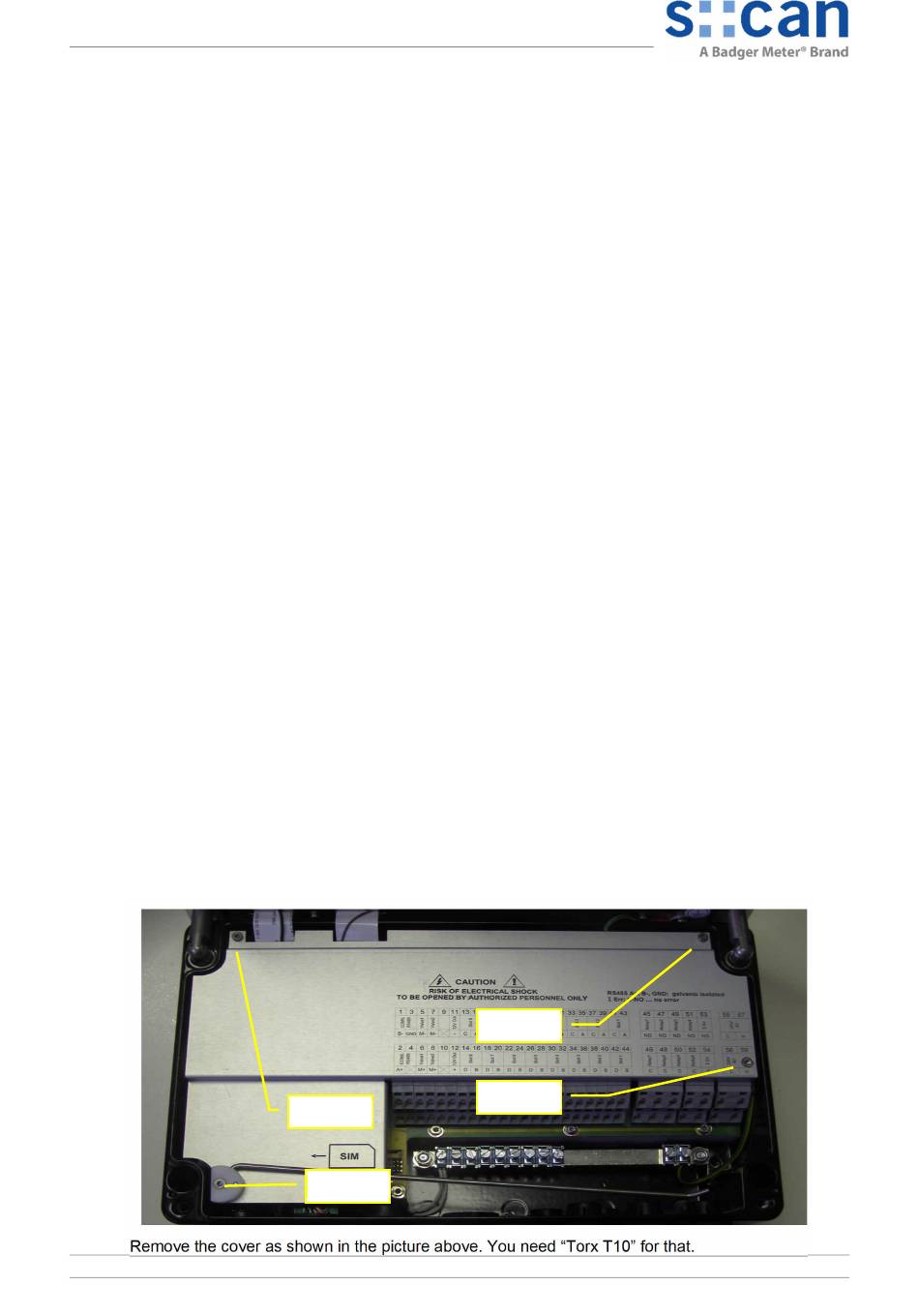

Remove the cover as shown in the picture above. You need "Torx T10" for that.
s::can GmbH, Vienna
Gateway to 3G (older version)
Gateway to 4G
2 analog outputs (max. 8 modules / 16 outputs possible)
Profibus DP (max. 1 output module)
SDI 12 (max. 1 output module)
2 analog inputs (max. 8 modules / 16 inputs possible)
2 digital inputs (max. 7 modules / 14 inputs possible)
Unscrew
Unscrew
Unscrew
Unscrew
