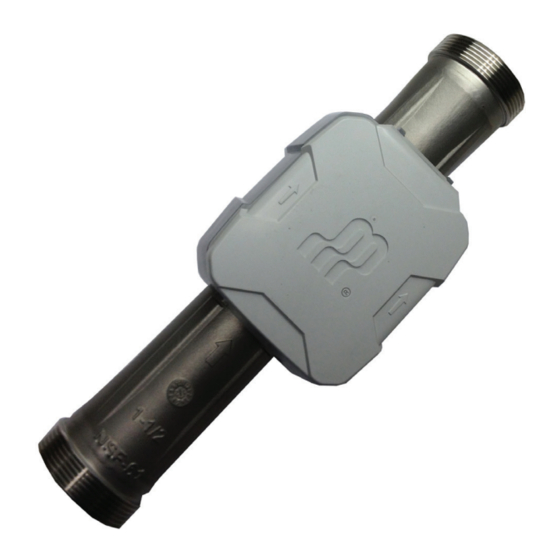

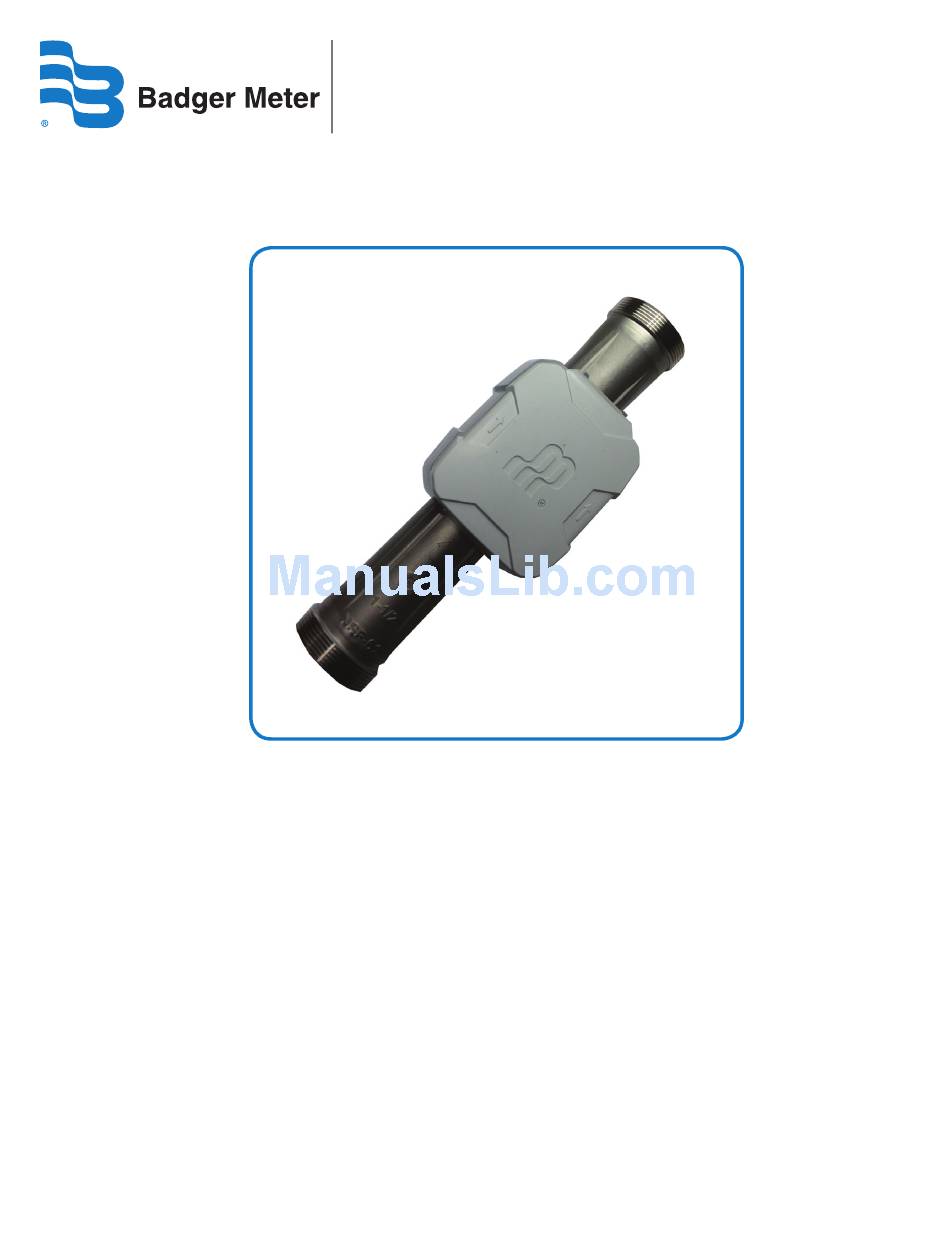

- Page 1 E-Series® Ultrasonic Meters Cold Water Meters DN15, DN20, DN25, DN32, DN40, DN50 User Manual ESM-UM-00255-EN-01 (September 2017)
- Page 2 E-Series® Ultrasonic Meters Page ii ESM-UM-00255-EN-01 September 2017...
-
Page 3: Table Of Contents
User Manual CONTENTS About the E-Series Ultrasonic Meter Safety Information Product Unpacking and Inspection Requirements Reading Data Management Software Mobile Reading Systems Handheld Reading Systems Meter Storage Mode Special Instructions for Removing a Meter Special Fittings and Accessories Installing E-Series Ultrasonic Meters Outdoor Installations Indoor Installations Installation Instructions... - Page 4 E-Series® Ultrasonic Meters Page iv ESM-UM-00255-EN-01 September 2017...
-
Page 5: About The E-Series Ultrasonic Meter
About the e-series ultrasonic meter ABOUT THE E-SERIES ULTRASONIC METER The Badger Meter E-Series Ultrasonic meter is an electronic meter using ultrasonic technology and solid-state electronics contained in a compact, totally encapsulated, weatherproof and UV-resistant housing for residential and commercial... -
Page 6: Meter Storage Mode
• For the DN15… DN32 meters, the line opening for the meter should match the laying length of the meter, allowing slight additional space for coupling gaskets The inlet and outlet sides of the meter setting should be axially aligned to the pipe •... -
Page 7: Special Instructions For Removing A Meter
SPECIAL FITTINGS AND ACCESSORIES To accommodate DN15…DN32 meter installations, special fittings and accessories are available Metal meter setters, re- setters, horns and meter yokes are available for holding the service pipe in proper alignment to the meter and laying length spacing The metal setters and meter yokes can provide an electrical continuity to protect meters and consumers from electrical shocks Using a meter setter for the DN40 and DN50 is possible—however, be aware that the setter may affect the... -
Page 8: Installation Instructions
10 Install the meter in the pipeline in a horizontal or vertical position so that the flow arrow on the meter housing points in the same direction as water flow Registration should be upright 11. For DN15…DN32 a Start the coupling nuts at the threaded meter ends Verify that the nuts are properly aligned to avoid cross-threading... -
Page 9: Protect Against Leakage
E-SERIES ULTRASONIC METER OPERATIONS Meter Display The Badger Meter E-Series Ultrasonic meters use a nine-digit Liquid Crystal Display (LCD) that toggles between the following displays: Total Consumption display, High Resolution Total display, Rate of Flow display, Firmware Version display, Checksum... -
Page 10: Activating The Display
The unit of measure and resolution are factory programmed and options include gallons, cubic feet and cubic meters For DN15…DN32 meters, totalized flow displays up to 10 million gallons with a resolution of 0 01 gallons, one million cubic feet with a resolution of 0 001 cubic feet, or 100 thousand cubic meters with a resolution of 0 0001 cubic meters... -
Page 11: Consumption
This display also includes indicator lines above and below the digits to provide the electronic equivalent of white and black number wheels on mechanical registers The following examples show typical displays for three different units of measure: DN15…DN32 Meters DN40 and DN50 Meters Gallons... -
Page 12: Amr/Ami Output
E-Series® Ultrasonic Meters, Cold Water Meters AMR/AMI Output The Ultrasonic meter is an integrated design where the electronics are housed, fully potted and permanently sealed to the meter housing Programmed to the high resolution industry standard ASCII encoder protocol, the Ultrasonic meters have the ability to transmit meter status indicators to ORION Cellular, Fixed Network (SE) and Migratable (ME) endpoints as part of the extended encoder/meter reading message The details can also be read through an IR interface The output protocol is indicated on the AMR output wire and is determined at the time of order... - Page 13 E-series ultrasonic meter operations The following chart indicates the E-Series Ultrasonic meter conditions when connected to Badger Meter ORION Cellular and Fixed/Migratable (SE/ME) AMR/AMI endpoints The chart does not apply to ORION Classic (CE) or GALAXY endpoints The E-Series will display the status indicators, but...
-
Page 14: Maintenance
E-Series® Ultrasonic Meters, Cold Water Meters MAINTENANCE Badger Meter E-Series Ultrasonic meters are designed and manufactured to provide long-term service with no maintenance The enclosure, which includes the electronic meter’s ultrasonic sensors, battery and display, is completely potted, permanently sealed, and non-removable... -
Page 15: Specifications
Specifications SPECIFICATIONS E-Series Ultrasonic DN15 DN20 DN25 DN32 DN40 DN50 Meter Size 15 mm (5/8 in ) 20 mm (3/4 in ) 25 mm (1 in ) 25 mm (1 in ) 32 mm (1-1/4 in ) 40 mm (1-1/2 in ) - Page 16 The Americas | Badger Meter | 4545 West Brown Deer Rd | PO Box 245036 | Milwaukee, WI 53224-9536 | 800-876-3837 | 414-355-0400 México | Badger Meter de las Americas, S.A. de C.V. | Pedro Luis Ogazón N°32 | Esq. Angelina N°24 | Colonia Guadalupe Inn | CP 01050 | México, DF | México | +52-55-5662-0882 Europe, Eastern Europe Branch Office (for Poland, Latvia, Lithuania, Estonia, Ukraine, Belarus) | Badger Meter Europe | ul.
