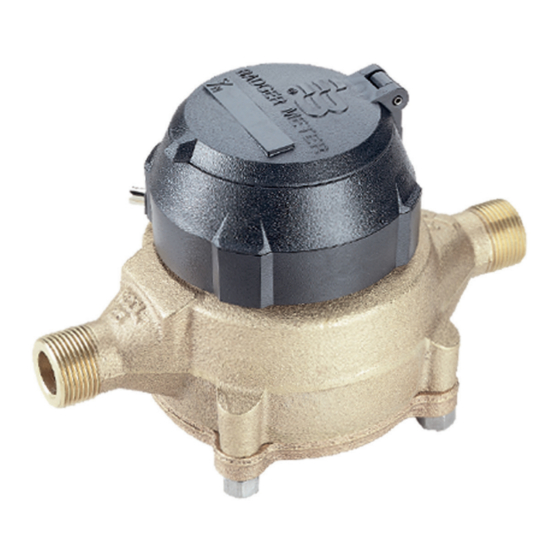

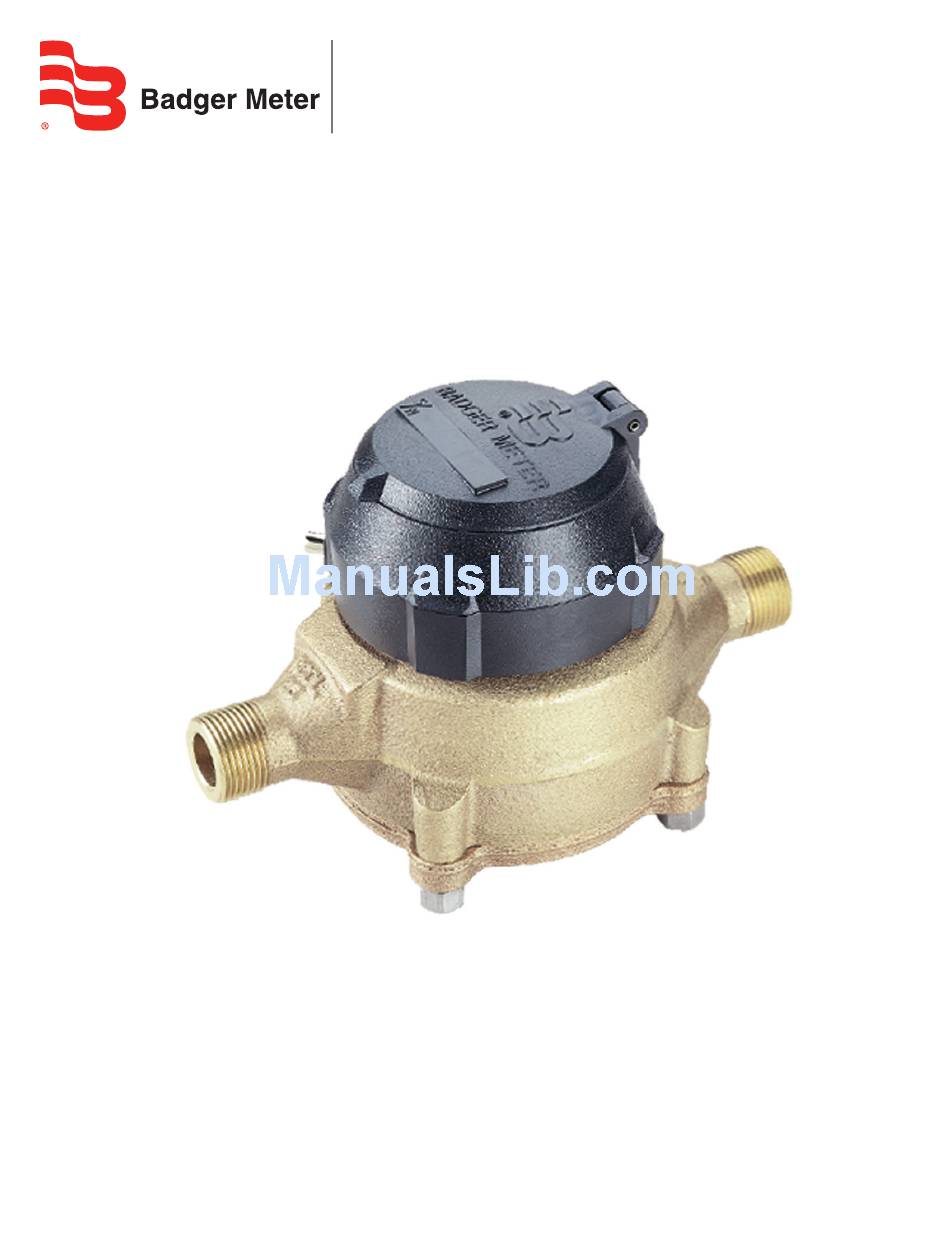

- Page 1 Recordall® Industrial Meters Nutating Disc Meter User Manual RDM-UM-01089-EN-06 (September 2014)
- Page 2 Recordall® Industrial Meters, Nutating Disc Meter CONTENTS Description Operating Principle Unpacking and Inspection Installation General Operating Instructions Manual Operation Accessory Controlled Operation Shutdown Instructions Maintenance Preventive Maintenance Calibration Check and Adjustment Servicing Page 2 RDM-UM-01089-EN-06 September 2014...
- Page 3 Description DESCRIPTION The Badger Meter Recordall (RCDL) positive displacement meters are one of the most cost effective methods in metering industrial fluids The RCDL meter has a simple, efficient design for high accuracy and repeatability over the entire meter flow range Available in five sizes, 1/2"...
-
Page 4: Unpacking And Inspection
Unpacking and Inspection UNPACKING AND INSPECTION Upon receipt of meter, perform the following: OTEE: If damage to the shipping container is evident, request the carrier to be present when meter is unpacked 1 Carefully open the shipping container Remove all the cushioning material surrounding the meter and carefully lift the meter from the container Retain all of the packing material for possible use in reshipment or storage of the meter 2 Visually inspect the meter and the accessory device for any physical damage such as scratches, loose or broken parts, or any other damage that may have occurred during shipment of the product... - Page 5 General Operating Instructions EXCESS GAP LENGTH MAY CAUSE EXCESSIVE STRAIN ON CONNECTION ASSEMBLIES. c Remove the connections and install one connection piece in each end of the facility pipe gap provided in step 4b Allow for the gaskets at the inlet and the outlet spuds of the meter d Install the meter, making sure that the flow arrow marking on the meter housing is in the correct relationship to the direction of the fluid flow in the system e Tighten the meter connections Note the instructions on packaging from connection assembly when tightening...
- Page 6 Maintenance MAINTENANCE Preventive Maintenance Preventive maintenance consists of periodic inspection and cleaning procedures Perform the procedures at regular intervals and correct any defects before resuming operation of the meter Periodic Inspection 1 Visually inspect the meter and teh accessory for missing hardware, loose connections, broken register glass, damaged wiring, or other signs of wear or deterioration Repair or replace components as required 2 Verify the proper flow rate and pressure for meter A loss in pressure, with the resulting flow rate decrease, may indicate the meter screen is clogged and requires cleaning...
- Page 7 4 If change-gear charts are available, select a new change-gear combination that matches the corrected change-gear ratio If new gears are not available, submit an order for corrective change-gears to the nearest Badger Meter Representative or contact the Industrial Division of Badger Meter, Inc...
- Page 8 The Americas | Badger Meter | 4545 West Brown Deer Rd | PO Box 245036 | Milwaukee, WI 53224-9536 | 800-876-3837 | 414-355-0400 México | Badger Meter de las Americas, S.A. de C.V. | Pedro Luis Ogazón N°32 | Esq. Angelina N°24 | Colonia Guadalupe Inn | CP 01050 | México, DF | México | +52-55-5662-0882...
