Summary of Contents for Badger Meter Dynasonics DFX Series

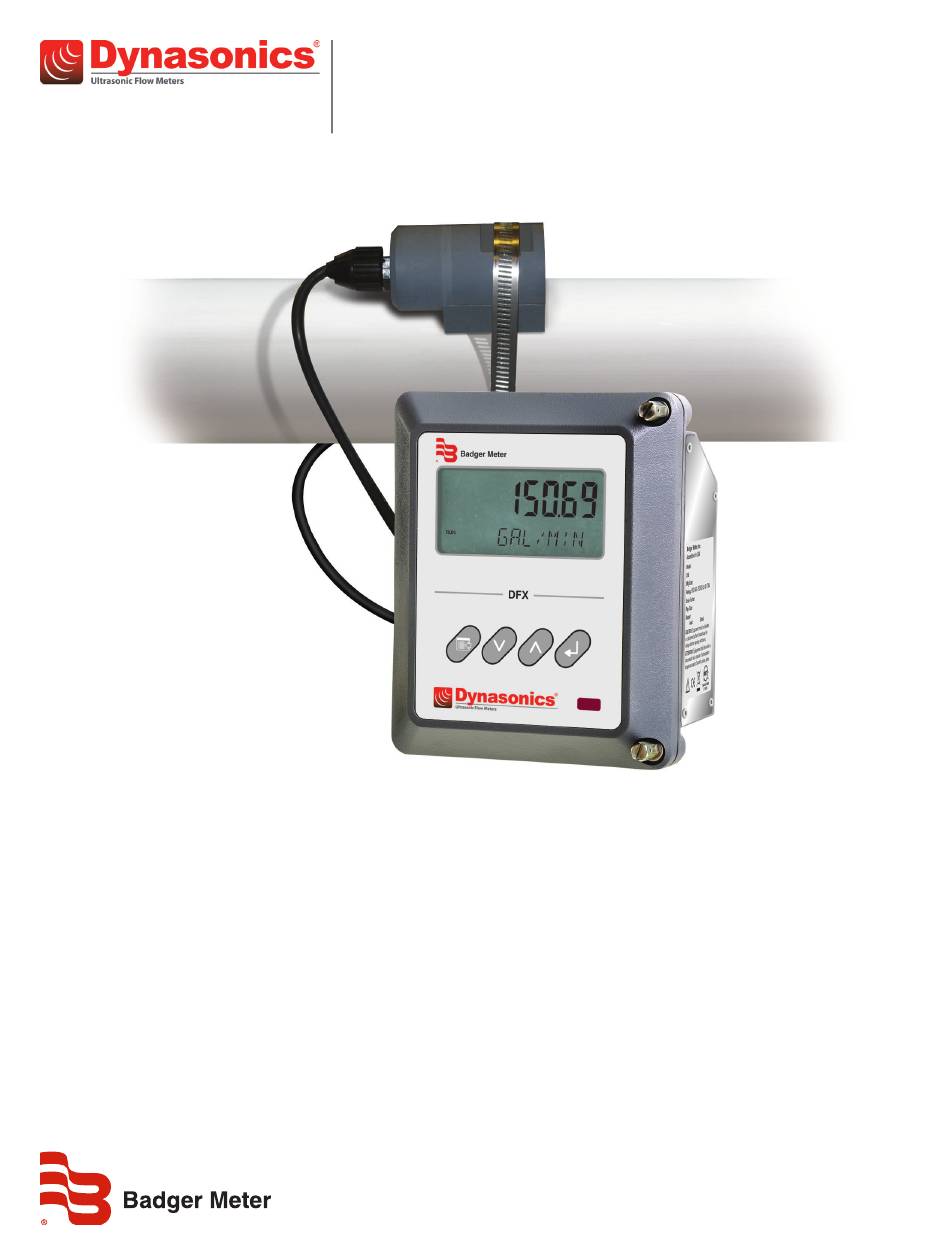

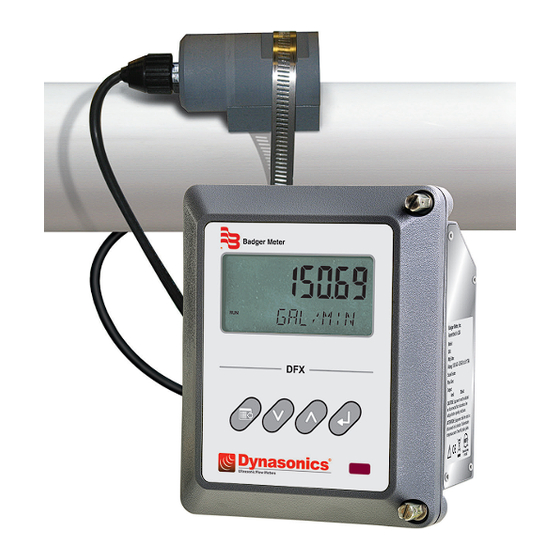

- Page 1 Doppler Ultrasonic Flow Meters Series DFX User Manual DPP-UM-00256-EN-03 (August 2019)
- Page 2 Doppler Ultrasonic Flow Meters, Series DFX Page 2 DPP-UM-00256-EN-03 August 2019...
-
Page 3: Table Of Contents
User Manual CONTENTS Scope of This Manual Unpacking and Inspection Safety Terminology and Symbols Quick-Start Operating Overview Transducer Location Pipe Preparation and Transducer Mounting Transducer Connections Startup Introduction General Application Versatility User Safety Data Integrity Product Identification Transducer Installation Unpacking and Inspection Mounting Locations Pipe Preparation DT9 Clamp-On Transducer Mounting... - Page 4 Doppler Ultrasonic Flow Meters, Series DFX Control Relay Output Module Rate Pulse Output Module Instrument Programming General Keypad Operation Totalizer Reset Menu Structure Hierarchy Menu Maps Parameters Setup Parameters Module Configuration Parameters Advanced Configuration Parameters Startup and Troubleshooting Startup Troubleshooting Specifications North American Pipe Schedules Part Number Construction...
-
Page 5: Scope Of This Manual
Scope of This Manual SCOPE OF THIS MANUAL This manual is divided into two main sections: • “Quick-Start Operating Overview” on page 6 is intended to help you get the DFX flow meter up and running quickly Refer to the detailed instructions if you require additional information •... -
Page 6: Quick-Start Operating Overview
Quick-Start Operating Overview QUICK-STAOT OPEOATING OVEOVIEW This manual contains detailed operating instructions for all aspects of the DFX flow instrument The following condensed instructions are provided to help you get the instrument up and running as quickly as possible This pertains to basic operation of the clamp-on transducer only If specific instrument features, a hazardous area installation or an alternate transducer style are to be used—or if you are unfamiliar with this type of instrument—see the appropriate section in the manual for complete details... -
Page 7: Transducer Connections
Quick-Start Operating Overview Top View FLOW of Pipe Figure 3: Transducer direction Transducer Connections 1 Mount the monitor within the length of the transducer cables 2 Route the transducer cables through the center conduit hole in the bottom of the enclosure and connect to terminal block J4 The terminal blocks are a removable and can be disconnected to simplify wiring access See the wiring diagram inside the door for reference Startup... -
Page 8: Introduction
Introduction INTOODUCTION General The DFX ultrasonic flow meter is designed to measure volumetric flow of solids-bearing or aerated liquid within a closed conduit Transducers are available as non-contacting (DT9) or insertion probe (DP7) types DT9 non-contacting transducers are strapped to the outside of a pipe and are suitable for most installations where the pipe material supports the transmission of ultrasound Some pipe materials, such as concrete pressure pipe and some plastic lined pipes do not allow ultrasound to penetrate to the liquid inside For these applications, use the DP7 insertion probe The flow meter operates by transmitting an ultrasonic sound from a transmitting transducer through the pipe wall or from... -
Page 9: User Safety
Introduction User Safety The DFX flow meter employs modular construction and provides electrical safety for the operator The enclosure is constructed from rugged polycarbonate plastic with UV inhibitors The enclosure does not contain any conductive materials that can become energized while the door is closed The keypad is made of polycarbonate and is designed for outdoor use The AC power transformer provides 4000 Volts of isolation from the power supply mains The display face contains voltages no greater than 24V DC Output modules are optically isolated from external power supplies and provide a great degree of immunity to ground loops... -
Page 10: Transducer Installation
Transducer Installation TOANSDUCEO INSTALLATION Unpacking and Inspection Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment OTEE: If damage is found, request an inspection by the carrier’s agent within 48 hours of delivery and file a claim with the carrier A claim for equipment damage in transit is the sole responsibility of the purchaser... - Page 11 Transducer Installation Select a transducer mounting location with adequate straight runs of pipe, both upstream and downstream, to achieve stable readings Figure 6 for examples of minimum upstream and downstream requirements Piping Con guration Upstream Downstream Pipe Pipe and Transducer Positioning Diameters Diameters * **...
-
Page 12: Pipe Preparation
Transducer Installation Pipe Preparation Before the transducer heads are mounted to the pipe surface, an area slightly larger than the flat surface of the transducer face must be prepared If pipe insulation is present, it must be peeled back to expose the pipe surface Use a wire brush to remove loose paint, rust, scale or dirt Paint, if bonded well to the pipe surface, does not need to be removed Any bumps present on ductile iron pipe do not need to be removed Thoroughly dry the mounting surfaces so that the couplant grease bonds to the surface... -
Page 13: Dp7 Probe Transducer Mounting
Transducer Installation 2 Wrap the strap around the pipe where the transducers mount Leave the strap loose enough to allow the transducers to be placed underneath If multiple straps are being used, wrap electrical tape around all but one strap connection to secure the strap worm screws in place 3 Spread an even layer of coupling compound, approximately 1/8 in (3 mm) thick, to the prepared transducer mounting areas of the pipe... - Page 14 Transducer Installation Figure 9: Hot tap installation The Bronze Hot Tap Kit (p n D030-1006-001) and the Stainless Steel Hot Tap Kit (p n D030-1006-002) include an isolation valve assembly and are designed for installation in pipes under pressure, up to 700 psi (48 bar) at 70° F (21° C) All items required for installation are provided with the kit, except for the 1-1/2 in NPT weld coupling or service saddle and the drilling and welding equipment These instructions call for the use of a drilling machine designed for operations under pressure (for example, Mueller Co , Water Products Division)
- Page 15 Transducer Installation Probe Cables Before inserting the probe into the pipe, the sensor cables should be routed to the transmitter location Verify that the supplied cable length is sufficient to meet the installation requirements While transducer cable extension is not generally recommended, if additional transducer cable length is required, use cable and connectors of the correct type and impedance In many cases, especially if a splice my be exposed to water or other liquids, it may be more effective to replace the entire cable Transducers use RG59, 75 Ohm coaxial cable, Twinax (Belden #9463) or (Belden # 9463DB) 78 Ohm...
- Page 16 Transducer Installation Probe Insertion Before inserting the DP7 probe into the piping system, calculate the probe insertion depth Refer to the paragraphs that follow and Figure 10 on page 17 for information regarding this process The variables required are: • The overall probe length •...
- Page 17 Transducer Installation OTEE: For some low pressure/low temperature applications less than 30 psi (2 1 bar) and less than 100° F (38° C), the probe may be pushed in by hand to decrease the insertion time Insertion Measurement Valve and Seal Stack Pipe Wall Length...
-
Page 18: Transmitter Installation
Transmitter Installation TOANSMITTEO INSTALLATION Unpacking and Inspection Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment OTEE: If damage is found, request an inspection by the carrier’s agent within 48 hours of delivery and file a claim with the carrier A claim for equipment damage in transit is the sole responsibility of the purchaser... -
Page 19: Dimensions
Transmitter Installation Dimensions 4.25" (108.0) 5.75" 3.93" (146.1) (99.8) PROGRAM RELAY 1 RELAY 2 7.00" (177.8) (3) ½” (m20) Conduit Power Transducer Input/Output Holes Connection Connection Connection WALL MOUNT (OPTION) PANEL MOUNT (OPTION) 1.99” 0.07”(1.8) (50.5) Maximum Radius 3.31 6.25” (84.1) (158.8) 5.19"... -
Page 20: Transducer Wiring Connections
Transmitter Installation Transducer Wiring Connections To access terminal strips for electronic connectors, loosen the two screws in the enclosure door and open the door 1 Guide the transducer connectors through the middle conduit hole located of the transmitter enclosure Secure the transducer cable with the supplied conduit nut (See Figure Transducer... -
Page 21: Power Supply Wiring Connections
Transmitter Installation Power Supply Wiring Connections Connect power to the screw terminal block marked J2 through the conduit hole on the left side of the enclosure See Figure 15 for AC power supplies and Figure 16 for DC power supplies Use wiring practices that conform to local and national codes (for example, The National Electric Code Handbook in the U S ) CAUTION ANY OTHER WIRING METHOD MAY BE UNSAFE OR CAUSE IMPROPER OPERATION OF THE INSTRUMENT. -
Page 22: Ac Power Supply Connections
Transmitter Installation AC Power Supply Connections LINE VOLTAGES MAY BE PRESENT WITHIN THE ENCLOSURE. THERE IS A RISK OF SHOCK, SPARKS AND DEATH IF THIS PRODUCT IS HANDLED IN AN UNSAFE WAY. SERVICE SHOULD ONLY BE DONE BY QUALIFIED PERSONNEL. 1 Verify that the jumpers at JP3 are properly oriented for the power supply See Figure 15 2 Verify that the jumpers at JP1 and JP2 are not present... -
Page 23: Multiple Meter Installations
Transmitter Installation DC Power 12 to 28 VDC Connections 7 Watts Maximum Figure 17: DC power connection Multiple Meter Installations The DFX flow meter contains a provision for synchronizing multiple DFX flow meters together Synchronization is required when more than one DFX flow meter is mounted on a common pipe or header system If the meters are not synchronized, a phenomena called “cross-talk”... -
Page 24: Iso Modules
Transmitter Installation Master Meter Slave Meter Slave Meter WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM To avoid serious injury or damage, To avoid serious injury or damage, To avoid serious injury or damage, CAUTION! CAUTION! CAUTION! disconnect electrical power before servicing this meter disconnect electrical power before servicing this meter disconnect electrical power before servicing this meter Connections... -
Page 25: Ma Output Module
Transmitter Installation 4…20 mA Output Module The 4…20 mA Output Module interfaces with most recording and logging systems by transmitting an analog current signal that is proportional to system flow rate Configure the 4…20 mA ISO-MOD via jumper selections for an internally powered (Figure 22) or externally powered (Figure... -
Page 26: External Power Configuration
Transmitter Installation External Power Configuration Remove the two jumpers located at JP1 and JP2 on the module See Figure 23 In this configuration, the 4…20 mA module requires power from an external DC power supply The voltage of the external power source must be sufficient to power the module and drive the loop load The loop loss attributed to the ISO-MOD is 7V DC, so the minimum voltage required to power a loop can be calculated using the following formula: Loop voltage (min) = (loop load Ohms ×... -
Page 27: Control Relay Output Module
Transmitter Installation Control Oelay Output Module Two independent SPDT (single-pole, double-throw, Form C) relays are contained in this module The relay operations are user configured via the front panel to act in either a flow rate alarm, error alarm or totalizing pulse The relays are rated for 200V AC maximum and have a current rating of 0 5 A resistive load (175V DC @ 0 25 A resistive) Use a secondary relay whenever the Control Relay ISO-MOD is used to control inductive loads such as solenoids and motors Typical relay connections are illustrated in... -
Page 28: Rate Pulse Output Module
Instrument Programming Oate Pulse Output Module The Rate Pulse Output Module is used to transmit information to external counters and PID systems via a frequency output that is proportional to system flow rate The frequency output range of the Rate Pulse Module is 0…2500 Hz This module has two types of outputs: one simulates the output of the coil of a turbine flow meter and the other is an open-collector type that does not source voltage at its output Both outputs may be connected simultaneously The turbine meter output creates a 500 mV peak-to-peak saw-tooth waveform that is not referenced to ground This output... -
Page 29: Instrument Programming
Instrument Programming INSTOUMENT POOGOAMMING General The DFX flow meter is configured through the keypad interface All entries are saved in non-volatile FLASH memory that is retained indefinitely in the event of power loss Keypad Operation The DFX flow meter contains a four-key tactile feedback keypad interface that lets you view and change configuration parameters used by the meter’s operating system Figure 27: Keypad layout The DFX flow meter has two basic sets of programming procedures: list item selection and numeric value entry... -
Page 30: Menu Structure
Menu Structure MENU STOUCTUOE Hierarchy The DFX flow meter has a hierarchical menu structure See “Menu Maps” on page 31 for a visual path to the configuration parameters Use the table below as a quick reference guide to the pages with detailed information on each parameter Advanced Module Setup... -
Page 31: Menu Maps
Menu Structure Menu Maps Figure 28: Menu Map 1 August 2019 DPP-UM-00256-EN-03 Page 31... - Page 32 Menu Structure Figure 29: Menu map 2 Page 32 DPP-UM-00256-EN-03 August 2019...
-
Page 33: Parameters
Parameters PAOAMETEOS The following tables list and explain the parameters The tables are divided into three main sections: • Setup parameters • Module configuration parameters • Advanced setup parameters Setup Parameters The setup menu contains all of the configuration parameters necessary to make the transmitter operational Parameter Function Options... - Page 34 Parameters Parameter Function Options Description The SCALE F function applies a correction factor/multiplier to the readings and outputs so the DFX system can agree with a different or reference flow meter, or to compensate for an installation where there is inadequate straight pipe to obtain a laminar flow profile A factory calibrated system should be set to 1 000 The range of settings for this entry is 0 5000…5 000 The SCALE F Scale factor value (Enter a numeric value)
-
Page 35: Module Configuration Parameters
Parameters Module Configuration Parameters When YES is selected at CFG MOD1 or CFG MOD2, these MOD TYPE parameters become available: • NONE • 4…20 mA • RATE • RELAY Once the module is configured, the menu moves to the PASSWORD parameter MOD TYPE Function Options... -
Page 36: Advanced Configuration Parameters
Parameters Advanced Configuration Parameters Parameter Function Options Description By changing the Security Password from 0000 to some other value (any value between Change the 0001…9999), configuration parameters are not accessible without first entering that value when PASSWORD 0…9999 security password prompted If the value is left at 0000, no security is invoked and unauthorized changes could be made Access to resetting of the Totalizer is also protected by this password AGC MODE –... - Page 37 Parameters Parameter Function Options Description Hardware Filter FILTER – Hardware Filter Selection NONE – No Filter LOW – (1600 Hz Cutoff ) MEDIUM – (350 Hz Cutoff ) HIGH – (250 Hz Cutoff ) Select the hardware filter with a cutoff frequency that is above the Doppler shift frequency to be measured The Doppler shift frequency is found by multiplying the flow velocity (in FPS) by 80 For example, if the flow velocity is 4 FPS then the cutoff frequency is 4 ×...
-
Page 38: Startup And Troubleshooting
Startup and Troubleshooting Frequency 51000 AUTO MANUAL AutoHOLD FAST MIN MX LOGGING HOLD MIN MAX CANCEL SAVE Hz % ms RANGE SETUP °F Gain °C ac+dc ac+dc µA Signal ac+dc µA Strength ac+dc VIEW MEM CLEAR MEM TEMPERATURE µA 10A MAX CAT III 400mA FUSED... -
Page 39: Troubleshooting
Startup and Troubleshooting Troubleshooting Symptom Cause/Oesolution • Insufficient power to monitor Measure voltage at J2 • Power supply not properly wired to J2 See “Power Supply Wiring Connections” on page 21 Display does not light up • Fuse F1 is open or not installed •... -
Page 40: Specifications
Specifications SPECIFICATIONS Velocity Oange 0 15…30 fps (0 05…9 mps) Accuracy ±2% full scale, over calibrated span Liquids containing a minimum of 100 ppm of useful sonic suspended reflectors greater than 35 micron size, and Liquid Types at least 25% of the overall particle volume is larger than 100 microns NEMA 4X (IP 66), polycarbonate, stainless steel, brass, Monitor Enclosure plated-steel mounting brackets 7 00 in H ×... -
Page 41: North American Pipe Schedules
North American Pipe Schedules NOOTH AMEOICAN PIPE SCHEDULES Steel, Stainless Steel, PVC Pipe, Standard Classes SCH 60 X STG. SCH 80 SCH 100 SCH 120/140 SCH 180 Wall Wall Wall Wall Wall Wall 1 315 0 957 0 179 0 957 0 179 0 815 0 250... - Page 42 North American Pipe Schedules Steel, Stainless Steel, PVC Pipe, Standard Classes (continued) SCH 10 SCH 5 SCH 20 SCH 30 SCH 40 (Lt Wall) Wall Wall Wall Wall Wall Wall 1 315 1 185 0 065 1 097 0 109 1 049 1 049 0 133...
- Page 43 North American Pipe Schedules Copper Tubing, Copper and Brass Pipe, Aluminum Copper Tubing Copper Tubing Copper Copper Nominal Nominal & Brass Alum. & Brass Alum. Diameter Diameter Pipe Pipe Type Type 0 625 0 625 0 625 0 840 3 625 3 625 3 625 4 000...
- Page 44 North American Pipe Schedules Cast Iron Pipe, Standard Classes, 3…20 inch Class Size 3 80 3 96 3 96 3 96 Wall 0 39 0 42 0 45 0 48 — — — — 3 02 3 12 3 06 3 00 4 80 5 00...
- Page 45 North American Pipe Schedules Cast Iron Pipe, Standard Classes, 24…84 inch Class Size 25 80 25 80 26 32 26 32 26 90 26 90 27 76 27 76 Wall 0 76 0 98 1 05 1 16 1 31 1 45 1 75 1 88...
-
Page 46: Part Number Construction
Part Number Construction PAOT NUMBEO CONSTOUCTION DDFX Digital Doppler Ultrasonic Flow Transmitter D D F X D 2 Transmitter Type Power Supply Input/Output 1 Input/Output 2 Totalizer Approvals Options 2) Rate and Totalizer A) 115V AC N) None N) None A) Eight digit N) General safety... - Page 47 User Manual INTENTIONAL BLANK PAGE August 2019 DPP-UM-00256-EN-03 Page 47...
- Page 48 The Americas | Badger Meter | 4545 West Brown Deer Rd | PO Box 245036 | Milwaukee, WI 53224-9536 | 800-876-3837 | 414-355-0400 México | Badger Meter de las Americas, S.A. de C.V. | Pedro Luis Ogazón N°32 | Esq. Angelina N°24 | Colonia Guadalupe Inn | CP 01050 | México, DF | México | +52-55-5662-0882 Europe, Eastern Europe Branch Office (for Poland, Latvia, Lithuania, Estonia, Ukraine, Belarus) | Badger Meter Europe | ul.
