Page 2
Ultrasonic Flow Meters, RS-900w Polymer CONTENTS Scope of this Manual Introduction Installation General Installation Information Installation Details Mechanical Installation Procedure Electrical Installation Procedure LED Light Operation Controller Settings Calibration Table Specifications Troubleshooting Page ii HYB-UM-03506-EN-01 April 2022...
Page 3

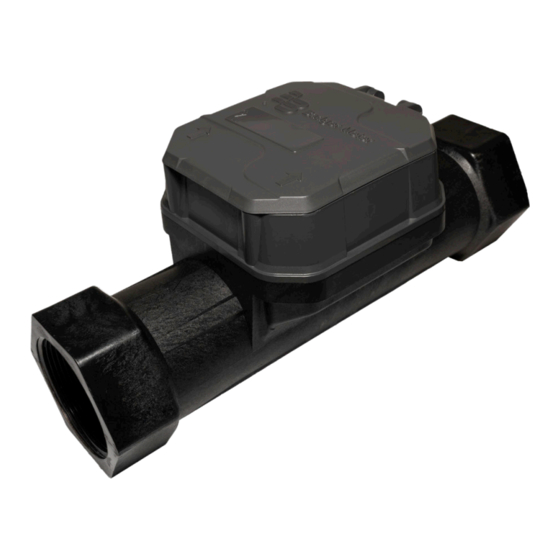

Scope of this manual SCOPE OF THIS MANUAL This manual contains installation, operation and maintenance procedures for the Dynasonics RS-900w Polymer Ultrasonic flow meters Proper performance and reliability of the product depend upon installation in accordance with these instructions This safety sign signifies that this document must be read prior to starting work or before operating equipment INTRODUCTION The RS-900w Polymer Ultrasonic Flow Meters can be used with any compatible...
Page 4
2 Route the cable from the RS-900w flow meter to the irrigation controller or a Badger Meter flow monitor/endpoint The cable may be extended up to 2000 feet Be sure to leave enough flexibility in the cable or conduit to allow for...
Page 5
Installation 3 When connecting to an irrigation controller or Badger Meter flow monitor/ endpoint, locate the section of terminal strip on the monitor labeled SENSOR INPUT or SENSOR Connect the red (or white) wire to IN, SIGNAL (+) or SIGNAL terminal, connect the black wire to GND, SIGNAL (–) or COM terminal...
Page 6
This information is required when calibrating an output board, or when using the raw flow meter data as direct output to interface with a device that is not a Badger Meter product Calibration Table Size...
Page 7
Specifications SPECIFICATIONS Body: glass filled nylon Materials Upper: polyphenylene oxide 1 in female taper threaded (NPT or BSP) Sizes 1-1/2 in female taper threaded (NPT or BSP) 2 in female taper threaded (NPT or BSP) Normal Flow Range Extended Low Flow Range Meter Flow Range Accuracy...
