1. Important Safety Instructions As an AC power supply equipment, the inverter’s output voltage is with the same level as that of household power plug. Mind the AC output terminals, or you may get an electric shock and result in life danger! Attentions: ...
Page 5
cross section of wire should not be less than 4mm The wire connects between battery and inverter should be shorter than 3m, the current density should be less than 3.5A/mm while the output of inverter is fully loaded. If the wire longer than 3m, the current density should be reduced.

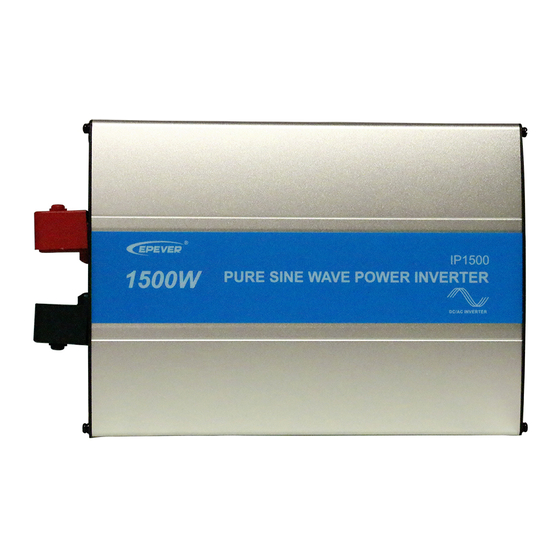

2. Introduction IPower series is a kind of pure sine wave inverter which can convert. 12/24/48VDC to 220/230VAC(or 110/120VAC). Industrial design, compared with the civil design, has a wider operating temperature, easy installation and operation. The wide input voltage range is ideal for solar system application.
4. Wiring (1)12/24/48Vsystem DC input (2) 220/230V AC(or 110/120V) output...
Page 9
Operation Steps: Step 1: Turn the power switch of the inverter to OFF Step 2: Disconnect the input breaker or the fuse between inverter and battery, connect the battery terminals (‘+’ with red line and ‘-’ with black line). Do not connect the poles by contraries. Step 3: Use the cable no less than 4mm to connect the grounding terminal of the inverter to the ground.
5. Functions DC Input Panel AC Output Panel...
Page 11
❶ ❼ DC Input Terminal Positive RS485 communication port ❷ ❽ DC input voltage range USB output port (5VDC/1A) ❸ ❾ DC Input Terminal Negative AC output switch ❹ ❿ Ventilation Fan Mode switch ❺ ➀ Fault indicator(red) Grounding Terminal ❻...
Page 12
Australia/New Zealand European Terminal(IP1000 and above models)...
Page 13
(4) RS485 communication port (IP1000 and above models optional) The RJ45 interface pin definition is shown below: Pins Define 5VDC RS485-B RS485-A (5) Mode Switch When the switch No.1 is on the ON side, output frequency is 60Hz, otherwise is 50Hz.
6. Protection Condition Protection Phenomenon and recover Parameter IPower-1* IPower-2* IPower-4* Output is OFF Ui>16V Ui>32V Ui>64V Green indicator fast flashing Over voltage Input Voltage Buzzer sounds protection and recover Green indicator on solid Ui≤14.5V Ui≤29V Ui≤58V The output is on Output is OFF Ui<10.8V Ui<21.6V...
Page 15
Output is OFF after 15min ① S=1.2P Red indicator slowly flashing Buzzer sounds ② Output is OFF after 30s ① S=1.5P Red indicator slowly flashing Overload Output power S Buzzer sounds protection Rated power P Output is OFF after 10s and recover ①...
7. Troubleshooting Faults Possible reasons Troubleshooting Measure the DC input voltage, if the voltage is lower Green indicator slowly flashing DC input under voltage than 10.8/21.6/43.2V. Adjust the input voltage to Buzzer sounds restore normally. Measure the DC input voltage, if the voltage is Green indicator fast flashing DC input over voltage higher than 16/32...
8. Maintenance The following inspections and maintenance tasks are recommended at least two times per year for best performance. Make sure no block on air-flow around the inverter. Clear up any dirt and fragments on radiator. Check all the naked wires to make sure insulation is not damaged for serious solarization.
10. Technical Specification Item IP350-12 IP350-22 IP350-11 IP350-21 Rated Input Voltage 12VDC 24VDC 12VDC 24VDC Input Voltage Range 10.8~16VDC 21.6~32VDC 10.8~16VDC 21.6~32VDC <32VDC <44VDC <32VDC <44VDC Input surge voltage 220VAC(± 5%) 110VAC(± 5%) Output Voltage 230VAC(-7%~+5%) 120VAC(-10%~+5%) Output Frequency 50/60± 0.1Hz...
Page 19
Item IP500-12 IP500-22 IP500-11 IP500-21 Rated Input Voltage 12VDC 24VDC 12VDC 24VDC Input Voltage Range 10.8~16VDC 21.6~32VDC 10.8~16VDC 21.6~32VDC <32VDC <44VDC <32VDC <44VDC Input surge voltage 220VAC(± 5%) 110VAC(± 5%) Output Voltage 230VAC(-10%~+5%) 120VAC(-10%~+5%) Output Frequency 50/60± 0.1Hz Output Continuous 400W Power Output Power 15 min.
Page 20
Item IP1000-12 IP1000-22 IP1000-11 IP1000-21 Rated Input Voltage 12VDC 24VDC 12VDC 24VDC Input Voltage Range 10.8~16VDC 21.6~32VDC 10.8~16VDC 21.6~32VDC <20VDC <40VDC <20VDC <44VDC Input Surge Voltage Output Voltage 220VAC/230VAC (± 5%) 110VAC/120VAC(± 3%) Output Frequency 50/60± 0.1Hz Output Continuous 800W Power Output Power 15 min.
Page 21
IP1500-12 IP1500-22 IP1500-11 IP1500-21 Item Rated Input Voltage 12VDC 24VDC 12VDC 24VDC Input Voltage Range 10.8~16VDC 21.6~32VDC 10.8~16VDC 21.6~32VDC <20VDC <40VDC <20VDC <40VDC Input Surge Voltage 220VAC(± 5%) 110VAC(± 3%) Output Voltage 230VAC(-7%~+5%) 120VAC(-7%~+3%) 50/60± 0.1Hz Output Frequency Output Continuous 1200W Power Output Power 15 min.
Page 22
IP2000-22 IP2000-42 IP2000-21 IP2000-41 Rated Input Voltage 24VDC 48VDC 24VDC 48VDC Input Voltage Range 21.6~32VDC 43.2~60VDC 21.6~32VDC 43.2~60VDC <40VDC <80VDC <40VDC <80VDC Input Surge Voltage 220VAC(± 5%) 110VAC(± 5%) Output Voltage 230VAC(-10%~+5%) 120VAC(-10%~+5%) Output Frequency 50/60± 0.1Hz Output Continuous 1600W Power Output Power 15 min.
Page 23
Environmental Parameters Working Temperature -20℃~+45℃ Storage Temperature -35℃~ +70℃ Humidity < 95%(N.C.) Enclosure IP20 < 5000 m (Derating to operate according to Altitude IEC62040 at a height exceeding 1000 m) Others Between DC input terminals and metal case: Test voltage AC500V, 1 minute Dielectric Strength Between AC output terminals and metal case: Test voltage AC1500V, 1 minute...
