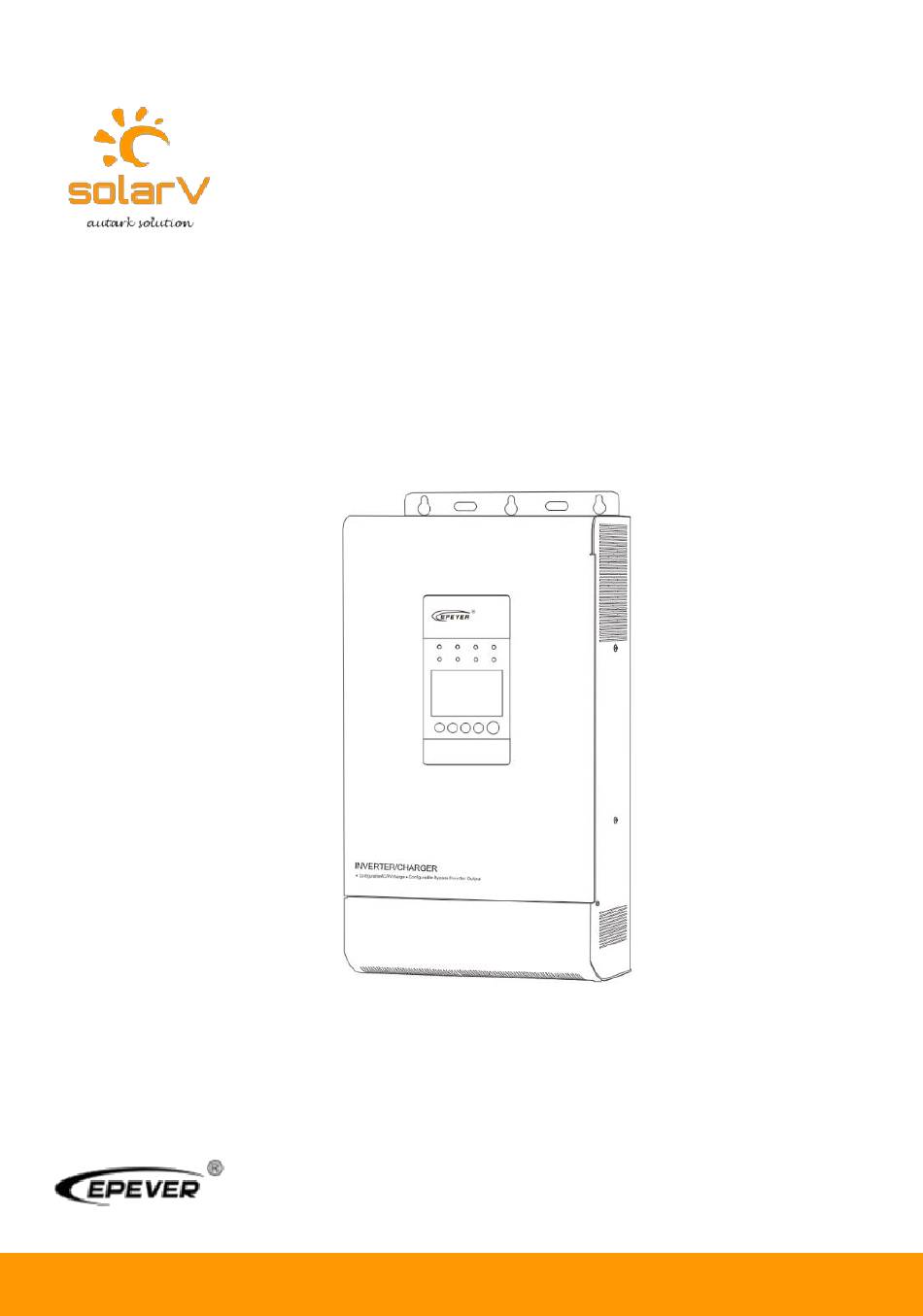

- Page 1 User Manual UPOWER SERIE – REINER SINUS INVERTER/Charger Modelle UP1000-M3212/ M3222 UP1500-M3222 UP2000-M3322 UP3000-M3322/M6322 UP3000-M2142/M6142 UP5000-M6342/M8342...
- Page 2 Important Safety Instructions Please reserve this manual for future review. Please reserve this manual for future review. This manual contains all instructions about safety, installation and operation for the inverter/charger. ➢ Read carefully all the instructions and warnings in the manual before installation. ➢...
-
Page 3: Table Of Contents
CONTENTS 1. General Information ..................1 1.1 Overview ................... 1 1.2 Characteristics .................. 3 1.3 Designations of models ..............4 1.4 Schematic Diagram for Connections ..........4 2. Installation Instructions ................5 2.1 General Installation Notes ..............5 2.2 Wire Size& breaker ................5 2.3 Mounting .................. -
Page 4: General Information
1. General Information 1.1 Overview UPower inverter/charger combines with solar & utility charging and AC output in one unit, which adopts a multi-core processor design and advanced MPPT control algorithm to realize intelligent management. The device is usally used in remote area where is lack of reliable utility but rich of sun shine. - Page 5 to 95 %①and full load efficiency of 93 % max① High output voltage stability: when full load working in the working voltage range of battery, output voltage 220V/230V±5%②, frequency 50/60±0.1 Hz; voltage& frequency optional Advanced voltage, current and power multi-loop control makes DC-AC unit has ...
-
Page 6: Characteristics

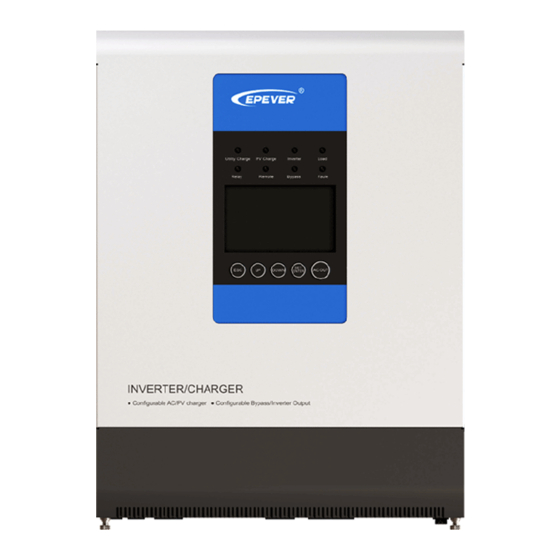

1.2 Characteristics Figure 1 Product appearance ❶ ❼ Ventilation Relay interface ❷ ❽ M4 Screw (2 pcs) Remote interface ❸ ❾ AC output terminals RS485 interface(5VDC/200mA) ❹ ❿ Utility input terminals Inverter/charger switch ❺ ⓫ Battery input terminals PV input terminals ❻... -
Page 7: Designations Of Models
• RS485 Interface RJ45 interface pin define is shown below： Pins Define Pins Define 5VDC RS-485-A 5VDC RS-485-A RS-485-B RS-485-B 1.3 Designations of models 1.4 Schematic Diagram for Connections NOTE：❶Utility power supply and ❷Battery power supply can not be carried out simultaneously. Warning：Confirm the AC load power compatible with the power of the inverter/charger, AC load selected exceeding the maximum output power of inverter/charger is prohibited. -
Page 8: Installation Instructions
2. Installation Instructions 2.1 General Installation Notes • Please read the entire installation instructions to get familiar with the installation steps before installation. • Be very careful when installing the batteries, especially flooded lead-acid battery. Please wear eye protection, and have fresh water available to wash and clean if any contact with battery acid. - Page 9 UP1500-M3222 10mm /8AWG 2P—63A UP2000-M3322 10mm /8AWG 2P—63A UP3000-M3322 10mm /8AWG 2P—63A UP3000-M6322 16mm /5AWG 2P—100A UP3000-M2142 /10AWG 2P—32A UP3000-M6142 16mm /5AWG 2P—100A UP5000-M6342 16mm /5AWG 2P—100A UP5000-M8342 25mm /4AWG 2P—125A UP5000-M10342 25mm /4AWG 2P—125A NOTE: When the PV modules connect in series, the open circuit voltage of the PV array must not exceed max.
-
Page 10: Mounting
➢ Recommended wire and circuit breaker for AC output Model AC wire size Breaker UP1000-M3212 2.5mm /14AWG 2P—10A UP1000-M3222 2.5mm /14AWG 2P—10A 2.5mm /14AWG UP1500-M3222 2P—10A UP2000-M3322 2.5mm /14AWG 2P—16A UP3000-M3322 /12AWG 2P—25A UP3000-M6322 /12AWG 2P—25A UP3000-M2142 /12AWG 2P—25A UP3000-M6142 /12AWG 2P—25A UP5000-M6342... - Page 11 Installation steps： Step1：Determination of Installation Location and Heat-dissipation Space Determination of installation location: The inverter/charger shall be installed in a place with sufficient air flow through the dissipation pad of the inverter/charger and a minimum clearance of 150 mm from the upper and lower edges of the inverter/charger to ensure natural thermal convection.
- Page 12 Connect the remote temperature sensor cable (model: RTS300R47K3.81A) Connect the accessories, monitor the system status and set the parameters via PC software or APP software. PC software www.epever.com Inverter Monitor(UP) Mobile APP software (Android) www.epever.com——UPower www.solarv.de Copyright © 2021 SolarV GmbH All rights reserved...
-
Page 13: Interface Instruction
Step 6：Recheck if the wire connection is correct Step 7：Power on the inverter/charger: ①Turn on the circuit breaker at the battery end. ②Switch on the switch then the inverter indicator is on. ③Turn on the breaker of PV array and Utility. ④Turn on the AC load when the AC output is normal. -
Page 14: Buttons
Relay turn off Green On Solid Relay turn on Input voltage(3.3～12VDC) Green No Input voltage On Solid Inverter output Green Slowly Flashing(0.5Hz) Utility output Device normal On Solid Device fault 3.2 Buttons Operation Instruction Exit the current interface Press the button Clear the faults Press the... - Page 15 No Utility connecting Utility No PV connecting PV connecting but no input connecting but no input Load ON Load OFF Load power 8～25% Load power 25～50% Load power 50～75% Load power 75～100% Item Setting Content Solar priority Utility priority ① INPUT Utility &...
- Page 16 Utility charge energy ⑥ Battery Type USER Float ⑦ Battery charging stage Boost Equalize(28 each month) ① INPUT ★Solar priority(Default) The battery is charged in solar priority mode and when the battery voltage is lower than “Auxiliary Module ON Voltage(V AON )”, the utility starts charging. When the battery voltage reaches to “Auxiliary Module OFF Voltage(V AOF )”, the utility stops ＜V ＞V...
-
Page 17: Setting Interface
★Utility(Default) 3.4 Setting interface Common interface for common user Operation: Step1: Press the button and hold on 2s at the real-time interface to go to the common interface. Step2: Press the button and hold on 2s at the setting parameter interface and choose the parameters. - Page 18 ℃ ℃/℉ Temperature unit 30S/60S/100S(Always on) Backlight time Buzzer alarm switch ON/ OFF ★ User 10.5～11.3V ★ Low voltage disconnect voltage 10.8V ★ step size 0.1V ★ User 12.0～13.0V ★ Low voltage reconnect voltage 12.5V ★ step size 0.1V ★The voltage parameter are at 25℃, 12V system, and twice in 24V system, quadruple in 48V system.
-
Page 19: Other Function
Clear fault ON/OFF Clear the accumulated energy ON/OFF 100～4000AH Total battery capacity 600AH Step size 100AH — Software version U-1.0 ★The voltage parameter are at 25℃, 12V system, and twice in 24V system, quadruple in 48V system. The following rules must be observed when modifying the parameter values in User for lead-acid battery. - Page 20 When Switch 1 is in "ON", the output voltage is selected as 230VAC, and on the contrary as 220VAC; When Switch 2 is in "ON", the output frequency is selected as 60Hz, and on the contrary as 50Hz. NOTE：If the output frequency or voltage of the inverter/charger is to be reset, it is required to turn off the inverter/charger and power on the unit after setting.
-
Page 21: Protection
4. Protection Protection Instruction When the charging current of the PV array exceeds its rated current, it will be charged at the rated current. PV limit Current NOTE: When the PV modules are in series, ensure that the open-circuit voltage of the PV array does not exceed the "maximum PV open-circuit voltage". -
Page 22: Troubleshooting
5. Troubleshooting 5.1 Fault battery Fault frame Module Code Fault indicator Buzzer indicator blink — — Battery low voltage Battery over voltage Battery over discharge — Battery Flashing Nominal voltage error Low temperature over temperature (PV PV charge charge module) charging Fast Communication Fault... -
Page 23: Maintenance
6. Maintenance The following inspections and maintenance tasks are recommended at least 1） two times per year for best performance. Make sure inverter/charger firmly installed in a clean and dry ambient. Make sure no block on air-flow around the inverter/charger. Clear up any dirt and fragments on radiator. -
Page 24: Technical Specifications
7. Technical Specifications Item UP1000-M3212 UP1000-M3222 UP1500-M3222 UP2000-M3322 UP3000-M3322 UP3000-M6322 Nominal battery voltage 12VDC 24VDC Battery input voltage range 10.8～16VDC 21.6～32VDC Inverter output Continuous output power 800W 800W 1200W 1600W 2400W 2400W Output power (15min.) 1000W 1000W 1500W 2000W 3000W 3000W Overload power(5s) 1600W... - Page 25 Tracking efficiency ≤99.5% Charging conversion ≤98% efficiency Temperature -3mV/℃/2V (Default) compensate coefficient Others No load consumption ≤1.2A ≤0.6A ≤0.6A ≤0.8A ≤0.8A ≤0.8A Enclosure IP30 Relative humidity < 95% (N.C.) Working environment -20℃～50℃（full input and output with no derating） temperature ＜5000m (Derating to operate according to IEC62040 at a height exceeding 1000m) Altitude Mechanical Parameters Dimension(H x W x L)
- Page 26 Transfer time 20mS（resistive load） Utility charging 160VAC～280VAC(Working voltage range) Utility input voltage range 170VAC～270VAC(Utility starting voltage range) Max. utility charge current Solar charging ★ ★ 150V 200V Max. PV open circuit ◆ ◆ 138V 180V voltage Max. PV input power 1040W 3000W 3000W...
- Page 27 www.solarv.de...
