- Page 1 Pure Sine Wave Inverter User Manual IP350-12/22/11/21 IP500-12/22/11/21 IP1000-12/22/11/21 IP1500-12/22/11/21 IP2000-22/42/21/41...
-
Page 3: Table Of Contents
CONTENTS 1. Important Safety Instructions 2. Introduction 3. Designations of models 4. Wiring 5. Functions 6. Protection 7. Troubleshooting 8. Maintenance 9. Disclaimer 10. Technical Specification... -
Page 4: Important Safety Instructions
1. Important Safety Instructions As an AC power supply equipment, the inverter's AC output is the same as the household power plug. The inverter's AC output should be treated with caution; otherwise, there will be a risk of electric shock! When using, please note the following: Attentions: ... - Page 5 It's an off-grid inverter. Do not connect the AC output terminals to the grid or electrical source. Otherwise, the inverter may be damaged. This inverter can only be used singly in parallel connections. The series connection will damage the inverters. ...
-
Page 6: Introduction

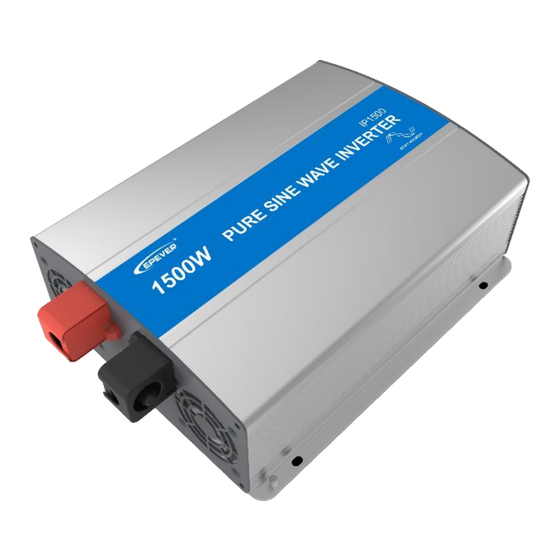

2. Introduction IPower series is a pure sine wave inverter that can convert 12/24/48VDC to 220/230VAC (or 110/120VAC). Industrial design has a wide operating temperature, high reliability, and high efficiency compared with civil design. Simple appearance and lightweight make it easy to install and operate. -
Page 7: Designations Of Models
3. Designations of models Output Power Output Voltage Model Input Rated Voltage 15 min. IP350-12 12VDC 350W IP350-22 24VDC 350W IP500-12 12VDC 500W IP500-22 24VDC 500W IP1000-12 12VDC 1000W 220/230VAC IP1000-22 24VDC 1000W IP1500-12 12VDC 1500W IP1500-22 24VDC 1500W IP2000-22... -
Page 8: Wiring
4. Wiring (1) 12/24/48Vsystem DC input (2) 220/230V AC (or 110/120V) output Operation Steps: Step 1: Turn the power switch of the inverter to OFF. Step 2: Disconnect the input breaker or the fuse between the inverter and battery. Connect the battery terminals ('+' with the red line and '-' with the black line). - Page 9 Step 3: Use the cable no less than 4mm to connect the inverter's grounding terminal to the ground. Step 4: Connect the plug of the AC load to the inverter AC outlet. Step 5: Switch on the input breaker or the fuse between the inverter and battery; turn on the power switch to start the inverter.
-
Page 10: Functions
5. Functions DC Input Panel AC Output Panel ❶ ❼ DC Input Terminal Positive RS485 communication port ❷ ❽ DC input voltage range USB output port (5VDC/1A) ❸ ❾ DC Input Terminal Negative AC output switch ❹ ❿ Ventilation Fan Mode switch ❺... - Page 11 24V system input voltage range is 21.6~32V； 48V system input voltage range is 43.2~60V。 (2) Fan Ventilation When the heat sink temperature is higher than 50℃ or the internal temperature is higher than 50℃, the fan will turn on automatically. When the heat sink temperature is lower than 40℃...
- Page 12 European Terminal(IP1000 and above models） (4) RS485 communication port(IP1000 and above models optional) The RJ45 interface pin definition: Pins Define 5VDC RS485-B RS485-A (5) Mode Switch When switch No.1 is on the ON side, the output frequency is 60Hz. Otherwise, it is 50Hz.
- Page 13 Otherwise, it is 220VAC (110VAC). NOTE: Turn off the inverter to reset the output frequency or voltage. Then, restart the inverter when the setting is complete. WARNING: DO NOT turn ON/OFF the mode switch when the inverter is working. (6) LED indicator and Buzzer Working indicator Fault indicator Buzzer...
-
Page 14: Protection
6. Protection Condition Protection Phenomenon and recover Parameter IPower-1* IPower-2* IPower-4* Output is OFF Green indicator fast Ui>16V Ui>32V Ui>64V flashing Overvoltage Input Voltage Buzzer sounds protection and recover Green indicator on Ui≤14.5V Ui≤29V Ui≤58V solid The output is on Output is OFF Green indicator slowly Ui<10.8V... - Page 15 The output is OFF after 10s ① Red indicator slowly S=1.8P flashing Buzzer sounds The output is OFF after 5s ① Red indicator slowly S>2P (Rated input voltage) flashing Buzzer sounds The output is OFF immediately ① Load short circuit protection Red indicator fast flashing Buzzer sounds...
-
Page 16: Troubleshooting
7. Troubleshooting Possible Faults Troubleshooting reasons Measure the DC input voltage if the Green indicator slowly DC input voltage is lower than 10.8/21.6/43.2V. flashing under-voltage Adjust the input voltage to restore Buzzer sounds normally. Green indicator fast Measure the DC input voltage if the DC input flashing voltage is higher than 16/32/64V. -
Page 17: Maintenance
8. Maintenance The following inspections and maintenance tasks are recommended at least two times per year for good performance. Make sure no block on airflow around the inverter. Clear up any dirt and fragments on the heat sink. Check all the naked wires to ensure insulation is not damaged by sun exposure, frictional wear, dryness, insects or rats, etc. -
Page 18: Disclaimer
9. Disclaimer The warranty does not apply to the following conditions: Damage is caused by improper use or an inappropriate environment (humid, salt spray, corrosion, greasy, flammable, explosive, dust accumulative, or other severe environments). The actual current/voltage/power exceeds the limit value of the inverter. ... -
Page 19: Technical Specification
10. Technical Specification Item IP350-11 IP350-12 IP350-21 IP350-22 Rated Input Voltage 12VDC 24VDC 24VDC 10.8～16VDC 21.6～32VDC 21.6～32VDC Input Voltage Range ＜32VDC ＜44VDC ＜44VDC Input surge voltage 110VAC (± 5%) 220VAC (± 5%) 110VAC (± 5%) 220VAC (± 5%) Output Voltage... - Page 20 Surge power 1000W Power factor 0.2-1(VA lower than output continuous power) Output Wave Pure sine wave ① ① ① ① THD≤5% THD≤3% THD≤5% THD≤3% Distortion THD Max. Efficiency ＜0.9A ＜0.5A No-load current ② USB Output Port 5VDC/Max.1A Φ6mm Binding post Dimension 232.2×132×74.5mm Mounting size...
- Page 21 ② Conventional products don't have this port, the port is optional. Item IP1500-11 IP1500-12 IP1500-21 IP1500-22 Rated Input Voltage 12VDC 24VDC 10.8～16VDC 21.6～32VDC Input Voltage Range ＜20VDC ＜40VDC Input Surge Voltage 110VAC (± 3%) 220VAC (± 5%) 110VAC (± 3%) 220VAC (±...
- Page 22 surge Power 3200W Power factor 0.2-1(VA lower than output continuous power) Output Wave Pure sine wave ① ① ① ① THD≤5% THD≤3% THD≤5% THD≤3% Distortion THD Max. Efficiency ＜0.6A ＜0.4A No-load Current ② USB Output Port 5VDC/Max.1A ② RS485 Com. Port 5VDC/200mA Φ6mm Binding Post...
- Page 24 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Tel: +86-752-3889706 E-mail: info@epever.com Website: www.epever.com...
