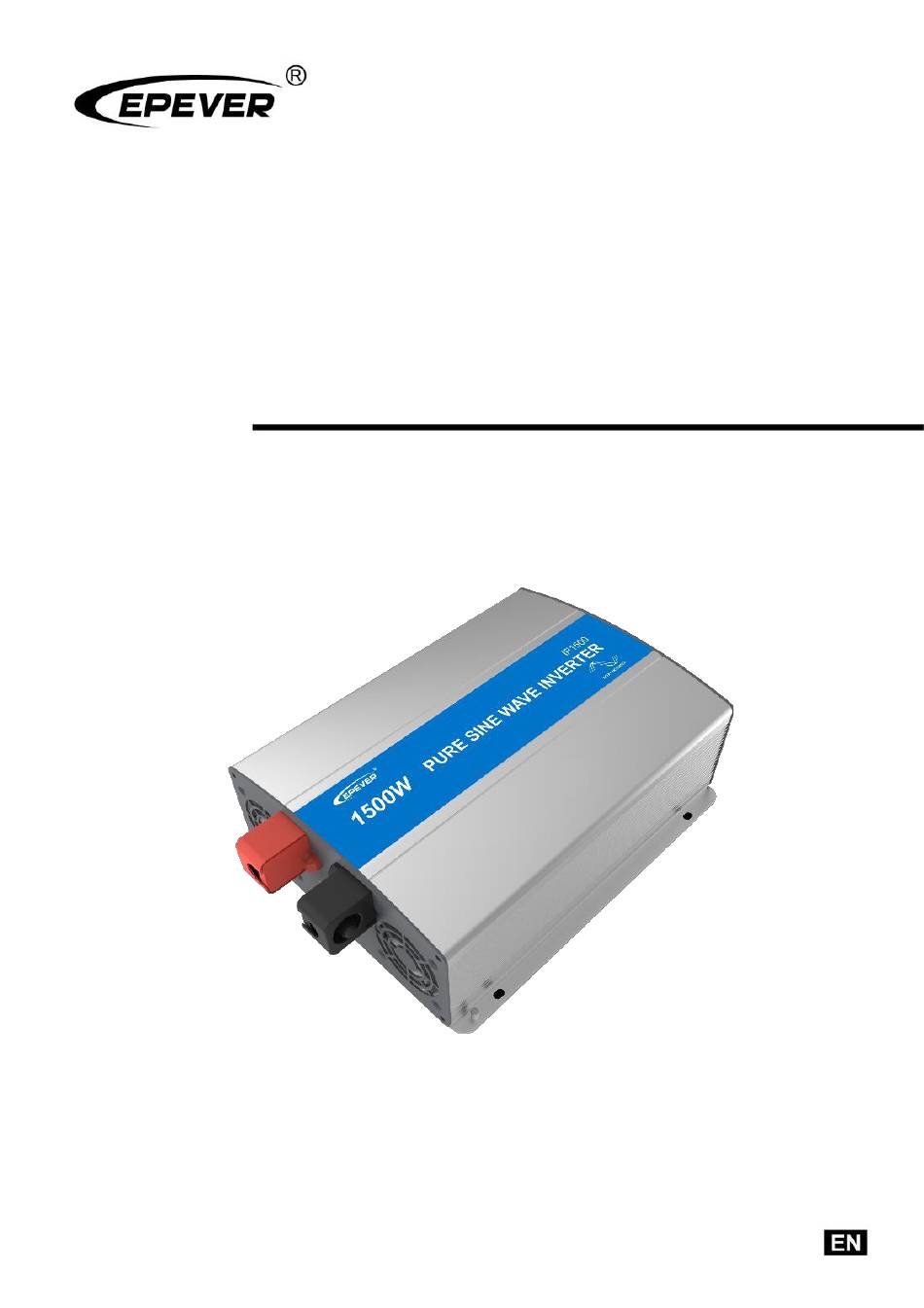

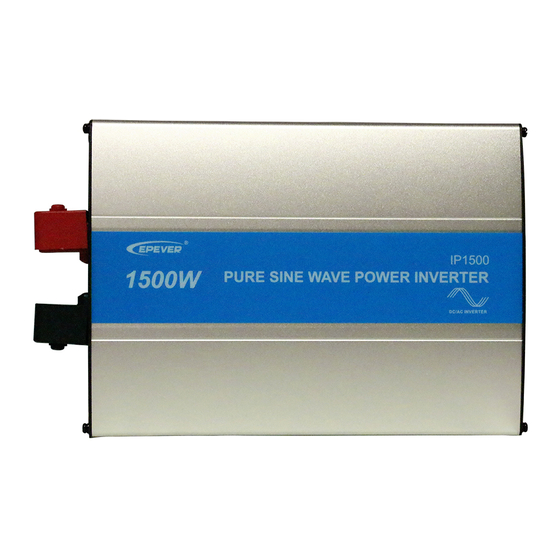

- Page 1 Pure Sine Wave Inverter User Manual IP350-12/22/11/21 IP500-12/22/11/21 IP1000-12/22/11/21 IP1500-12/22/11/21 IP2000-22/42/21/41...
-
Page 3: Table Of Contents
CONTENTS 1. Important Safety Instructions ..........1 2. Introduction ................3 3. Designations of models ............4 4. Wiring ................... 5 5. Functions ................7 6. Protection ................11 7. Troubleshooting ..............13 8. Maintenance ................. 14 9. Disclaimer ................15 10. -
Page 4: Important Safety Instructions
1. Important Safety Instructions As an AC power supply equipment, the inverter's output voltage is at the same level as that of the household power plug. Mind the AC output terminals, or you may get an electric shock and result in life danger! Attentions: ... - Page 5 It's an off-grid inverter. Do not connect the AC output terminals to the grid or electrical source; otherwise, the inverter may be damaged. This inverter can only be used singly in parallel connections. The series connection will damage the inverters. ...
-
Page 6: Introduction
2. Introduction IPower series is a kind of pure sine wave inverter that can convert 12/24/48VDC to 220/230VAC(or 110/120VAC). Compared with civil design, industrial design has a wide operating temperature, high reliability, and high efficiency. Simple appearance and lightweight make it easy to install and operate. The wide input voltage range is ideal for solar system applications. -
Page 7: Designations Of Models
3. Designations of models Input Rated Output Power Model Output Voltage Voltage 15 min. IP350-12 12VDC 220/230VAC 350W IP350-22 24VDC 220/230VAC 350W IP500-12 12VDC 220/230VAC 500W IP500-22 24VDC 220/230VAC 500W IP1000-12 12VDC 220/230VAC 1000W IP1000-22 24VDC 220/230VAC 1000W IP1500-12 12VDC... -
Page 8: Wiring
4. Wiring (1)12/24/48Vsystem DC input (2) 220/230V AC(or 110/120V) output Operation Steps: Step 1: Turn the power switch of the inverter to OFF Step 2: Disconnect the input breaker or the fuse between the inverter and battery, connect the battery terminals ('+' with the red line and '-' with the black line). Do not connect the poles by contraries. - Page 9 Step 3: Use the cable no less than 4mm to connect the inverter's grounding terminal to the ground. Step 4: Connect the plug of AC load to the inverter AC outlet Step 5: Switch on the input breaker or the fuse between the inverter and battery; turn on the power switch to start the inverter.
-
Page 10: Functions
5. Functions DC Input Panel AC Output Panel ❶ ❼ DC Input Terminal Positive RS485 communication port ❷ ❽ DC input voltage range USB output port (5VDC/1A) ❸ ❾ DC Input Terminal Negative AC output switch ❹ ❿ Ventilation Fan Mode switch ❺... - Page 11 24V system input voltage range is 21.6~32V； 48V system input voltage range is 43.2~60V。 (2) Fan Ventilation When the heat sink temperature is higher than 50℃ or the internal temperature is higher than 50℃, the fan will turn on automatically. When the heat sink temperature is lower than 40℃...
- Page 12 European Terminal(IP1000 and above models） (4) RS485 communication port(IP1000 and above models optional) The RJ45 interface pin definition is shown below: Pins Define 5VDC RS485-B RS485-A (5) Mode Switch When switch No.1 is on the ON side, the output frequency is 60Hz. Otherwise, it is 50Hz.
- Page 13 Otherwise, it is 220VAC(110VAC). NOTE: Both the output frequency and the output voltage change availability after restarting the inverter. WARNING: DO NOT turn ON/OFF the mode switch when the inverter is working. (6) LED indicator and Buzzer Working indicator Fault indicator Buzzer Status Green On Solid...
-
Page 14: Protection
6. Protection Condition Protection Phenomenon and recover Parameter IPower-1* IPower-2* IPower-4* Output is OFF Green indicator fast Ui>16V Ui>32V Ui>64V flashing Overvoltage Input Voltage Buzzer sounds protection and recover Green indicator on Ui≤14.5V Ui≤29V Ui≤58V solid The output is on Output is OFF Green indicator slowly Ui<10.8V... - Page 15 Red indicator slowly flashing Buzzer sounds The output is OFF after 5s ① S>2P (Rated input voltage) Red indicator slowly flashing Buzzer sounds The output is OFF immediately ① Load short circuit protection Red indicator fast flashing Buzzer sounds ① When output overload protection or load short circuit protection is activated, the AC output would auto-recovery three times (the first time delays for 5s, the second time delays for 10s, and the third time delays for 15s).
-
Page 16: Troubleshooting
7. Troubleshooting Possible Faults Troubleshooting reasons Measure the DC input voltage if the Green indicator slowly DC input voltage is lower than 10.8/21.6/43.2V. flashing under-voltage Adjust the input voltage to restore Buzzer sounds normally. Green indicator fast Measure the DC input voltage if the DC input flashing voltage is higher than 16/32/64V. -
Page 17: Maintenance
8. Maintenance The following inspections and maintenance tasks are recommended at least two times per year for best performance. Make sure no block on air-flow around the inverter. Clear up any dirt and fragments on the radiator. Check all the naked wires to make sure insulation is not damaged for serious solarization. -
Page 18: Disclaimer
9. Disclaimer The warranty does not apply under the following conditions: Damage caused by improper use or use in an inappropriate environment Battery voltage exceeds the input voltage limit of the inverter Damage caused by working environment temperature exceeds the rated range ... -
Page 19: Technical Specification
10. Technical Specification Item IP350-11 IP350-12 IP350-21 IP350-22 Rated Input Voltage 12VDC 24VDC 24VDC 10.8～16VDC 21.6～32VDC 21.6～32VDC Input Voltage Range ＜32VDC ＜44VDC ＜44VDC Input surge voltage 110VAC(±5%) 220VAC(±5%) 110VAC(±5%) 220VAC(±5%) Output Voltage 120VAC(-10%~ 230VAC(-7%~+ 120VAC(-10%~ 230VAC(-7%~+ +5%) +5%) Output Frequency 50/60±0.1Hz... - Page 20 Output Continuous 400W Power Output Power 15 min. 500W Surge power 1000W Power factor 0.2-1(VA lower than output continuous power) Output Wave Pure sine wave ① ① ① ① THD≤5% THD≤3% THD≤5% THD≤3% Distortion THD Max. Efficiency ＜0.9A ＜0.5A No-load current ②...
- Page 21 Φ6mm Binding Post Overall Dimension 298.3×231.5×98.5mm 284.7×231.5×98.5mm Mounting Dimension 183×220mm 163×219.5mm Φ5.5mm Mounting Hole Size Net Weight 3.9kg 3.6kg ① Test condition: Rated Input Voltage, Output Continuous Power, Resistive load. ② Conventional products don't have this port; the port is optional. Item IP1500-11 IP1500-12...
- Page 22 Input Voltage Range 21.6～32VDC 43.2～60VDC ＜40VDC ＜80VDC Input Surge Voltage 110VAC(±5%) 220VAC(±5%) 110VAC(±5%) 220VAC(±5%) Output Voltage 120VAC(-10%~ 230VAC(-10%~ 120VAC(-10%~ 230VAC(-10%~ +5%) +5%) +5%) +5%) Output Frequency 50/60±0.1Hz Output Continuous 1600W Power Output Power 15 min. 2000W surge Power 3200W Power factor 0.2-1(VA lower than output continuous power) Output Wave Pure sine wave...
- Page 23 Any changes without prior notice! Version number：V2.1...
