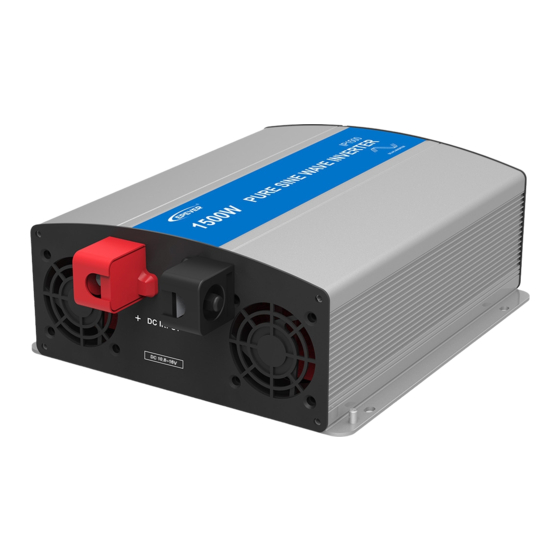

- Page 1 IPower Series ——Pure Sine Wave Inverter User’s Manual Model: IP1500-12 IP1500-22 IP2000-22 IP2000-42...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ............1 2. Important Safety Instructions ......2 3. Wiring ..............4 4. Functions .............. 6 5. Protection ............10 6. Troubleshooting ..........12 7. Maintenance and Warranty ....... 13 8. Technical Specification ........14... -
Page 4: Introduction
1. Introduction Thanks for purchasing IPower series inverters. The product is a pure sine wave inverter which can convert 12/24/48VDC to 220/230VAC, 50/60Hz based on full digital and intelligent design. It features high reliability, high efficiency, concise outline, small volume, full protection functions, easy installation and operation. -
Page 5: Important Safety Instructions
2. Important Safety Instructions As an AC power supply equipment, the inverter’s output voltage is with the same level as that of household power plug. Mind the AC output terminals, or you may get an electric shock and result in life danger! Attentions: ... - Page 6 The wire connects between battery and inverter should be shorter than 3m, the current density should be less than 3.5A/mm while the output of inverter is fully loaded. If the wire longer than 3m, the current density should be reduced. ...
-
Page 7: Wiring
3. Wiring (1)12/24/48Vsystem DC input (2) 220/230V AC output... - Page 8 Operation Steps: Step 1: Turn off the switch of inverter Step 2: Connect the battery (‘+’ terminal with red line, ‘-’with black line). Do not connect them by contraries, or the power inverter will be damaged. Step 3: Connect the protective grounding to the ground Step 4: Connect the AC load to the AC outlet Step 5: Switch on the fuse or breaker.
-
Page 9: Functions
4. Functions DC Input Panel AC Output Panel... - Page 10 ❶ ❼ DC Input Terminal Positive RS485 communication port ❷ ❽ DC input voltage range USB output port (5VDC/1A) ❸ ❾ DC Input Terminal Negative AC output switch ❹ ❿ Ventilation Fan Mode switch ❺ ➀ Fault indicator(red) Grounding Terminal ❻...
- Page 11 Australia/New Zealand European (4) RS485 communication port The RJ45 interface pin definition is shown below: Pins Define — RS-485-B RS-485-A —...
- Page 12 (5) Mode Switch When the switch No.1 is on the ON side, output frequency is 60Hz, otherwise is 50Hz. When the switch No.2 is on the ON side, the output voltage is 230VAC, otherwise is 220VAC. NOTE: Both the output frequency and the output voltage change availability after restart the inverter.
-
Page 13: Protection
5. Protection Condition Protection Phenomenon and recover Parameter IPower-12 IPower-22 IPower-42 Output is OFF Over voltage Ui>16V Ui>32V Ui>64V Green indicator fast flashing Input Voltage Buzzer sounds protection and recover Green indicator on solid Ui≤14.5V Ui≤29V Ui≤58V The output is on Output is OFF Low voltage Ui<10.8V... - Page 14 protection Rated power P Red indicator slowly flashing and recover Buzzer sounds Output is OFF after 1min ① S=1.5P Red indicator slowly flashing Buzzer sounds Output is OFF after 10s ① S=1.8P Red indicator slowly flashing Buzzer sounds Output is OFF after 5s ①...
-
Page 15: Troubleshooting
6. Troubleshooting Faults Possible reasons Troubleshooting Measure the DC input voltage, if the voltage is lower Green indicator slowly flashing DC input under voltage than 10.8/21.6/43.2V. Adjust the input voltage to Buzzer sounds restore normally. Measure the DC input voltage, if the voltage is Green indicator fast flashing DC input over voltage higher than 16/32... -
Page 16: Maintenance And Warranty
7. Maintenance and Warranty The casing of the inverters may be cleaned regularly with a damp cloth (not wet) to prevent accumulation of dust and dirt. The screws on the DC input terminals must be tightened. The warranty period of the inverter is two years since the date of original shipping. -
Page 17: Technical Specification
8. Technical Specification Technical Parameters Model IP1500-12 IP1500-22 Item Input Rated Voltage 12VDC 24VDC Input Voltage Range 10.8～16VDC 21.6～32VDC Input surge voltage ＜20VDC ＜40VDC No-load current ＜1.0A ＜0.6A 220VAC(± 5%) Output Voltage 230VAC(-7%～+5%) Output Continuous 1200W Power Output Power 15 min. 1500W Instantaneous impact 2400W... - Page 18 Model IP2000-22 IP2000-42 Item Input Rated Voltage 24VDC 48VDC Input Voltage Range 21.6～32VDC 43.2～60VDC Input surge voltage ＜40VDC ＜80VDC No-load current ＜0.6A ＜0.4A 220VAC(± 5%) Output Voltage 230VAC(-10%～+5%) Output Continuous 1600W Power Output Power 15 min. 2000W Instantaneous impact 3200W power Output way Single phase...
- Page 19 Environmental Parameters Working Temperature -20℃~+45℃ Storage Temperature -35℃~ +70℃ Humidity < 95%(N.C.) Enclosure IP20 < 5000 m (Derating to operate according to Altitude IEC62040 at a height exceeding 1000 m) Others Between DC input terminals and metal case: Test voltage AC1500V, 1 minute Dielectric Strength Between AC output terminals and metal case: Test voltage AC1500V, 1 minute...
