Epever IP500-Plus User Manual

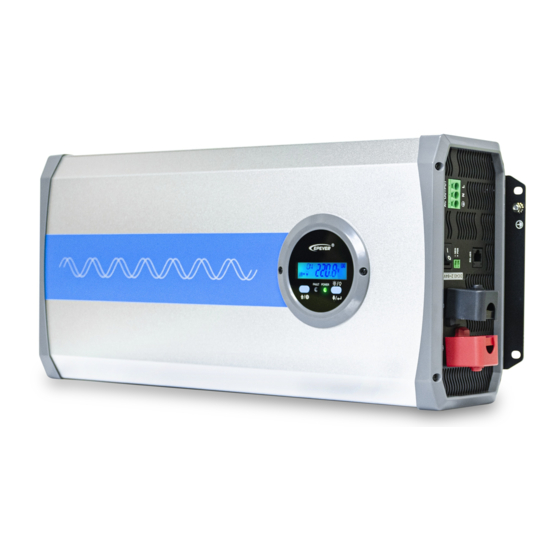

Pure sine wave inverter
Hide thumbs Also See for IP500-Plus:
Table of Contents

Advertisement

Quick Links

Download this manual

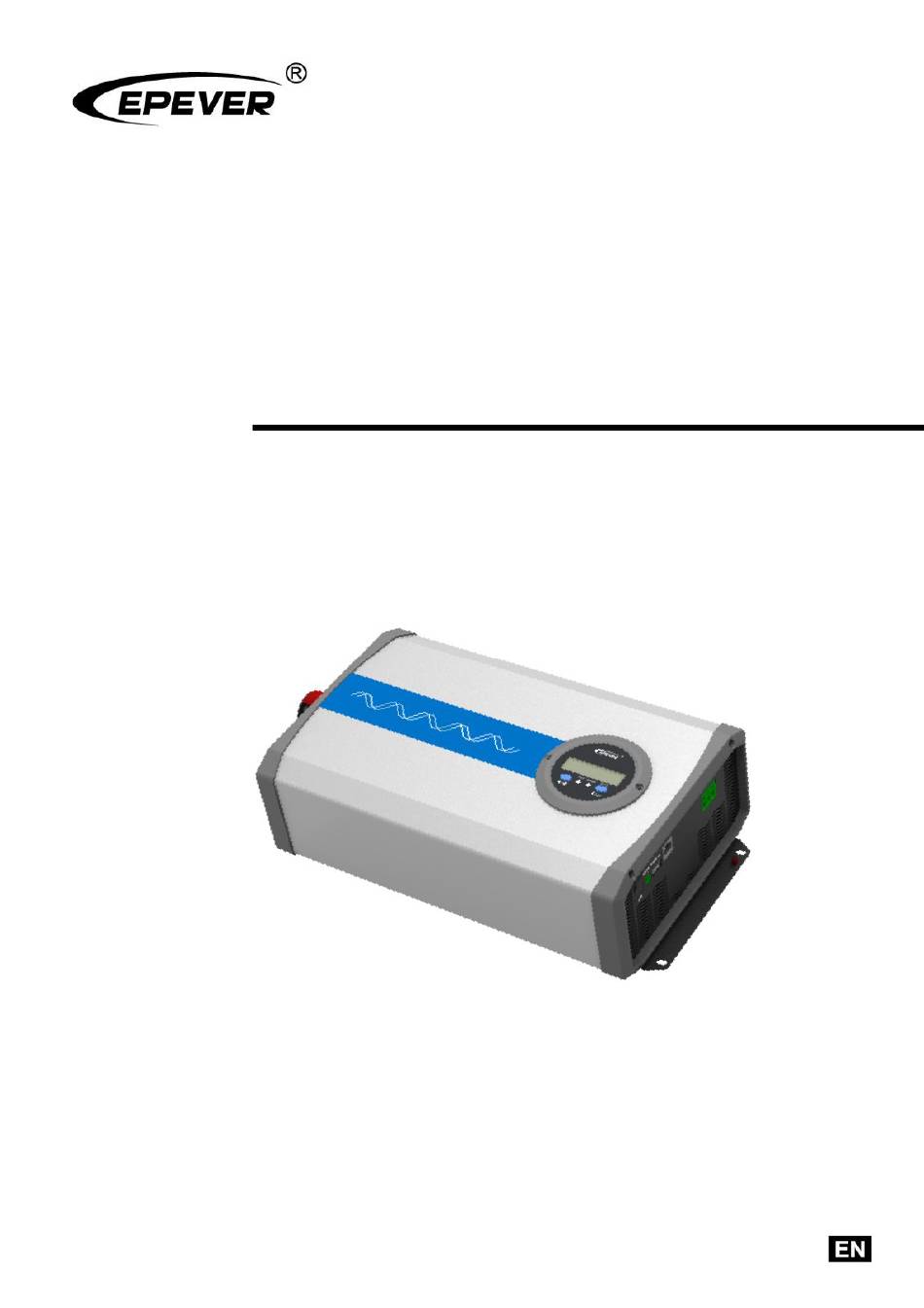

Pure sine wave inverter
USER MANUAL
Model
IP500-Plus
IP1000-Plus, IP1500-Plus
IP2000-Plus, IP3000-Plus
IP4000-Plus, IP5000-Plus
1

Advertisement

Table of Contents
loading

Related Manuals for Epever IP500-Plus

Summary of Contents for Epever IP500-Plus

  • Page 1 Pure sine wave inverter USER MANUAL Model IP500-Plus IP1000-Plus, IP1500-Plus IP2000-Plus, IP3000-Plus IP4000-Plus, IP5000-Plus...

  • Page 3: Table Of Contents

    Contents Important safety instructions ..................1 1 Overview ........................ 4 2 Appearance ......................6 3 Naming rule ......................11 4 Connection diagram ....................12 5 Remote meter ....................... 14 5.1 Appearance ......................... 14 5.2 Status display ........................14 5.3 Buttons ..........................15 5.4 LCD interface ........................

  • Page 5: Important Safety Instructions

    Important safety instructions Please reserve this manual for future review. This manual contains all safety, installation, and operation instructions for the IPower- Plus series high-frequency pure sine wave inverter ("inverter" referred to in this manual). 1. Explanation of symbols Please read related literature accompanying the following symbols to efficiently use the product and ensure personal and property safety.
  • Page 6  When installing the inverter, you must evaluate whether any arc danger exists in the operation area.  The inverter needs to be connected to a battery. The battery's minimum capacity (Ah) is recommended to be five times the current equals the inverter's rated output power divided by the battery voltage.
  • Page 7 8. Dangerous operations which would cause electric arc, fire or explosion  Touch the wire end that hasn't been insulation treated and maybe electriferous.  Touch the wiring copper row, terminals, or internal modules of the inverter that may be electriferous. ...

  • Page 8: Overview

    1 Overview IPower-Plus is a new generation of pure sine wave inverter compatible with the lithium battery system. This new inverter adopts surge current suppression technology to effectively prevent the surge current from damaging the lithium battery cells and BMS (Battery Management System). Also, adopting the voltage and current double closed-loop control algorithm brings the inverter a faster response and better resistance to the load impact.
  • Page 9  External switch contact design to allow remote control  IEC62109, EN61000, RoHS approved ① Configure the parameters via the local LCD meter, remote LCD meter, phone Apps, and PC software. ② This function is unavailable for inverters with 48V input voltage. ③...

  • Page 10: Appearance

    2 Appearance  IP500-xx-Plus  IP1000-xx-Plus  IP1500-xx/IP2000-2x/IP2000-4x/IP3000-42-Plus...
  • Page 11  IP2000-1x-Plus  IP3000-1x-Plus  IP3000-2x-Plus...
  • Page 12  IP3000-41/IP4000-4x/IP5000-4x-Plus ❶ ❻ DC input terminal positive RS485 communication port ❷ ❼ ③ USB output port 5VDC/Max.1A DC input terminal negative ❸ ❽ ① Cooling fan External switch port ❹ ❾ Inverter switch ❺ ❿ ② AC outlet Grounding terminal ①...
  • Page 13 IP2000-42-Plus(T) IP3000-11-Plus(T) IP3000-12-Plus(T) IP3000-21-Plus(T) IP3000-22-Plus(T) IP3000-41-Plus(T) IP3000-42-Plus(T) IP4000-41-Plus(T) IP4000-42-Plus(T) IP5000-42-Plus(T) Symbols of A/E/C/N/T mean different AC outlets: A-Australia/New Zealand, E-European, C-Chinese dual-socket, N-North America, and T-Terminal.  Conditions to stop the cooling fan: IP1000-11-Plus(T/N) Heat sink temperature is lower than 40℃ and IP1000-12-Plus(A/E/C/T) The internal inverter temperature is lower than 40℃...
  • Page 14 IP3000-42-Plus(T) IP4000-41-Plus(T) IP4000-42-Plus(T) IP5000-42-Plus(T) IP500-11-Plus(N) Heat sink temperature is lower than 40℃ and IP500-12-Plus(C) The internal inverter temperature is lower than 40℃ and IP500-21-Plus(N) The output power is lower than 150W IP500-22-Plus(C) Symbols of A/E/C/N/T mean different AC outlets: A-Australia/New Zealand, E-European, C-Chinese dual-socket, N-North America, and T-Terminal.

  • Page 15: Naming Rule

    3 Naming rule...

  • Page 16: Connection Diagram

    4 Connection diagram  IP500-xx-Plus  IP1000-xx/IP1500-xx/IP2000-2x/IP2000-4x/IP3000-42-Plus  IP2000-1x-Plus...
  • Page 17  IP3000-1x-Plus  IP3000-2x/IP3000-41/IP4000-4x/IP5000-4x-Plus It is recommended to connect the inverter DC input terminal to the battery terminal directly. DO NOT connect it to the charge source terminal. Otherwise, the charging CAUTION voltage spikes of the charge source may cause over-voltage protection of the inverter.

  • Page 18: Remote Meter

    5 Remote meter 5.1 Appearance ❶ ❹ Working status indicator(Blue) DOWN/Enter button ❷ ❺ UP/Setting button Output ON/OFF button ❸ ❻ Fault indicator(red) Fixing screws 5.2 Status display Working status indicator Fault indicator Buzzer Status Output voltage Blue ON solid Red OFF No beeps normal...

  • Page 19: Buttons

    5.3 Buttons Click Move up In the real-time interface, press it for 2s to enter the setting interface. Press for 2s In the setting interface, press it for 2s to enter the parameters configuration interface. Click Move down Press it to turn on/off the load output (default ON) in the Press for 2s real-time interface.

  • Page 20: Error Code

    Display Parameters Default User define 220VAC 220VAC/ 230Vac ① Output voltage class 110VAC 110VAC/ 120VAC Output frequency class 50Hz 50Hz/60Hz ① LCD backlight time 30s/ 60s/100s(ON solid) 12V: 10.8V 12V: 10.5V~14.2V; step size 0.1V Low voltage 24V: 21.6V 24V: 21V-30.2V; step size 0.1V ②...

  • Page 21: Installation

    6 Installation 6.1 Attentions  Read all the installation instructions carefully in the manual before installation.  Be very careful when installing the batteries. When installing the open-type lead-acid battery, please wear eye protection and rinse with clean water in time for battery acid contact. ...
  • Page 22 IP1500-11-Plus(T/N) 25mm /3AWG*2 RNB60-6 DC-100A(2P in parallel) IP1500-12-Plus(T) 25mm /3AWG*2 RNB60-6 DC-100A(2P in parallel) IP1500-21-Plus(T/N) 16mm /5AWG RNB14-6S DC/2P-125A IP1500-22-Plus(T) 16mm /5AWG RNB14-6S DC/2P-125A IP1500-41-Plus(T/N) 10mm /7AWG RNB14-6S DC/2P-63A IP1500-42-Plus(T) 10mm /7AWG RNB14-6S DC/2P-63A IP2000-11-Plus(T) 35mm /2AWG *2 RNB70-10 DC-125A(2P in parallel) IP2000-12-Plus(T) 35mm /2AWG *2...

  • Page 23: Mounting

    IP1500-21-Plus(T/N) 2.5mm /13AWG AC/2P-25A IP1500-22-Plus(T) 1.5mm /15AWG AC/2P-10A IP1500-41-Plus(T/N) 2.5mm /13AWG AC/2P-25A IP1500-42-Plus(T) 1.5mm /15AWG AC/2P-10A IP2000-11-Plus(T) /11AWG AC/2P-32A IP2000-12-Plus(T) 2.5mm /13AWG AC/2P-16A IP2000-21-Plus(T) 4mm2/11AWG AC/2P-32A IP2000-22-Plus(T) 2.5mm /13AWG AC/2P-16A IP2000-41-Plus(T) /11AWG AC/2P-32A IP2000-42-Plus(T) 2.5mm /13AWG AC/2P-16A IP3000-11-Plus(T) /10AWG AC/2P-50A IP3000-12-Plus(T) /11AWG AC/2P-25A...
  • Page 24  IP500-xx-Plus  IP1000-xx/IP1500-xx/IP2000-2x/IP2000-4x/IP3000-42-Plus  IP2000-1x-Plus  IP3000-1x-Plus  IP3000-2x/IP3000-41/IP4000-4x/IP5000-4x-Plus Step3: Wiring...
  • Page 25 The AC loads shall be determined by the continuous output power of the inverter. The AC load's surge power must be lower than the instantaneous surge power of the WARNING inverter, or the inverter will be damaged.  Set the inverter switch to OFF status before wiring. ...
  • Page 26  It is recommended to use a multi-stranded wire with a wire diameter of not more than 4mm  Add solder to the connection point when selecting the multi-stranded wire and directly insert it into the corresponding port.  Stop the inverter before removing the wiring. Then, insert a sharp tool into the small hole(on the top of the port) and pull out the wiring forcefully.
  • Page 27 5VDC RS-485-A RS-485-B RS-485-B 2) Connect optional accessories ❺ USB port (USB port is not available for inverters with 48V input voltage.) Step 4：Power on the inverter ⑴ Switch on the breaker at the inverter input terminal or the fuse at the battery end. ⑵...

  • Page 28: Rotate The Lcd

    ⑷ If the fault indicator flashes red and the buzzer alarms after powering the inverter, please immediately turn off the load and the inverter. Clear the faults according to Chapter 8 Troubleshooting. 6.4 Rotate the LCD ⑴ Remove the screws of the LCD unit with a screwdriver, and rotate it 180° . ⑵...

  • Page 29: Protections

    7 Protections 1) Input reverse polarity protection When the DC input terminal's polarity is reversed, the indicator will not light up after power on. The buzzer will not sound, and the inverter will not work. The inverter will start to work normally after correcting the error wiring.
  • Page 30 IP500-22-Plus indicator slowly IP1000-11-Plus flashes. IP1000-12-Plus LCD displays the IP1000-21-Plus The output is switched OFF IP1000-22-Plus after 30 seconds. IP1500-11-Plus S=1.5P Buzzer beeps. IP1500-12-Plus (S: Output power; P : Rated power) indicator slowly IP1500-21-Plus flashes. IP1500-22-Plus LCD displays the IP1500-41-Plus The output is switched OFF IP1500-42-Plus after 10 seconds.
  • Page 31 (S: Output power; P : Rated power) seconds. Buzzer beeps. The red indicator slowly flashes. LCD displays the The output is switched OFF after 1 minute. S=1.2P Buzzer beeps. (S: Output power; P : Rated power) The red indicator slowly flashes. LCD displays the The output is switched OFF after 10 seconds.

  • Page 32: Troubleshooting

    8 Troubleshooting A high voltage will occur inside the inverter. DO NOT try to repair or maintain the inverter by yourself; it may cause an electric shock. WARNING Faults Reasons Troubleshooting Check whether the DC input voltage is Blue indicator The DC input lower than10.8/21.6/43.2V...

  • Page 33: Maintenance

    9 Maintenance The following inspections and maintenance tasks are recommended at least two times per year for the best performance.  Make sure no block on airflow around the inverter. Clear up any dirt and fragments on the heat sink. ...

  • Page 34: Specifications

    10 Specifications The tags ① / ② in the specification tables are explained as follows. ① It is measured in the condition of continuous output power and rated input voltage. ② It means the max. output efficiency when the inverter is connected with different loads under the rated input voltage. Parameters IP500-11-Plus IP500-21-Plus...
  • Page 35 Dimension (L×W×H) 286×163.5×78mm 371×231.5×123mm Mounting size 262×75mm 345×145mm Φ5mm Φ6mm Mounting hole size Net Weight 2.3kg Parameters IP1500-11-Plus IP1500-21-Plus IP1500-41-Plus Continuous output power 1500W@35℃@Rated input voltage Surge power 3000W@5S ＜100A ＜100A ＜50A Surge current when power on Output voltage 110VAC(±3%); 120VAC(-7%~+3%) Output frequency 50/60Hz±0.2% Output wave...
  • Page 36 Φ6mm Mounting hole size Net Weight Parameters IP2000-11-Plus IP2000-21-Plus IP2000-41-Plus Continuous output power 2000W@35℃@ Rated input voltage Surge power 4000W@5S ＜100A ＜100A ＜50A Surge current when power on Output voltage 110VAC(±3%); 120VAC(-7%~+3%) Output frequency 50/60Hz±0.2% Output wave Pure Sine Wave THD≤5%(Resistive load) THD≤4%(Resistive load) THD≤4%(Resistive load)
  • Page 37 Parameters IP3000-11-Plus IP3000-21-Plus IP3000-41-Plus IP4000-41-Plus 4000W@35℃@Rated Continuous output power 3000W@35℃@Rated input voltage input voltage Surge power 4800W@5S 6000W@5S 6000W@5S 8000W@5S ＜100A ＜100A ＜65A ＜65A Surge current when power on Output voltage 110VAC(±3%); 120VAC(-7%~+3%) Output frequency 50/60Hz±0.2% Output wave Pure Sine Wave THD≤4%(Resistive load) THD≤5%(Resistive load) THD≤4%(Resistive load)
  • Page 38 Parameters IP500-12-Plus IP500-22-Plus IP1000-12-Plus IP1000-22-Plus Continuous output power 500W@35℃@Rated input voltage 1000W@35℃@Rated input voltage Surge power 1000W@5S 2000W@5S ＜50A ＜100A Surge current when power on Output voltage 220VAC(±3%); 230VAC(-7%~+3%) Output frequency 50/60Hz±0.2% Output wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(Load power ≤...
  • Page 39 Parameters IP1500-12-Plus IP1500-22-Plus IP1500-42-Plus Continuous output power 1500W@35℃@Rated input voltage Surge power 3000W@5S ＜100A ＜100A ＜50A Surge current when power on Output voltage 220VAC(±3%); 230VAC(-7%~+3%) Output frequency 50/60Hz±0.2% Output wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(Load power ≤ Continuous output power) Load power factor Rated input voltage 12VDC...
  • Page 40 Parameters IP2000-12-Plus IP2000-22-Plus IP2000-42-Plus Continuous output power 2000W@35℃@ Rated input voltage Surge power 4000W@5S ＜100A ＜100A ＜50A Surge current when power on Output voltage 220VAC(±3%); 230VAC(-7%~+3%) Output frequency 50/60Hz±0.2% Output wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(Load power ≤ Continuous output power) Load power factor Rated input voltage 12VDC...
  • Page 41 Parameters IP3000-12-Plus IP3000-22-Plus IP3000-42-Plus IP4000-42-Plus IP5000-42-Plus 4000W@35℃@Rate 5000W@35℃@Rate Continuous output power 3000W@35℃@Rated input voltage d input voltage d input voltage Surge power 6000W@5S 8000W@5S 8000W@5S Surge current when power ＜100A ＜100A ＜65A ＜65A ＜65A Output voltage 220VAC(±3%); 230VAC(-7%~+3%) Output frequency 50/60Hz±0.2% Output wave Pure Sine Wave...
  • Page 42 Environment parameters Environment temperature -20℃~+60℃(Refer to the Derating Curve) Storage temperature -35℃~ +70℃ Relative humidity < 95%(N.C.) Enclosure IP20 ＜5000m(If the altitude exceeds 1000 meters, the rated power will be reduced according to IEC62040.) Altitude...

  • Page 43: Appendix 1 Disclaimers

    Appendix 1 Disclaimers The warranty does not apply to the following conditions:  Damage is caused by improper use or an inappropriate environment.  Load current/voltage/power exceeds the limit value of the inverter.  Damage caused by working temperature exceeds the rated range. ...
  • Page 44 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Beijing Tel: +86-10-82894896/82894112 Huizhou Tel: +86-752-3889706 E-mail: info@epever.com Website: www.epever.com...

This manual is also suitable for:

Ip1000-plusIp1500-plusIp2000-plusIp3000-plusIp4000-plusIp5000-plus
