Calling Programs; Calling Scenes - EuroLite DMX Move Control 512 PRO User Manual

Calling Programs

9
CALLING PROGRAMS
The scenes and chases previously memorized can be called in manual mode. For chases you can choose whether they
should be played manually, time-controlled or sound-controlled.
It is possible to select multiple scenes and chases simultaneously. In the event that values contradict each other (for
example program A turns the spot to green and program B turns it to blue), the higher value receives the higher priority.
Regarding movement, the motion effects are more dominant than the position settings. If a chase with fixed positions and
a chase with motion effects are selected, the motion effects will be used. When running two chases with motion effects,
last called up will dominate the movement (button blinks).
Scenes behave differently. Again, the higher priority is given. However, the motion effects are inferior to the positions.
When dealing with two scenes, the spots would assume the programmed position of one scene and not the motion effect
of the other scene. If a scene and a chase are selected, the scene wins when it comes to movements or positions. This
makes it possible, for example, to call up a chase with motion effect on all moving heads and a scene with which only
one moving head moves to an illumination position.

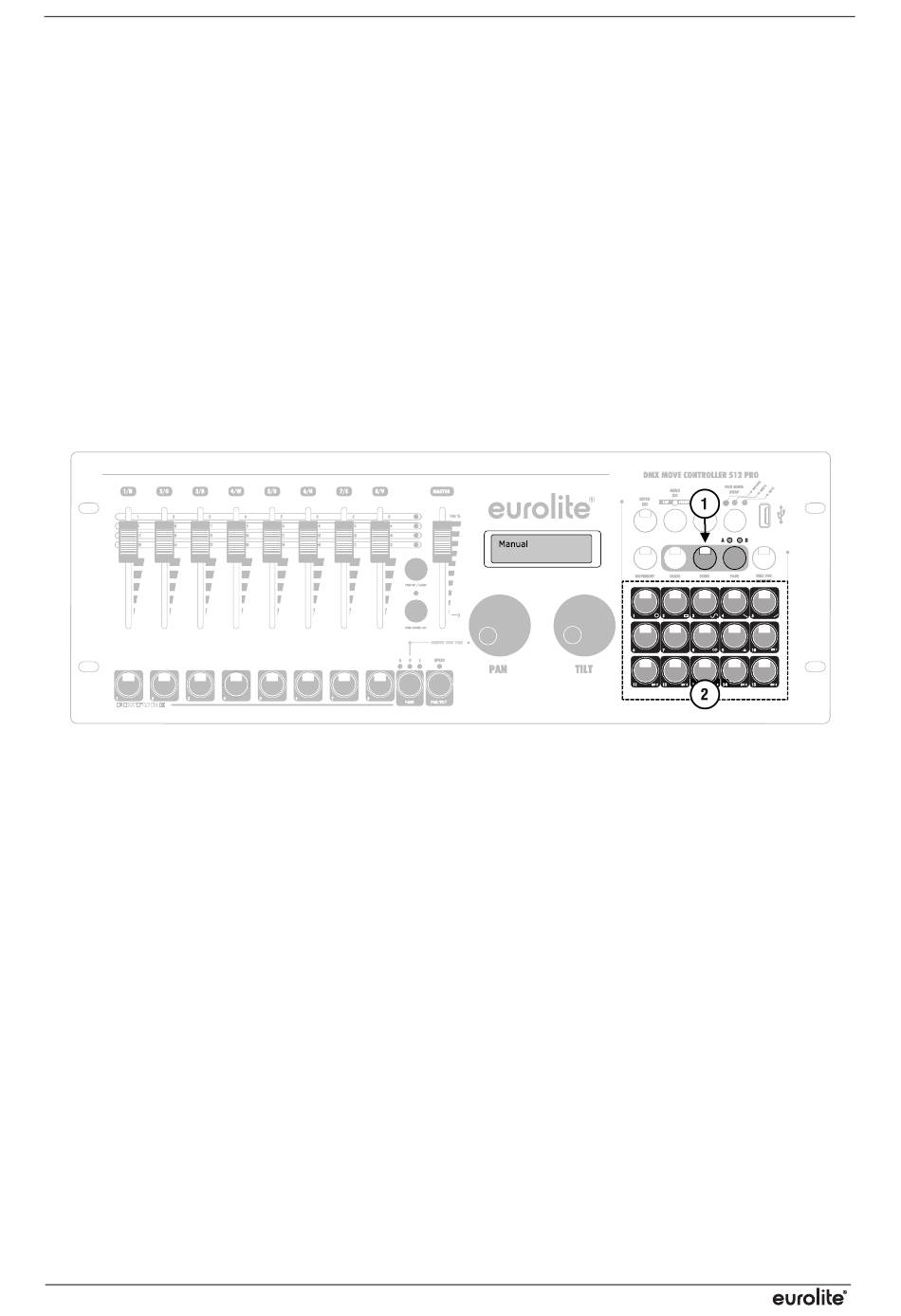

9.1 Calling Scenes

1
Press the SCENE button (button lights).
2
Call the desired scene with the number buttons at
the lower right corner (button lights).
●
If the button is pressed once again, the scene is
deselected (LED extinguishes).
●
If necessary, use the PAGE button to switch
between the memory banks 1-15 (LED A lights)
and 16-30 (LED B lights).
www.eurolite.de
3
If necessary, you can select several scenes
simultaneously.
55
