7.2 Adjusting Motions and Color Effects

The built-in effect generator allows creating 9 different patterns for pan and tilt movement of moving heads or scanners
as well as 7 additional color effects for LED light effect units. The effects can be saved together with other DMX values in
a scene.
1

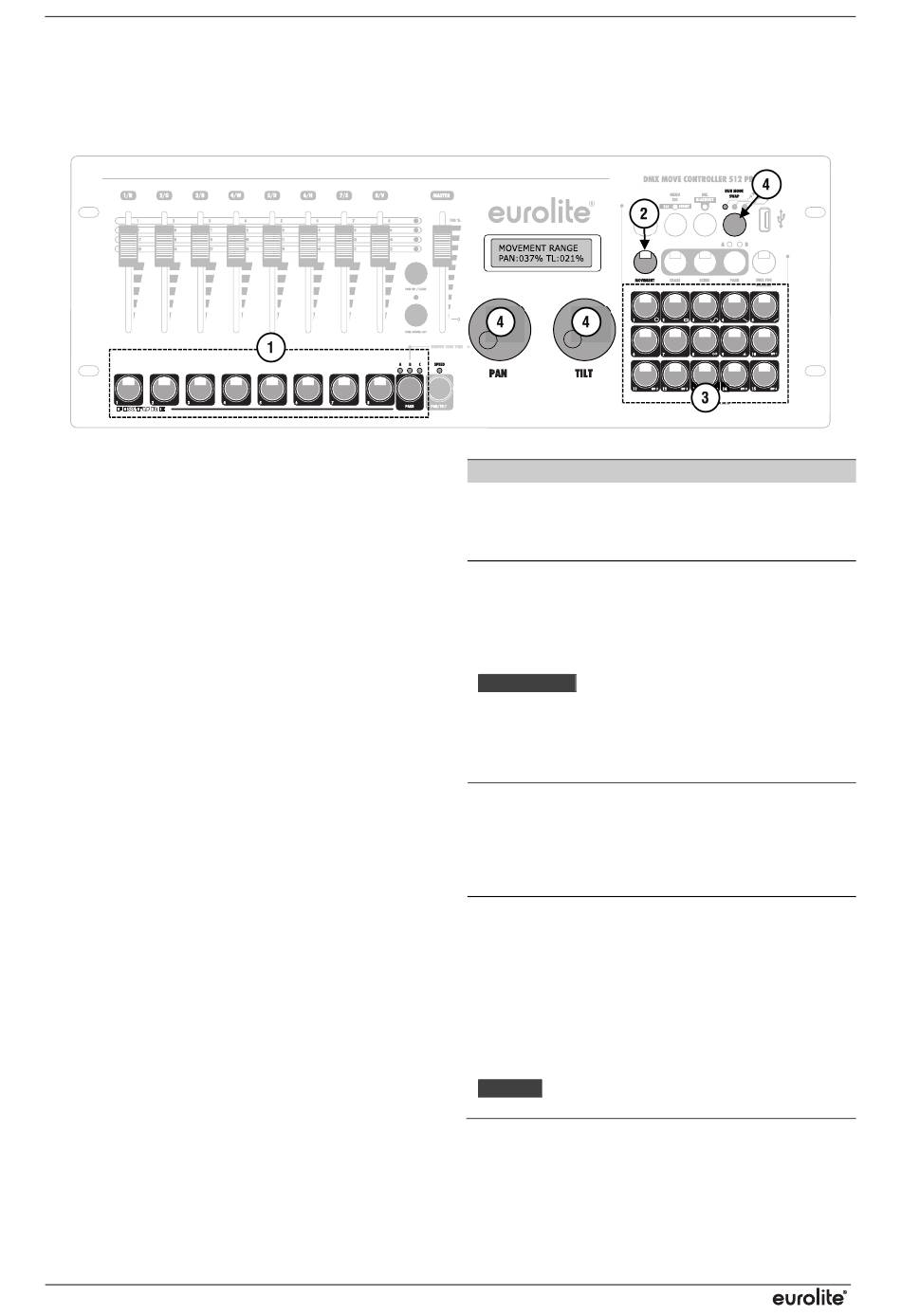

Use the FIXTURE buttons at the lower left to select
the fixtures to be assigned to an effect.
●
If necessary, use the PAGE button to switch
between the pages.
2
Call the effect mode with the MOVEMENT button.
The button lights.
3
Select the desired movement or color effect with the
number buttons at the lower right corner. The
corresponding button and the SPEED LED avobe
the PAN/TILT button light. The selected fixtures will
begin to perform the movement or color effect.
●
Number buttons 1-9: Create movements designed
for pan and tilt movement of moving heads or
scanners.
●
Number buttons 10-15: Create color effects for all
kinds of LED spotlights.
4
The parameters of the movements and color effects
can be edited and adapted to your particular
application. For
parameters are available and for color effects, the
running speed is adjustable.
●
Movements 1-9: Press the RUN MODE button to
switch between the parameters and adjust the
values with the PAN/TILT wheels. Please refer to
the right-hand side for detailed information on the
parameters.
●
Color effects 10-15: Use the TILT wheel to adjust
the running speed between 1 and 100 % (indication
"Movement Speed ").
www.eurolite.de
movements, a number
Overview of all parameters
Movement Range:
Here you can define for pan and tilt separately, how
large the movement radius of the moving heads
should be (1 to 100%).
Movement Offset:
Here you can enter the midpoint of the pan/tilt
movement. Would you like to see the exact midpoint
without spot movement, then set the movement radius
initially to 0, select your midpoint, and then enter the
desired radius.
EXAMPLE
effects. Color effects can therefore only be produced,
when the corresponding colors are called via faders.
The motion effects will initially overwrite the manually
entered position. If, however, a position is again called
up, it will overwrite the motion effect.
Movement Speed:
Here you can enter the running speed of a moving
of head for one step of the movement (between 1 and
100 %). A lower value may lead to erratic movements
of the moving head as the fixture cannot implement
the speed adjusted.
Delay Level:
By setting a delay time for the operation of several
moving heads, you can create waves or other effects.
When set to 0, all moving heads will run in sync. From
the value 1 the effect will be delayed by a full step, 2
will delay half a step, 3 will delay one-third step, until
finally 25 will delay the fixtures by 1/25 step. A high
value is not useful for the operation of a small number
of fixtures, however, with a large number of fixtures
you can achieve great effects.
It is necessary to shortly switch the effect
NOTE
off and on again for the changes made to take effect.
51
Manual entries are dominant over
