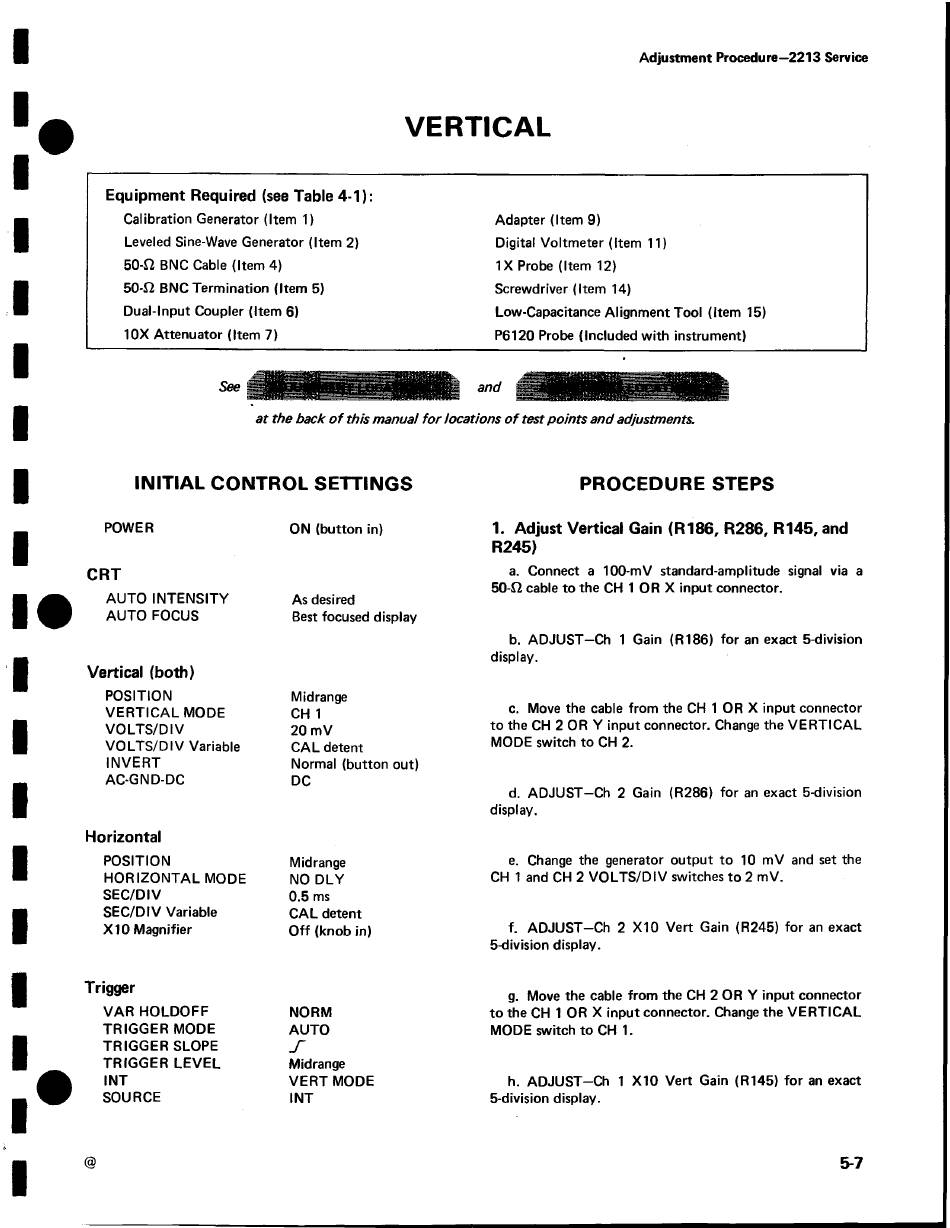

Vertical; Adjust Vertical G A In - Tektronix 2213 Instruction Manual

E q u ip m en t Required (see Table 4 -1 ):
Calibration Generator (Item 1)
Leveled Sine-Wave Generator (Item 2)
50-J2 BNC Cable (Item 4)
5(M2 BNC Termination (Item 5)
Dual-Input Coupler (Item 6)
10X Attenuator (Item 7)
a t the back o f th is m anual fo r locations o f test p o in ts and adjustments.
INITIAL CONTROL SETTINGS
POWER
C R T
AUTO INTENSITY
AUTO FOCUS
V ertical (bo th )
POSITION
VER TICAL MODE
VO LTS/DIV
VO LTS/DIV Variable
INVERT
AC-GND-DC
H orizo n tal
POSITION
HORIZONTAL MODE
SEC/DIV
SEC/DIV Variable
X10 Magnifier
Trigger
VAR HOLDOFF
TRIGGER MODE
TRIGGER SLOPE
TRIGGER LEVEL
I NT
SOURCE
@

VERTICAL

ON (button in)
As desired
Best focused display
Midrange
CH 1
20 mV
CAL detent
Normal (button out)
DC
Midrange
NO DLY
0.5 ms
CAL detent
O ff (knob in)
NORM
AUTO
J
Midrange
VERT MODE
I NT
Adjustment Procedure— 2213 Service
Adapter (Item 9)
Digital Voltm eter (Item 11)
IX Probe (Item 12)
Screwdriver (Item 14)
Low-Capacitance Alignm ent Tool (Item 15)
P6120 Probe (Included w ith instrument)
PROCEDURE STEPS
1. A d ju st V ertical Gain (R 1 8 6 , R 2 8 6 , R 1 4 5 , and
R 2 4 5 )
a. Connect a 100-mV standard-amplitude signal via a
5 0-ft cable to the CH 1 OR X input connector.
b. ADJUST— Ch 1 Gain (R186) fo r an exact 5-division
display.
c. Move the cable from the CH 1 OR X input connector
to the CH 2 OR Y input connector. Change the VER TICAL
MODE switch to CH 2.
d. ADJUST— Ch 2 Gain (R286) fo r an exact 5-division
display.
e. Change the generator output to 10 mV and set the
CH 1 and CH 2 VO LTS/DIV switches to 2 mV.
f. ADJUST—Ch 2 X10 Vert Gain (R245) fo r an exact
5-division display.
g. Move the cable from the CH 2 OR Y input connector
to the CH 1 OR X input connector. Change the VER TICAL
MODE switch to CH 1.
h. ADJUST— Ch 1 X10 Vert Gain (R145) fo r an exact
5-division display.
5-7
