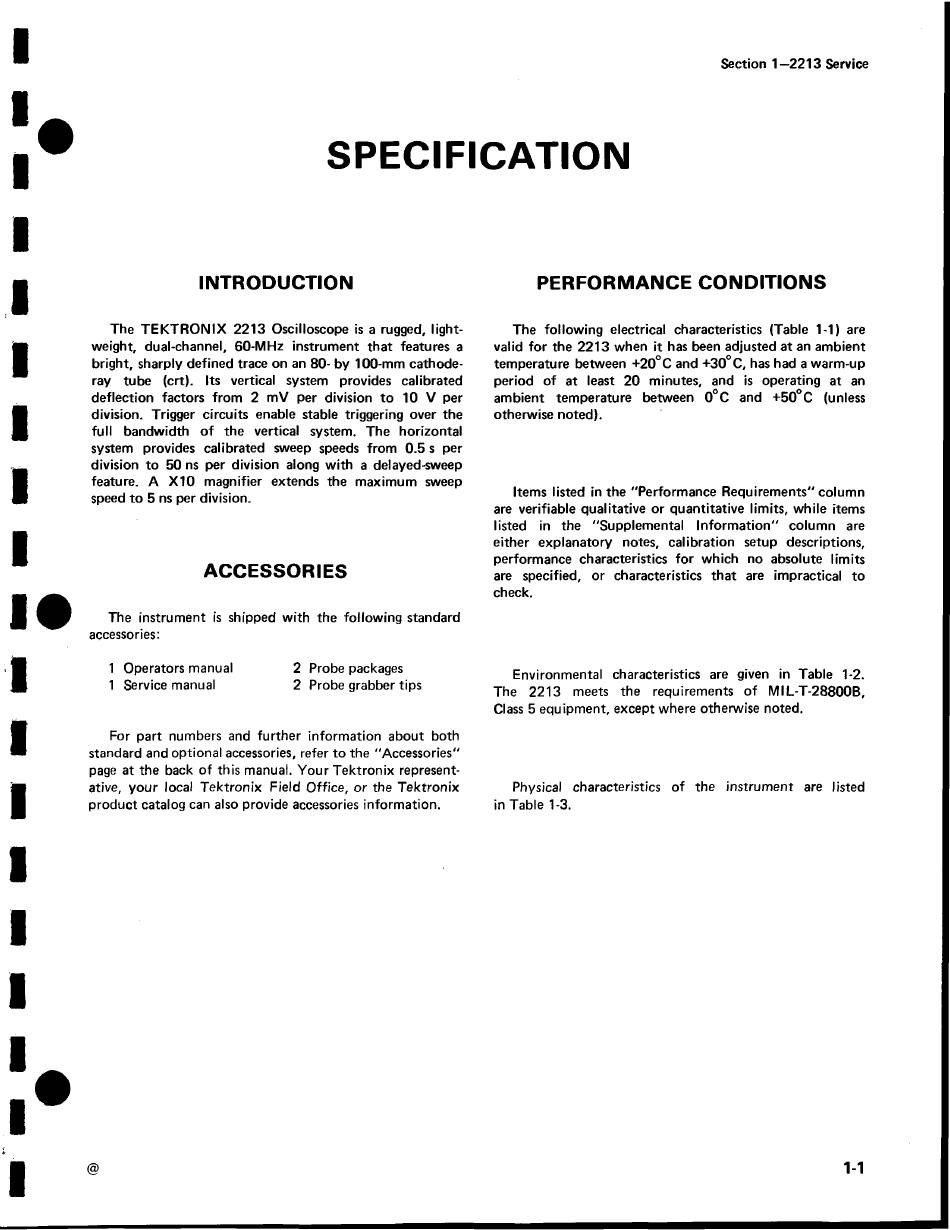

INTRODUCTION

The TEKTR O N IX 2213 Oscilloscope is a rugged, light­
weight, dual-channel, 60-MHz instrument that features a
bright, sharply defined trace on an 80- by 100-mm cathode-
ray tube (crt). Its vertical system provides calibrated
deflection factors from 2 mV per division to 10 V per
division. Trigger circuits enable stable triggering over the
fu ll bandwidth o f the vertical system. The horizontal
system provides calibrated sweep speeds from 0.5 s per
division to 50 ns per division along w ith a delayed-sweep
feature. A X10 magnifier extends the maximum sweep
speed to 5 ns per division.

ACCESSORIES

The instrument is shipped w ith the following standard
accessories:
1 Operators manual
1 Service manual
For part numbers and further information about both
standard and optional accessories, refer to the " Accessories"
page at the back o f this manual. Your Tektronix represent­
ative, your local Tektronix Field Office, or the Tektronix
product catalog can also provide accessories information.
@
SPECIFICATION
2 Probe packages
2 Probe grabber tips

PERFORMANCE CONDITIONS

The following electrical characteristics (Table 1-1) are
valid fo r the 2213 when it has been adjusted at an ambient
temperature between +20°C and +30°C, has had a warm-up
period o f at least 20 minutes, and is operating at an
ambient temperature between 0°C and +50°C (unless
otherwise noted).
Items listed in the "Performance Requirements" column
are verifiable qualitative or quantitative limits, while items
listed in the "Supplemental Inform ation" column are
either explanatory notes, calibration setup descriptions,
performance characteristics fo r which no absolute limits
are specified, or characteristics that are impractical to
check.
Environmental characteristics are given in Table 1-2.
The 2213 meets the requirements o f MIL-T-28800B,
Class 5 equipment, except where otherwise noted.
Physical characteristics o f the instrument are listed
in Table 1-3.
