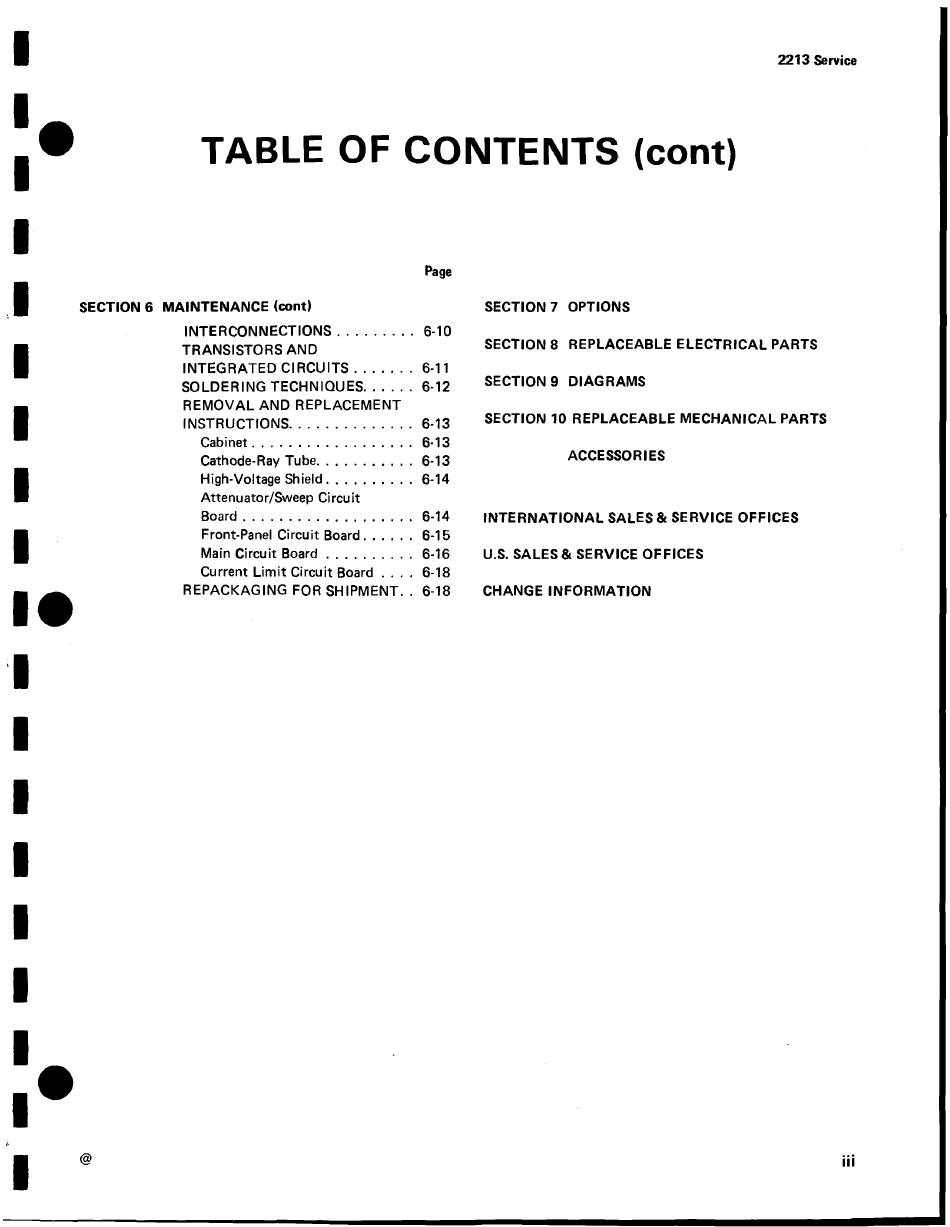

TABLE OF CONTENTS (cont)
SECTION 6 MAINTENANCE (cont)
INTERCONNECTIONS....................... 6-10
TRANSISTORS AND
INTEGRATED C IR C U IT S .................. 6-11
SOLDERING TECHNIQUES.............6-12
REMOVAL AND REPLACEMENT
INSTRUCTIONS.................................... 6-13
C abinet.............................................. 6-13
Cathode-Ray Tube.............................6-13
High-Voltage Shield.......................... 6-14
Attenuator/Sweep Circuit
B o a rd ................................................. 6-14
Front-Panel Circuit Board.............6-15
Main Circuit B o a rd .......................... 6-16
Current L im it Circuit Board . . . .
REPACKAGING FOR SHIPMENT. . 6-18
@
Page
SECTION 7 OPTIONS
SECTION 8 REPLACEABLE ELECTRICAL PARTS
SECTION 9 DIAGRAMS
SECTION 10 REPLACEABLE M ECHANICAL PARTS
ACCESSORIES
IN TER N ATIO N AL SALES & SERVICE OFFICES
U.S. SALES & SERVICE OFFICES
6-18
CHANGE INFORMATION
2213 Service
III
