Specification—2213 Service
Characteristics
Deflection Factor
Range
Accu racy
+20° C to +30° C
0°C to +50°C
Range o f VO LTS/DIV Variable
Control.
Step Response
Rise Time
Bandwidth
0°C to +40° C
20 mV to 10 V per Division
2 mV to 10 mV per Division
+40° C to +50° C
2 mV to 10 V per Division
Chop Mode Repetition Rate
Perform ance Requirement not checked in Service Manual.
1-2

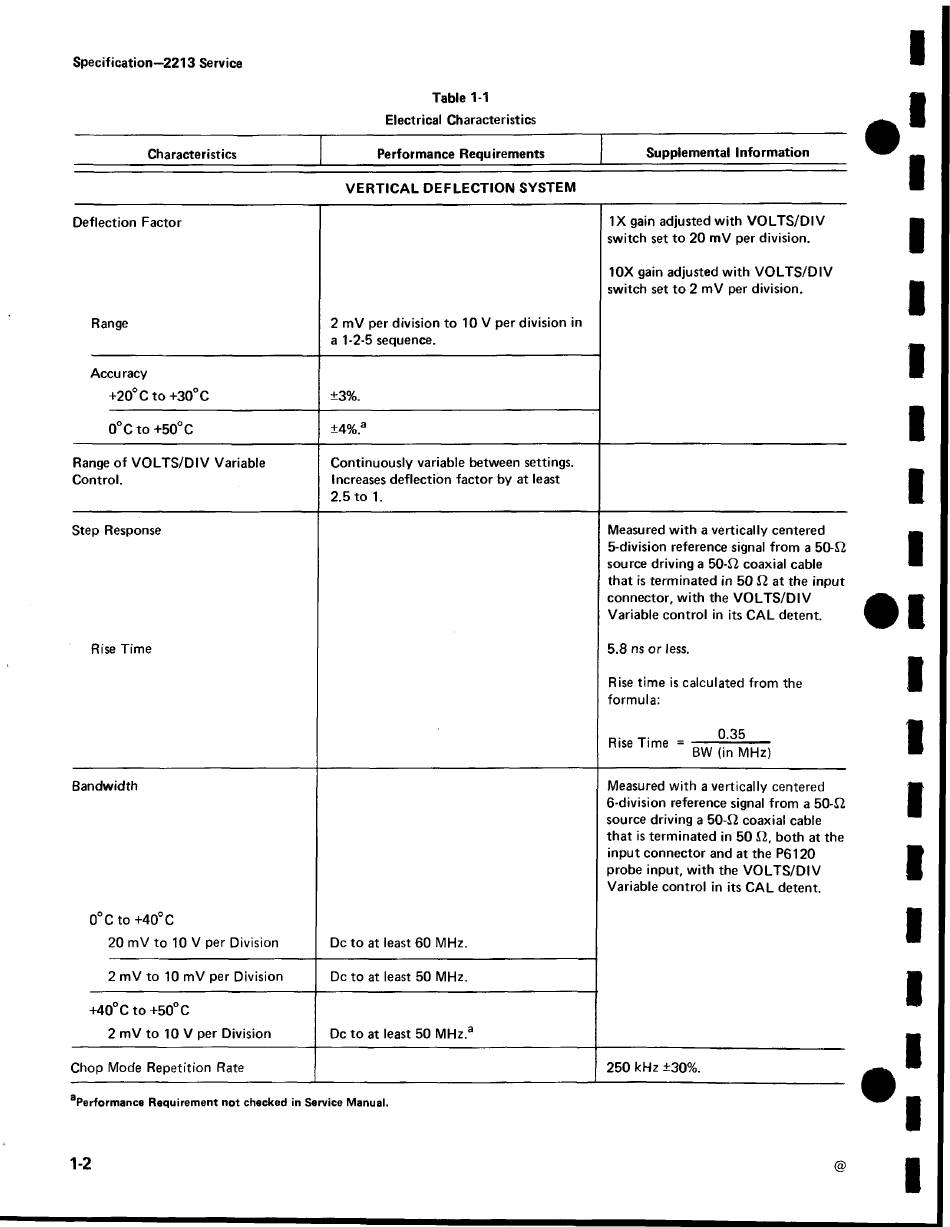

Table 1-1

Electrical Characteristics

Performance Requirements
VE R TIC A L DEFLECTION SYSTEM
2 mV per division to 10 V per division in
a 1-2-5 sequence.
±3%.
±4%.a
Continuously variable between settings.
Increases deflection factor by at least
2.5 to 1.
Dc to at least 60 MHz.
Dc to at least 50 MHz.
Dc to at least 50 MHz.a
Supplemental Inform ation
IX gain adjusted w ith VO LTS/DIV
switch set to 20 mV per division.
10X gain adjusted w ith VO LTS/DIV
switch set to 2 mV per division.
Measured w ith a vertically centered
5-division reference signal from a 50-12
source driving a 50-12 coaxial cable
that is terminated in 50 12 at the input
connector, w ith the VO LTS/DIV
Variable control in its CAL detent.
5.8 ns or less.
Rise time is calculated from the
formula:
- 0.35
Rise Time = ■ — :—
ttt
BW (in MHz)
Measured w ith a vertically centered
6-division reference signal from a 50-12
source driving a 50-12 coaxial cable
that is terminated in 50 12, both at the
input connector and at the P6120
probe input, w ith the VO LTS/DIV
Variable control in its CAL detent.
250 kHz ±30%.
