Tektronix 2213 Instruction Manual page 197

221 3 Service
A

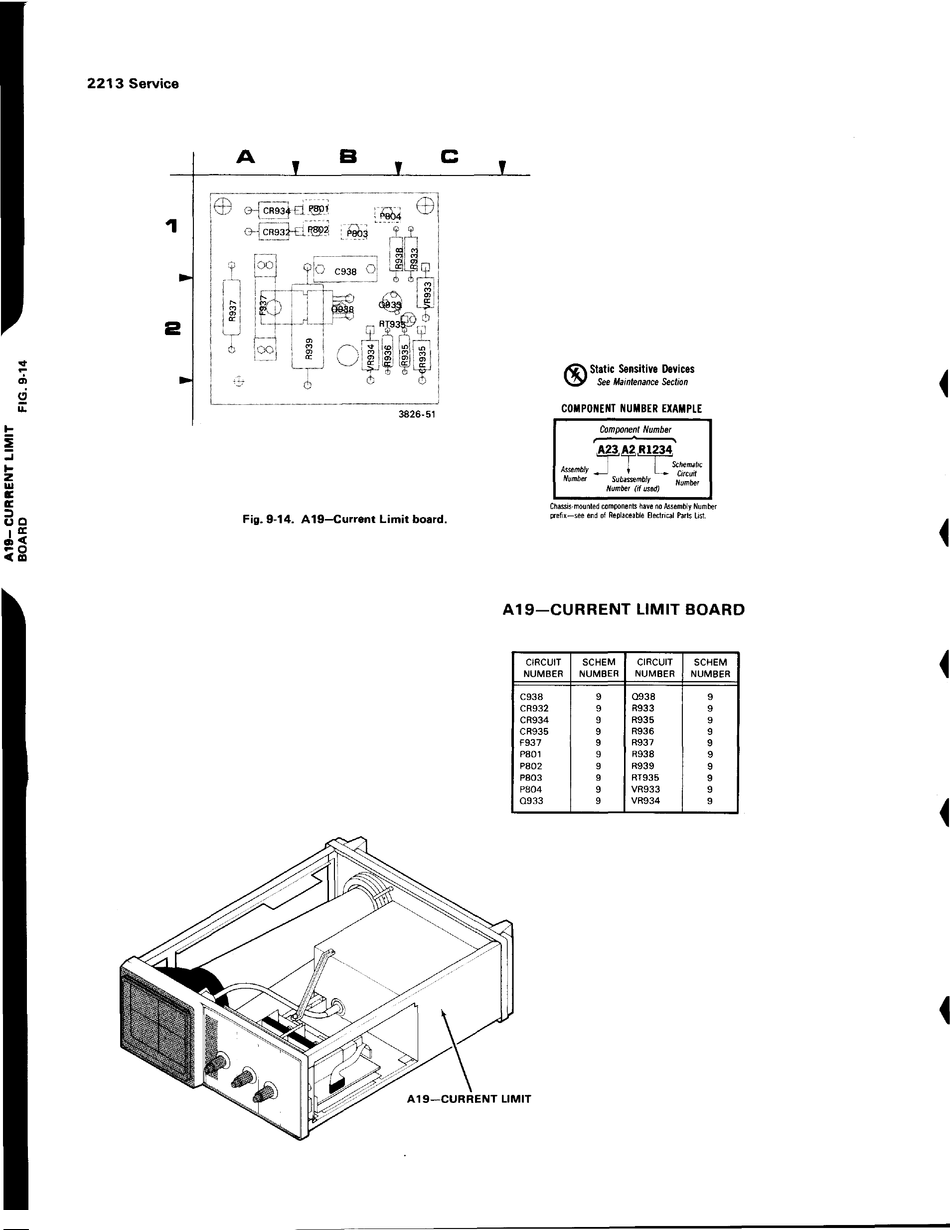

Fig. 9-14. A 1 9 —Current Lim it board.
C
1 I
3826-51
1
Static Sensitive Devices
See Maintenance Section
COMPONENT NUMBER EXAMPLE
Component Number
A23A2R1234
J T L
Schematic
Assembly
Number
Subassembly
Number
Number ( if used)
Chassis mounted components have no Assembly Number
prefix—see end of Replaceable Electrical Parts List.
A 1 9 —CURRENT LIMIT BOARD
CIRCUIT SCHEM CIRCUIT
NUMBER NUMBER NUMBER
C938 9 Q938
CR932 9 R933
CR934 9 R935
CR935 9 R936
F937 9 R937
P801 9 R938
P802 9 R939
P803 9 RT935
P804 9 VR933
Q933 9 VR934
Circuit
SCHEM
NUMBER
9
9
9
9
9
9
9
9
9
9
i
i
i
i
i
