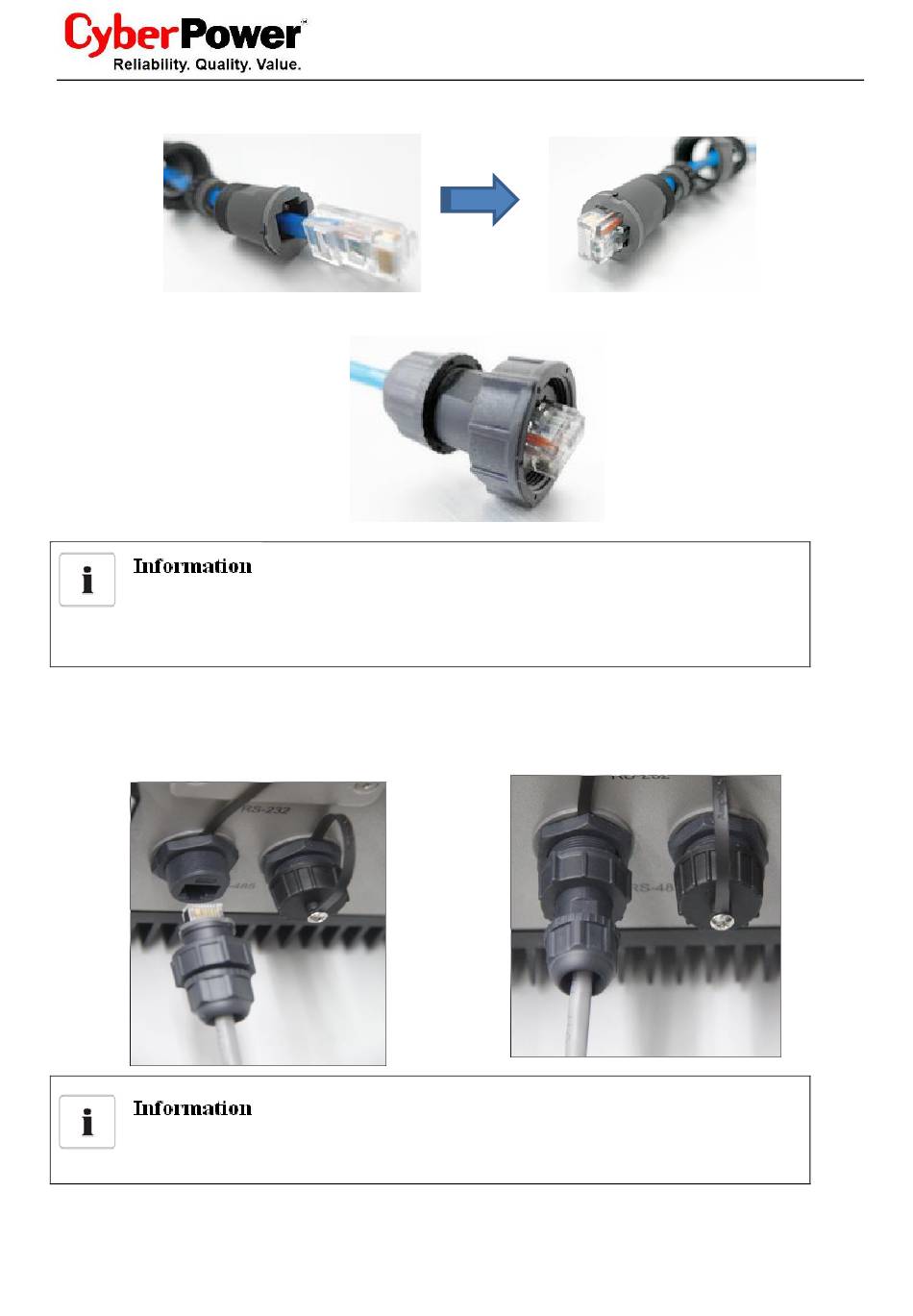

To crimp cable on RJ45 crystal connector then push the connector into water-proof plug.
6.
To seal the cable by tightening the end screw of cable gland.
Before you connect the RJ45 crystal connector to the inverter, we are recommending you use the
professional tool to check whether the cable is well fixed and working.
7.
Please open the RJ45 protection cover of the RJ45 socket on inverter and connect the RJ45 crystal
connector in the inverter port.
8.
To tighten the front screw of RJ45 plug onto the socket for water-proof.
Pull cables outwards to confirm whether the installation firm or not.
