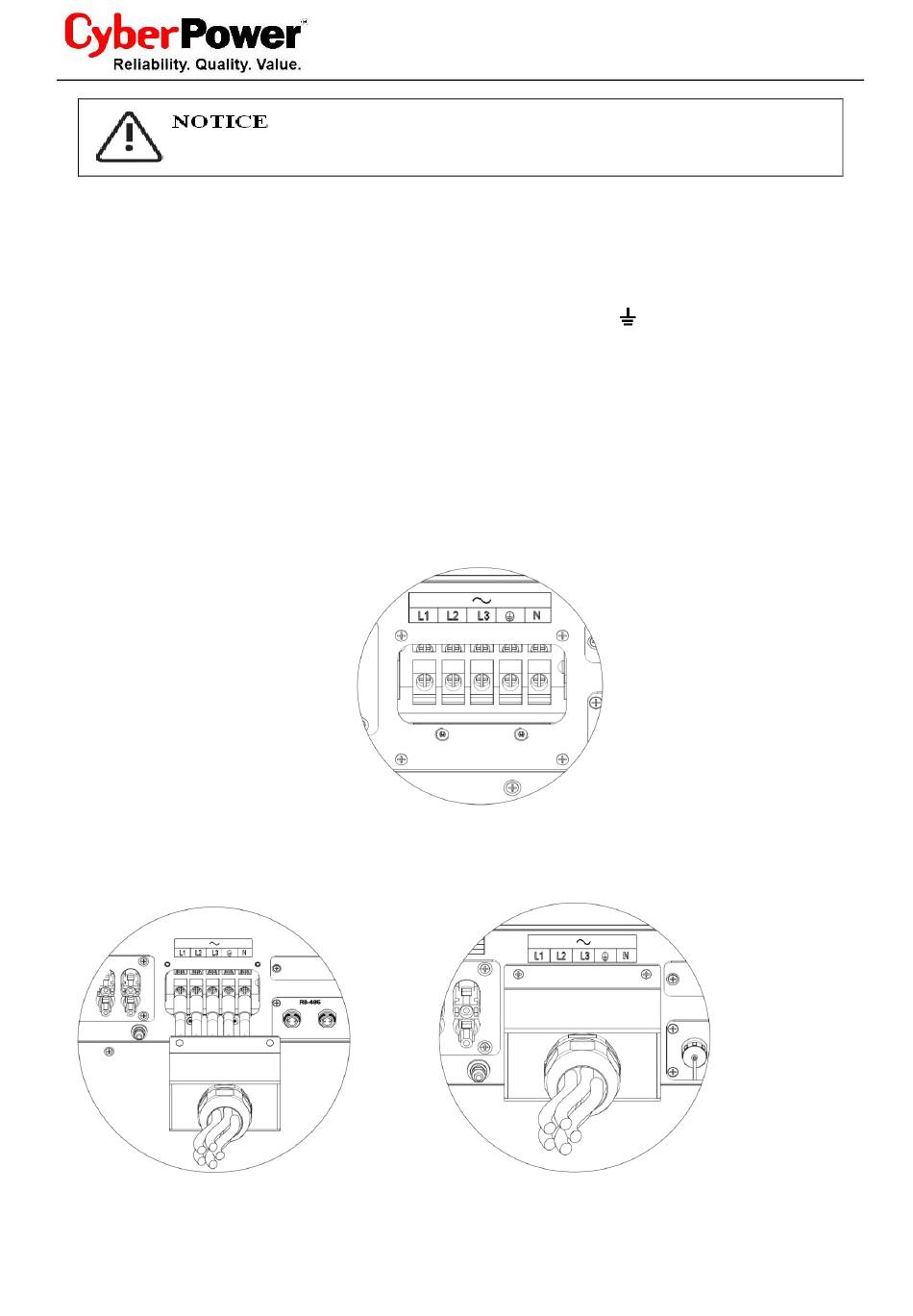

There are two types of AC connector for CPS Mini Central series inverters. Please follow the instructions
corresponding to the parts we offer.
AC terminal :
1)
The AC side terminals of the inverter are like the following figure, it is clear to confirm that 'L1, L2, L3'
represents three live line output, 'N' represents neutral line and
CSPV40000ETL have no 'N' terminal. See Fig 5.10.
Following diagram illustrate the step of installation for AC connection with CSPV30000ETL and CSPV33000ETL.
The similar step can be applied CSPV40000ETL, except the cable no is 4 instead of 5 because there is no 'N'
required.
2)
Connect standard cables into relevant terminals.
The cables should be put through the protection shell,
Following with tighten the ring terminal to AC terminal block shown as figure below.
3)
Fasten the protection shell onto the bottom of the inverter, make sure the four screws are tightened, the
completed appearance is like the below figure. See Fig 5.12
User Manual
Please do not use single-core wire cable.
AC Terminal of CSPV30000ETL/CSPV33000ETL
Fig 5.10
Fig 5.11
22 / 54
is grounding line. Note that,
then to press the ring terminal onto the AC cable.
See Fig 5.11
Fig 5.12
